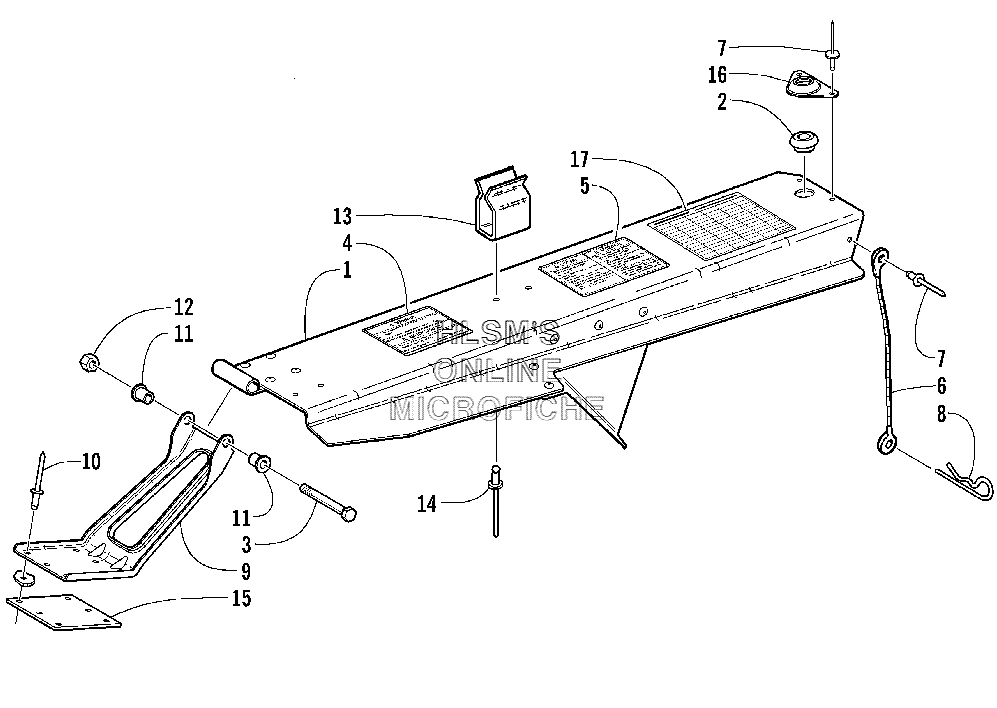

BELT GUARD ASSEMBLY для Arctic Cat BEARCAT WIDE TRACK (USA) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    0707-436 GUARD, BELT (INC. 2, TWO NO. 7, AND 16)
    GUARD, BELT (INC. 2, TWO NO. 7, AND 16)
  • 2
    0607-549 BUSHING, BELT GUARD
    BUSHING, BELT GUARD
  • 3
    8002-050 SCREW, CAP
    SCREW, CAP
  • 4
    1611-565 DECAL, WARNING
    DECAL, WARNING
  • 5
    1611-582 DECAL, CAUTION, JETTING/STORAGE
    DECAL, CAUTION, JETTING/STORAGE
  • 6
    0607-447 CABLE
    CABLE
  • 7
    8060-504 RIVET
    RIVET
  • 8
    0605-283 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 9
    0616-658 BRACKET, MOUNTING, GUARD
    BRACKET, MOUNTING, GUARD
  • 10
    8060-708 RIVET
    RIVET
  • 11
    0607-094 INSERT, HINGE
    INSERT, HINGE
  • 12
    8040-366 NUT, LOCK
    NUT, LOCK
  • 13
    0636-659 HOLDER, DRIVE BELT (INC. 14)
    HOLDER, DRIVE BELT (INC. 14)
  • 14
    8060-704 RIVET
    RIVET
  • 15
    0616-345 PLATE, BACKING
    PLATE, BACKING
  • 16
    0607-550 PLATE, BUSHING, BELT GUARD
    PLATE, BUSHING, BELT GUARD
  • 17
    3611-941 DECAL, JET CHART
    DECAL, JET CHART
