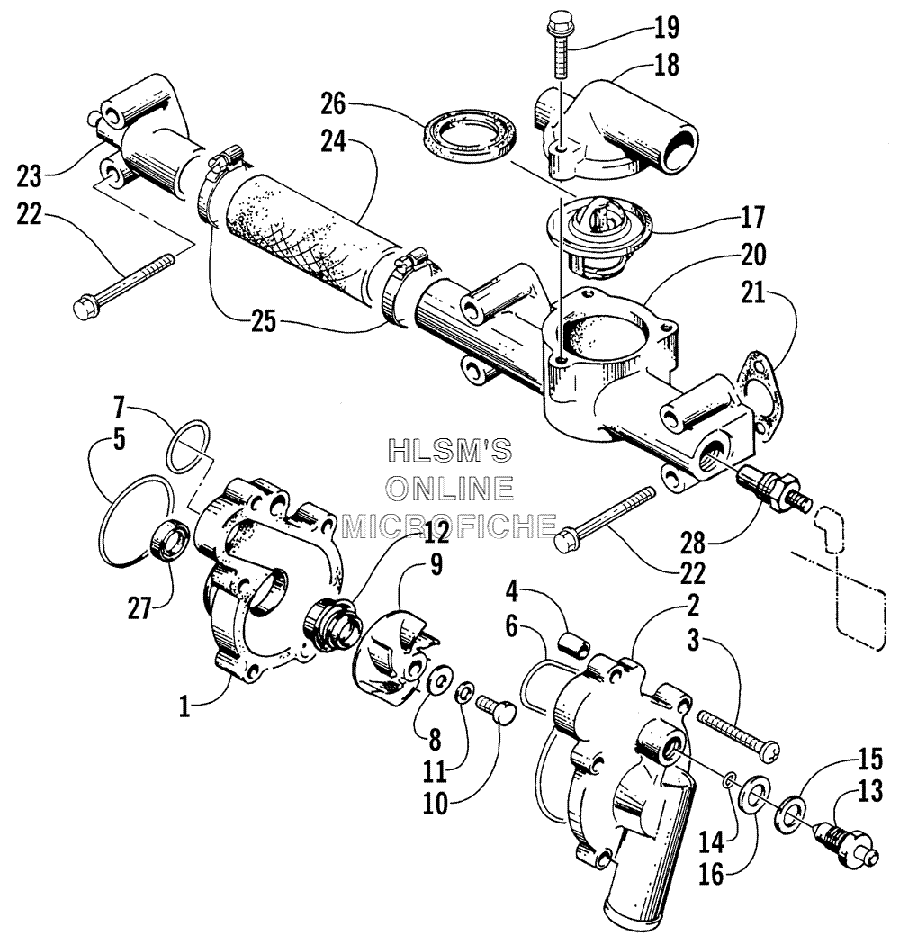

WATER PUMP/WATER MANIFOLD для Arctic Cat ZRT 800 (Green) - 2000 года выпуска`
-
№АртикулНазвание
-
13004-181 CASECASE
-
23004-182 COVERCOVER
-
33004-508 SCREW, MACHINESCREW, MACHINE
-
43002-012 PINPIN
-
53005-303 O-RING, CASEO-RING, CASE
-
63004-183 O-RING, COVERO-RING, COVER
-
73004-521 O-RING, WATER INLETO-RING, WATER INLET
-
83003-432 WASHERWASHER
-
93004-184 IMPELLERIMPELLER
-
103003-426 SCREW, CAPSCREW, CAP
-
113003-431 WASHERWASHER
-
123402-360 SEALSEAL
-
133003-618 DRAIN, WATERDRAIN, WATER
-
143005-226 O-RING, WATER DRAINO-RING, WATER DRAIN
-
153004-472 WASHER, LOCKWASHER, LOCK
-
163004-417 WASHERWASHER
-
173004-509 THERMOSTATTHERMOSTAT
-
183003-924 CAPCAP
-
193004-376 SCREW, CAPSCREW, CAP
-
203004-759 MANIFOLDMANIFOLD
-
213004-260 GASKETGASKET
-
223004-427 SCREW, CAPSCREW, CAP
-
233004-214 MANIFOLDMANIFOLD
-
243004-187 HOSEHOSE
-
253004-786 CLAMPCLAMP
-
263003-495 SEAL, THERMOSTATSEAL, THERMOSTAT
-
273004-760 SEALSEAL
-
280620-049 SENDING UNIT, WATER TEMPERATURESENDING UNIT, WATER TEMPERATURE
