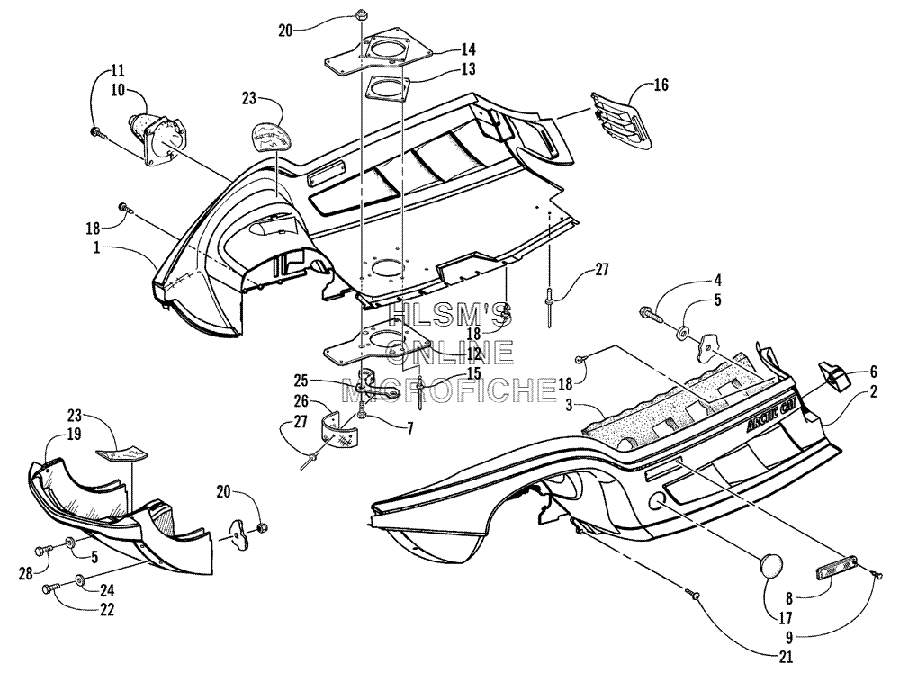

BELLY PAN AND FRONT BUMPER ASSY. для Arctic Cat ZRT 600 (Green) - 2000 года выпуска`
-
№АртикулНазвание
-
10716-774 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
20716-775 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
30617-301 FOAMFOAM
-
40623-647 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
50623-184 WASHERWASHER
-
61606-448 SUPPORT, BELLY PAN (RIGHT)SUPPORT, BELLY PAN (RIGHT)
-
61606-449 SUPPORT, BELLY PAN (LEFT)SUPPORT, BELLY PAN (LEFT)
-
78002-040 SCREW, CAPSCREW, CAP
-
80606-526 REFLECTOR (FRONT) (YELLOW)REFLECTOR (FRONT) (YELLOW)
-
90623-269 CLIP, RETAININGCLIP, RETAINING
-
100605-332 BOOT, STEERING (RIGHT)BOOT, STEERING (RIGHT)
-
100605-409 BOOT, STEERING (LEFT)BOOT, STEERING (LEFT)
-
110623-564 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
121612-063 SHIELD, HEAT, OUTER BELLY PANSHIELD, HEAT, OUTER BELLY PAN
-
130612-890 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
141612-064 SHIELD, HEAT, INNER BELLY PANSHIELD, HEAT, INNER BELLY PAN
-
158060-510 RIVETRIVET
-
161606-044 LOUVER, AIR, INTAKE (RIGHT)LOUVER, AIR, INTAKE (RIGHT)
-
161606-045 LOUVER, AIR, INTAKE (LEFT)LOUVER, AIR, INTAKE (LEFT)
-
170623-600 PLUG, BELLY PANPLUG, BELLY PAN
-
180623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
191606-326 BUMPER (FRONT)BUMPER (FRONT)
-
208040-366 NUT, LOCKNUT, LOCK
-
210623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
228002-041 SCREW, CAPSCREW, CAP
-
230619-206 TAPE, FOILTAPE, FOIL
-
248050-222 WASHERWASHER
-
251612-065 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
261612-067 FLAP, EXHAUST DEFLECTORFLAP, EXHAUST DEFLECTOR
-
278061-508 RIVETRIVET
-
288002-044 SCREW, CAPSCREW, CAP
