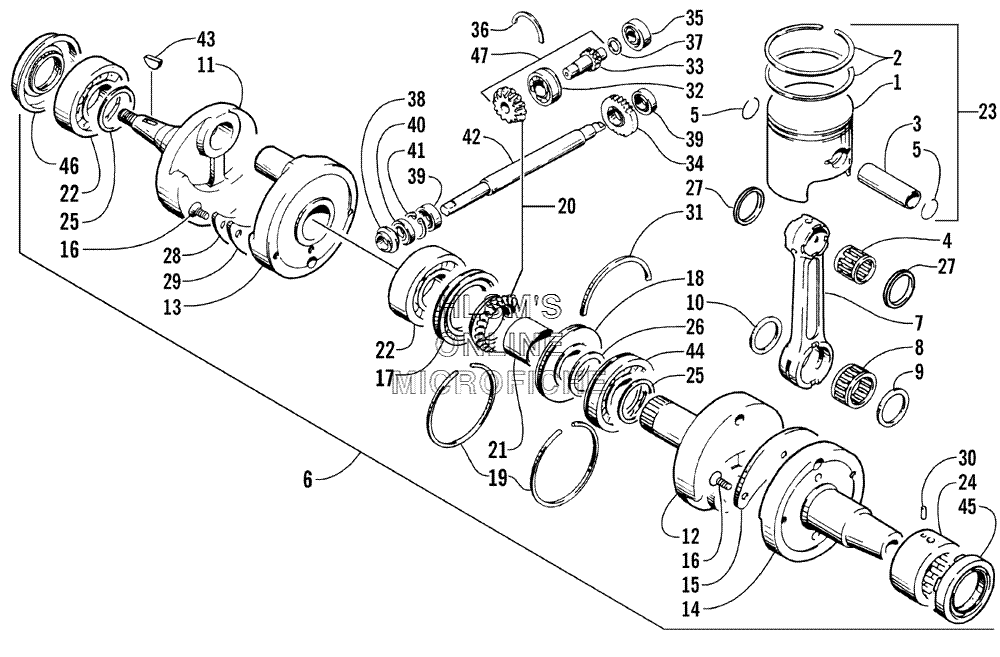

PISTON AND CRANKSHAFT для Arctic Cat ZR 700 (Black) - 2000 года выпуска
-
№АртикулНазвание
-
13005-382 PISTONPISTON
-
23003-822 RING SET, PISTONRING SET, PISTON
-
33008-482 PIN, PISTONPIN, PISTON
-
43003-433 BEARING, PISTONBEARING, PISTON
-
53003-439 CIRCLIP, PISTON PINCIRCLIP, PISTON PIN
-
63005-632 CRANKSHAFT ASSEMBLY (INC. 7-22 AND 24-27)CRANKSHAFT ASSEMBLY (INC. 7-22 AND 24-27)
-
73005-444 . ROD. ROD
-
83003-343 . BEARING. BEARING
-
93003-430 . WASHER, CRANK PIN - LEFT. WASHER, CRANK PIN - LEFT
-
103402-383 . WASHER, CRANK PIN - RIGHT. WASHER, CRANK PIN - RIGHT
-
113005-516 . CRANKSHAFT - RIGHT. CRANKSHAFT - RIGHT
-
123003-448 . CRANKSHAFT - MIDDLE. CRANKSHAFT - MIDDLE
-
133003-824 . WHEEL, CRANK. WHEEL, CRANK
-
143003-825 . CRANKSHAFT - LEFT. CRANKSHAFT - LEFT
-
153003-451 . BALANCER, LEFT. BALANCER, LEFT
-
163004-372 . SCREW. SCREW
-
173003-454 . RACE, MIDDLE SEAL - RIGHT. RACE, MIDDLE SEAL - RIGHT
-
183003-606 . RACE, MIDDLE SEAL - LEFT. RACE, MIDDLE SEAL - LEFT
-
193003-453 . RING. RING
-
203003-826 . GEAR SET - OIL PUMP. GEAR SET - OIL PUMP
-
213003-353 . SPACER, CRANKSHAFT. SPACER, CRANKSHAFT
-
223008-421 . BEARING. BEARING
-
233004-325 PISTON KIT (INC. 1,2,5)PISTON KIT (INC. 1,2,5)
-
243003-805 . BEARING, CRANKSHAFT - LEFT. BEARING, CRANKSHAFT - LEFT
-
253008-495 . WASHER, BEARING. WASHER, BEARING
-
263003-609 . WASHER, GEAR T:1.2 MM. WASHER, GEAR T:1.2 MM
-
263003-610 . WASHER, GEAR T:0.9 MM. WASHER, GEAR T:0.9 MM
-
263003-611 . WASHER, GEAR T:0.95 MM. WASHER, GEAR T:0.95 MM
-
263003-607 . WASHER, GEAR T:1.0 MM. WASHER, GEAR T:1.0 MM
-
263003-612 . WASHER, GEAR T:1.05 MM. WASHER, GEAR T:1.05 MM
-
263003-608 . WASHER, GEAR T:1.1 MM. WASHER, GEAR T:1.1 MM
-
263003-613 . WASHER, GEAR T:1.15 MM. WASHER, GEAR T:1.15 MM
-
273005-209 . WASHER. WASHER
-
283005-633 . BALANCER, RIGHT. BALANCER, RIGHT
-
293005-634 . SPACER, CRANKSHAFT. SPACER, CRANKSHAFT
-
303003-658 PINPIN
-
313003-359 C-RINGC-RING
-
323003-614 BEARING, DRIVEN SHAFTBEARING, DRIVEN SHAFT
-
333003-462 SHAFT, DRIVEN - OIL PUMPSHAFT, DRIVEN - OIL PUMP
-
343003-463 GEAR, DRIVEN - OIL PUMPGEAR, DRIVEN - OIL PUMP
-
353003-615 BEARING, DRIVEN SHAFTBEARING, DRIVEN SHAFT
-
363003-359 C-RINGC-RING
-
373402-425 SHIM, OIL PUMP SHAFT T: 1.0 MMSHIM, OIL PUMP SHAFT T: 1.0 MM
-
373003-417 SHIM, OIL PUMP SHAFT T: 1.1 MMSHIM, OIL PUMP SHAFT T: 1.1 MM
-
373003-418 SHIM, OIL PUMP SHAFT T: 1.2 MMSHIM, OIL PUMP SHAFT T: 1.2 MM
-
373005-517 SHIM, OIL PUMP SHAFT T: 1.3 MMSHIM, OIL PUMP SHAFT T: 1.3 MM
-
373003-420 SHIM, OIL PUMP SHAFT T: 1.4 MMSHIM, OIL PUMP SHAFT T: 1.4 MM
-
373402-426 SHIM, OIL PUMP SHAFT T: 1.5 MMSHIM, OIL PUMP SHAFT T: 1.5 MM
-
373003-422 SHIM, OIL PUMP SHAFT T: 1.6 MMSHIM, OIL PUMP SHAFT T: 1.6 MM
-
373003-423 SHIM, OIL PUMP SHAFT T: 1.7 MMSHIM, OIL PUMP SHAFT T: 1.7 MM
-
373003-424 SHIM, OIL PUMP SHAFT T: 1.8 MMSHIM, OIL PUMP SHAFT T: 1.8 MM
-
373003-425 SHIM, OIL PUMP SHAFT T: 1.9 MMSHIM, OIL PUMP SHAFT T: 1.9 MM
-
383402-360 SEAL, WATER PUMPSEAL, WATER PUMP
-
393003-352 BEARING, SHAFT - WATER PUMPBEARING, SHAFT - WATER PUMP
-
403004-760 SEAL, OIL - WATER PUMPSEAL, OIL - WATER PUMP
-
413004-009 CIRCLIP, BEARING - WATER PUMPCIRCLIP, BEARING - WATER PUMP
-
423005-485 SHAFT, WATER PUMPSHAFT, WATER PUMP
-
433004-540 KEYKEY
-
443008-421 BEARING, DRIVEN SHAFTBEARING, DRIVEN SHAFT
-
453003-759 SEAL, OIL - LEFTSEAL, OIL - LEFT
-
463003-367 SEAL, OIL - RIGHTSEAL, OIL - RIGHT
-
473005-595 SHAFT, OIL PUMP - ASSEMBLY (INC. 20, 32 AND 33)SHAFT, OIL PUMP - ASSEMBLY (INC. 20, 32 AND 33)
