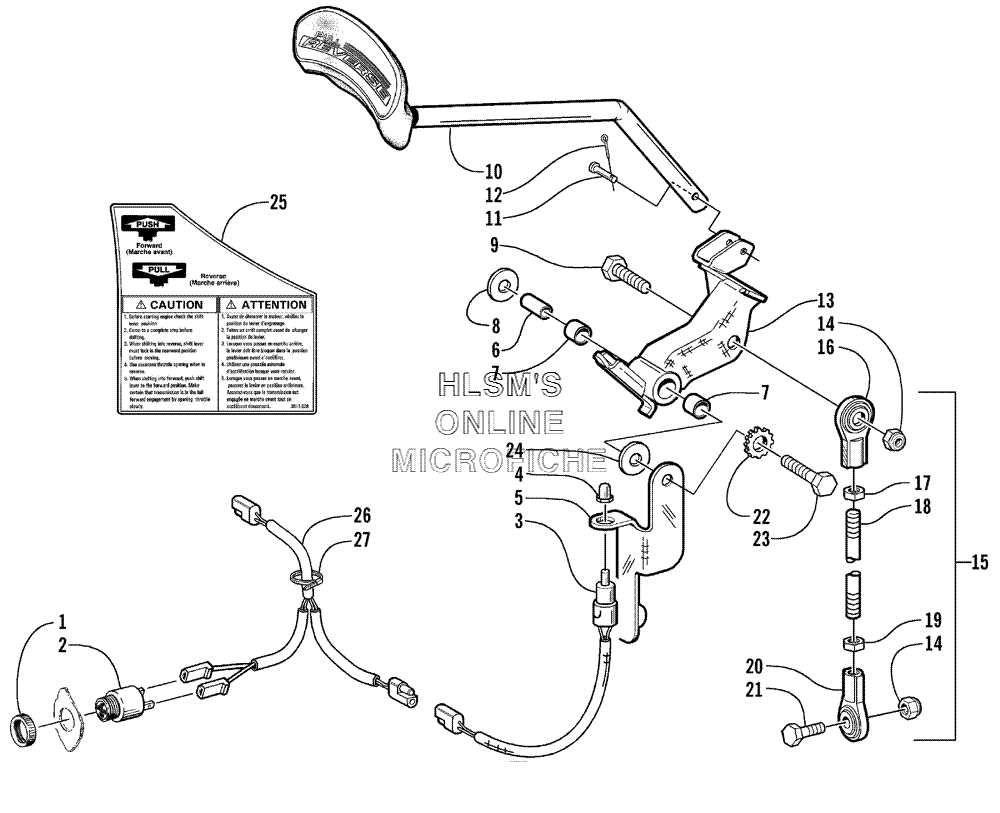

REVERSE SHIFT LEVER ASSEMBLY (LE-R) для Arctic Cat ZR 600 EFI - LE Reverse - 2000 года выпуска

  • №
    Артикул
    Название
  • -
    1639-005 REVERSE OPTIONAL KIT
    REVERSE OPTIONAL KIT
  • 1
    0630-017 RING, RETAINING
    RING, RETAINING
  • 2
    0630-010 ALARM, REVERSE
    ALARM, REVERSE
  • 3
    0630-011 SWITCH, ALARM
    SWITCH, ALARM
  • 4
    0630-013 BOOT, SWITCH
    BOOT, SWITCH
  • 5
    0602-986 BRACKET, REVERSE SWITCH
    BRACKET, REVERSE SWITCH
  • 6
    0602-853 AXLE
    AXLE
  • 7
    0602-844 BUSHING
    BUSHING
  • 8
    8050-252 WASHER
    WASHER
  • 9
    8002-137 SCREW, CAP
    SCREW, CAP
  • 10
    0602-978 LEVER
    LEVER
  • 11
    0623-641 PIN, CLEVIS
    PIN, CLEVIS
  • 12
    0117-868 PIN, COTTER
    PIN, COTTER
  • 13
    0702-349 SHIFT PIVOT
    SHIFT PIVOT
  • 14
    8040-426 NUT, LOCK
    NUT, LOCK
  • 15
    0702-347 LINKAGE, SHIFT - ASSEMBLY (INC. 16-20)
    LINKAGE, SHIFT - ASSEMBLY (INC. 16-20)
  • 16
    0602-305 . ROD END - LEFT
    . ROD END - LEFT
  • 17
    0623-260 . NUT, JAM - LEFT
    . NUT, JAM - LEFT
  • 18
    0602-982 . ROD, SHIFT LINKAGE
    . ROD, SHIFT LINKAGE
  • 19
    0123-144 . NUT, JAM - RIGHT
    . NUT, JAM - RIGHT
  • 20
    0602-322 . ROD END - RIGHT
    . ROD END - RIGHT
  • 21
    8002-132 SCREW, CAP
    SCREW, CAP
  • 22
    8053-242 WASHER, LOCK - EXTERNAL TOOTH
    WASHER, LOCK - EXTERNAL TOOTH
  • 23
    8002-140 SCREW, CAP
    SCREW, CAP
  • 24
    8050-247 WASHER
    WASHER
  • 25
    3611-026 DECAL, REVERSE
    DECAL, REVERSE
  • 25
    3611-364 DECAL, REVERSE
    DECAL, REVERSE
  • 25
    3611-580 DECAL, REVERSE
    DECAL, REVERSE
  • 26
    0686-120 HARNESS, WIRING - ALARM (INCLUDED IN KIT)
    HARNESS, WIRING - ALARM (INCLUDED IN KIT)
  • 27
    0123-788 CABLE TIE - 7 IN. (INCLUDED IN KIT)
    CABLE TIE - 7 IN. (INCLUDED IN KIT)
