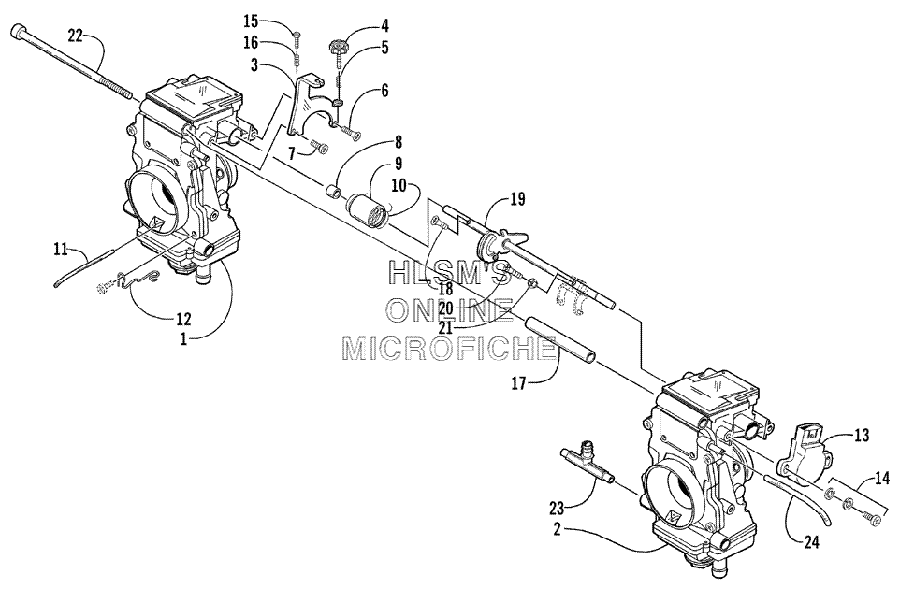

CARBURETOR - INTERNAL PARTS для Arctic Cat ZR 600 Blair Morgan Signature Edition - 2000 года выпуска

  • №
    Артикул
    Название
  • -
    1670-070 TM38-B279 COMPLETE CARBURETOR ASSEMBLY
    TM38-B279 COMPLETE CARBURETOR ASSEMBLY
  • 2
    6505-591 SCREW ASSEMBLY
    SCREW ASSEMBLY
  • 3
    6506-142 CAP, TOP
    CAP, TOP
  • 4
    6506-034 GASKET
    GASKET
  • 5
    6506-137 CAP, STARTER PLUNGER
    CAP, STARTER PLUNGER
  • 6
    6506-138 SPRING, STARTER PLUNGER
    SPRING, STARTER PLUNGER
  • 7
    6506-139 STARTER PLUNGER
    STARTER PLUNGER
  • 8
    6506-033 GASKET
    GASKET
  • 9
    6506-132 FUNNEL ASSEMBLY
    FUNNEL ASSEMBLY
  • 10
    6505-980 SCREW
    SCREW
  • 11
    6506-120 VALVE, THROTTLE CA 3.0
    VALVE, THROTTLE CA 3.0
  • 12
    6506-192 JET NEEDLE 9EGY1-57-3
    JET NEEDLE 9EGY1-57-3
  • 12
    6505-110 JET NEEDLE 9DH2-4 (5-9,000 FT ALT.)
    JET NEEDLE 9DH2-4 (5-9,000 FT ALT.)
  • 12
    6505-110 JET NEEDLE 9DH2-3 (OVER 9,000 FT ALT.)
    JET NEEDLE 9DH2-3 (OVER 9,000 FT ALT.)
  • 13
    6505-552 WASHER, E-CLIP
    WASHER, E-CLIP
  • 14
    6505-628 E-CLIP
    E-CLIP
  • 15
    6506-055 PLATE, JET NEEDLE RETAINING
    PLATE, JET NEEDLE RETAINING
  • 16
    6506-054 SCREW, RETAINING PLATE
    SCREW, RETAINING PLATE
  • 17
    6506-047 LEVER ASSEMBLY - LEFT
    LEVER ASSEMBLY - LEFT
  • 17
    6506-043 LEVER ASSEMBLY - RIGHT
    LEVER ASSEMBLY - RIGHT
  • 18
    6506-053 BUSHING, CLIP
    BUSHING, CLIP
  • 19
    6506-040 CLIP
    CLIP
  • 20
    6506-039 PLATE
    PLATE
  • 21
    6506-052 WASHER
    WASHER
  • 22
    6506-051 E-CLIP
    E-CLIP
  • 23
    6506-145 SCREW, FUEL MIXTURE 2.0
    SCREW, FUEL MIXTURE 2.0
  • 24
    6506-076 CAP, FUEL MIXTURE SCREW
    CAP, FUEL MIXTURE SCREW
  • 25
    6506-079 SPRING, FUEL MIXTURE SCREW
    SPRING, FUEL MIXTURE SCREW
  • 26
    6506-078 WASHER
    WASHER
  • 27
    6506-080 WASHER, RUBBER
    WASHER, RUBBER
  • 28
    6506-101 STARTER JET 135
    STARTER JET 135
  • 29
    6505-029 PILOT JET 35
    PILOT JET 35
  • 29
    6505-047 PILOT JET 40 (5-9,000 FT ALT.)
    PILOT JET 40 (5-9,000 FT ALT.)
  • 29
    6505-278 PILOT JET 45 (OVER 9,000 FT ALT.)
    PILOT JET 45 (OVER 9,000 FT ALT.)
  • 30
    6506-091 WASHER
    WASHER
  • 31
    6505-071 MAIN JET 350**
    MAIN JET 350**
  • 32
    6506-121 FLOAT ASSEMBLY 1.5
    FLOAT ASSEMBLY 1.5
  • 33
    6506-100 O-RING
    O-RING
  • 34
    6506-037 SCREW, FLOAT ARM
    SCREW, FLOAT ARM
  • 35
    6506-203 CHAMBER, FLOAT - ASSEMBLY - RIGHT
    CHAMBER, FLOAT - ASSEMBLY - RIGHT
  • 35
    6506-036 CHAMBER, FLOAT - ASSEMBLY - LEFT
    CHAMBER, FLOAT - ASSEMBLY - LEFT
  • 36
    6506-038 O-RING
    O-RING
  • 37
    6506-072 SCREW
    SCREW
  • 38
    6506-032 PLUG, DRAIN
    PLUG, DRAIN
  • 39
    6505-185 O-RING, DRAIN PLUG
    O-RING, DRAIN PLUG
