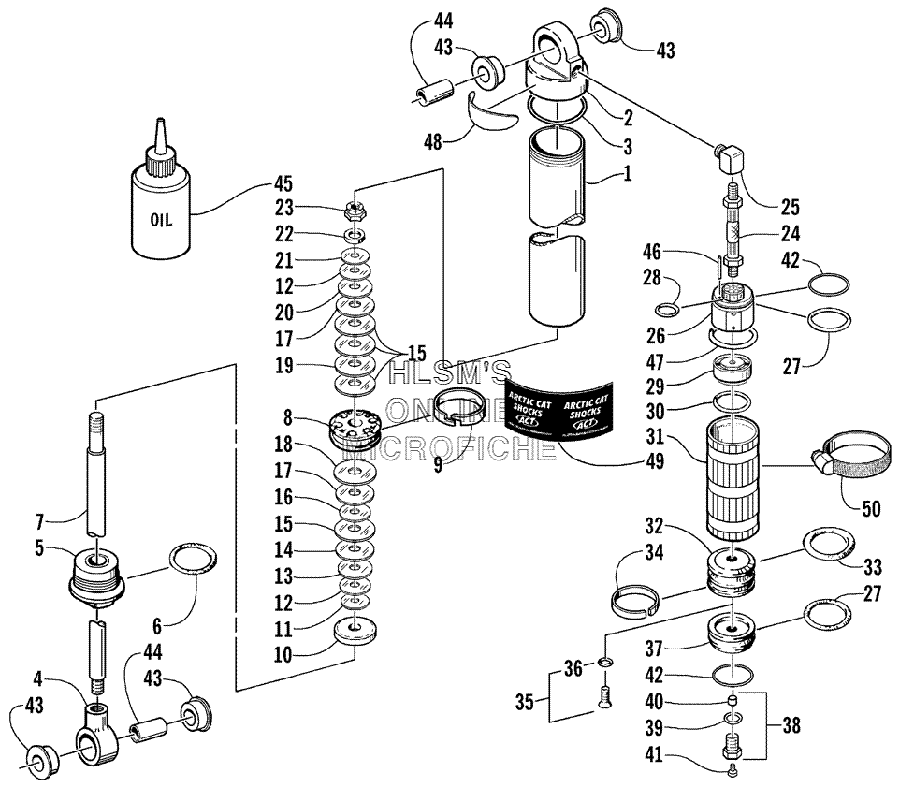

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat ZR 440 Sno Pro (USA) - 2000 года выпуска

  • №
    Артикул
    Название
  • -
    0704-472 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • 1
    1604-544 BODY, SHOCK
    BODY, SHOCK
  • 2
    0603-963 END CAP, SHOCK (INC. 3)
    END CAP, SHOCK (INC. 3)
  • 3
    1604-280 O-RING
    O-RING
  • 4
    0704-483 EYELET, SHOCK
    EYELET, SHOCK
  • 5
    0704-382 END CAP, SHOCK, ASSY. (INC 6)
    END CAP, SHOCK, ASSY. (INC 6)
  • 6
    1604-271 O-RING
    O-RING
  • 7
    1604-543 ROD, SHOCK
    ROD, SHOCK
  • 8
    1603-314 PISTON, 0.039 IN. ORIFICE
    PISTON, 0.039 IN. ORIFICE
  • 9
    1604-274 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 10
    1604-511 SPACER, SHAFT
    SPACER, SHAFT
  • 11
    1604-272 WASHER, TOP OUT
    WASHER, TOP OUT
  • 12
    1603-065 VALVE, 0.900 X 0.010 IN.
    VALVE, 0.900 X 0.010 IN.
  • 13
    1603-077 VALVE, 1.000 X 0.015 IN.
    VALVE, 1.000 X 0.015 IN.
  • 14
    1603-097 VALVE, 1.100 X 0.015 IN.
    VALVE, 1.100 X 0.015 IN.
  • 15
    1603-125 VALVE, 1.250 X 0.010 IN.
    VALVE, 1.250 X 0.010 IN.
  • 16
    1603-060 VALVE, 0.900 X 0.004 IN.
    VALVE, 0.900 X 0.004 IN.
  • 17
    1603-095 VALVE, 1.100 X 0.010 IN.
    VALVE, 1.100 X 0.010 IN.
  • 18
    1603-135 VALVE, 1.300 X 0.010 IN.
    VALVE, 1.300 X 0.010 IN.
  • 19
    1603-127 VALVE, 1.250 X 0.015 IN.
    VALVE, 1.250 X 0.015 IN.
  • 20
    1603-075 VALVE, 1.000 X 0.010 IN.
    VALVE, 1.000 X 0.010 IN.
  • 21
    1603-055 VALVE, 0.800 X 0.010 IN.
    VALVE, 0.800 X 0.010 IN.
  • 22
    1604-273 WASHER, BACKUP
    WASHER, BACKUP
  • 23
    0623-696 NUT, FLEX
    NUT, FLEX
  • 24
    1603-317 HOSE, RESERVOIR/SHOCK
    HOSE, RESERVOIR/SHOCK
  • 25
    0603-964 FITTING, ELBOW
    FITTING, ELBOW
  • 26
    0703-541 ADJUSTER, RESERVOIR, ASSY. (INC. ONE NO. 27 AND 28)
    ADJUSTER, RESERVOIR, ASSY. (INC. ONE NO. 27 AND 28)
  • 27
    0603-968 O-RING
    O-RING
  • 28
    0603-975 O-RING
    O-RING
  • 29
    0703-542 RELIEF, OIL, 2, PORT ASSY.
    RELIEF, OIL, 2, PORT ASSY.
  • 30
    0603-984 RETAINER
    RETAINER
  • 31
    1603-315 BODY, RESERVOIR
    BODY, RESERVOIR
  • 32
    0603-986 PISTON, FLOATING, RESERVOIR (INC. 33)
    PISTON, FLOATING, RESERVOIR (INC. 33)
  • 33
    0603-987 O-RING
    O-RING
  • 34
    0603-988 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 35
    0623-697 SCREW, MACHINE, PISTON (INC. 36)
    SCREW, MACHINE, PISTON (INC. 36)
  • 36
    1604-279 O-RING
    O-RING
  • 37
    0703-540 END CAP, RESERVOIR (INC. ONE NO. 27)
    END CAP, RESERVOIR (INC. ONE NO. 27)
  • 38
    0704-383 VALVE, PRESSURE (INC. 39, 40)
    VALVE, PRESSURE (INC. 39, 40)
  • 39
    1604-284 O-RING, VALVE
    O-RING, VALVE
  • 41
    0624-433 SCREW, MACHINE, VALVE
    SCREW, MACHINE, VALVE
  • 42
    0603-985 RETAINER, END CAP
    RETAINER, END CAP
  • 43
    1604-262 BUSHING, SHOCK
    BUSHING, SHOCK
  • 44
    1604-397 SLEEVE, EYELET
    SLEEVE, EYELET
  • 45
    1639-245 OIL, GAS SHOCK, 6 QT CASE
    OIL, GAS SHOCK, 6 QT CASE
  • 46
    1603-406 PIN, INNERDICATOR KNOB
    PIN, INNERDICATOR KNOB
  • 47
    0603-970 O-RING
    O-RING
  • 48
    3611-007 DECAL, WARNING, SHOCK
    DECAL, WARNING, SHOCK
  • 49
    3611-691 DECAL, "ACT", SHOCK
    DECAL, "ACT", SHOCK
  • 50
    1603-316 CLAMP, RESERVOIR
    CLAMP, RESERVOIR
