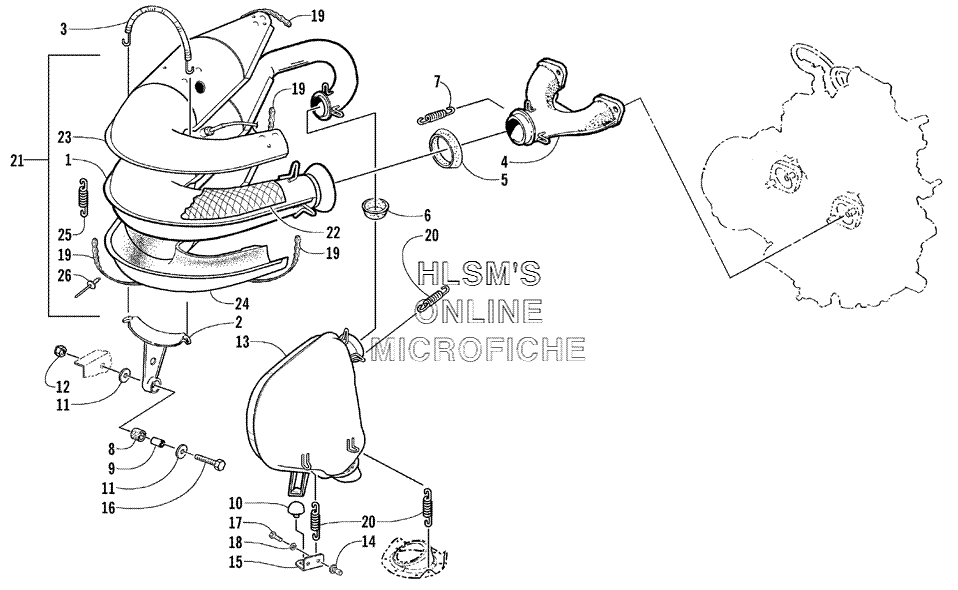

EXHAUST ASSY. для Arctic Cat ZR 440 Sno Pro (International) - 2000 года выпуска

№

Артикул

Название
1

0712-420 CHAMBER, EXPANSION

CHAMBER, EXPANSION
2

0712-437 BRACKET, SUPPORT

BRACKET, SUPPORT
3

0612-027 SPRING, EXTENSION

SPRING, EXTENSION
4

0712-364 MANIFOLD, EXHAUST

MANIFOLD, EXHAUST
5

0612-748 GASKET, EXHAUST

GASKET, EXHAUST
6

0612-693 GASKET, EXHAUST, TAILPIPE

GASKET, EXHAUST, TAILPIPE
7

0612-820 SPRING, EXTENSION

SPRING, EXTENSION
8

0612-107 BUSHING, RESONATOR, RUBBER

BUSHING, RESONATOR, RUBBER
9

0612-108 SPACER, RESONATOR

SPACER, RESONATOR
10

0612-111 BUMPER, MOLDED, RUBBER

BUMPER, MOLDED, RUBBER
11

0623-184 WASHER

WASHER
12

8040-366 NUT, LOCK

NUT, LOCK
13

0712-414 RESONATOR

RESONATOR
14

0623-582 INSERT

INSERT
15

1612-308 BRACKET, MOUNTING, RESONATOR

BRACKET, MOUNTING, RESONATOR
16

8002-045 SCREW, CAP

SCREW, CAP
17

8002-040 SCREW, CAP

SCREW, CAP
18

8051-217 WASHER, LOCK

WASHER, LOCK
19

0624-526 TIE, PERFORATED BAND (5 FT)

TIE, PERFORATED BAND (5 FT)
20

0612-471 SPRING, EXHAUST

SPRING, EXHAUST
21

0712-421 CHAMBER, EXPANSION, ASSY. (INC. 1, 19, AND 22, 24)

CHAMBER, EXPANSION, ASSY. (INC. 1, 19, AND 22, 24)
22

1612-263 PACKING, EXPANSION CHAMBER

PACKING, EXPANSION CHAMBER
23

0712-422 COVER, EXPANSION CHAMBER (UPPER)

COVER, EXPANSION CHAMBER (UPPER)
24

0712-423 COVER, EXPANSION CHAMBER (LOWER)

COVER, EXPANSION CHAMBER (LOWER)
25

0123-321 SPRING, EXTENSION

SPRING, EXTENSION
