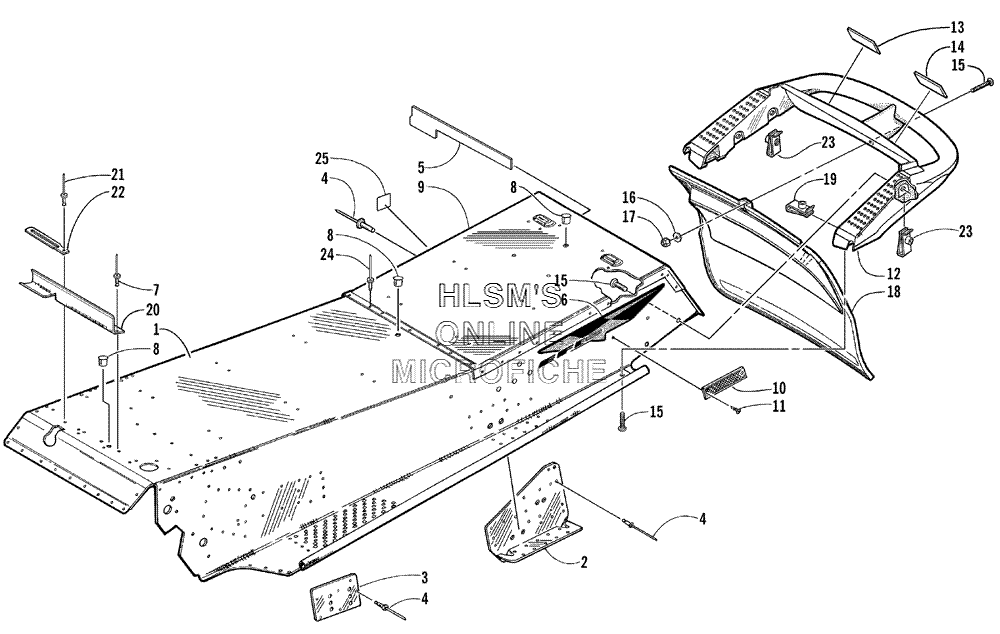

TUNNEL AND REAR BUMPER для Arctic Cat ZL 600 EFI - 2000 года выпуска`
-
№АртикулНазвание
-
10718-697 TUNNEL ASSY. (INC. 2, 4 AND 9)TUNNEL ASSY. (INC. 2, 4 AND 9)
-
20716-906 . BRACKET, SUSPENSION MOUNTING (RIGHT/REAR). BRACKET, SUSPENSION MOUNTING (RIGHT/REAR)
-
20716-907 . BRACKET, SUSPENSION MOUNTING (LEFT/REAR). BRACKET, SUSPENSION MOUNTING (LEFT/REAR)
-
31606-161 . PLATE, SUSPENSION MOUNTING (FRONT). PLATE, SUSPENSION MOUNTING (FRONT)
-
48060-506 . RIVET. RIVET
-
52611-940 DECAL, TUNNEL (REAR)DECAL, TUNNEL (REAR)
-
63611-544 DECAL, TUNNEL (RIGHT)DECAL, TUNNEL (RIGHT)
-
63611-545 DECAL, TUNNEL (LEFT)DECAL, TUNNEL (LEFT)
-
70623-166 RIVETRIVET
-
80623-562 PLUG, HOLEPLUG, HOLE
-
91606-486 PLATE, END TUNNEL (REAR)PLATE, END TUNNEL (REAR)
-
100606-029 REFLECTOR (REAR) (RED)REFLECTOR (REAR) (RED)
-
110623-269 CLIP, RETAININGCLIP, RETAINING
-
121606-200 BUMPER (REAR)BUMPER (REAR)
-
131611-567 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
141611-566 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
158017-580 SCREW, MACHINESCREW, MACHINE
-
168050-217 WASHERWASHER
-
178040-366 NUT, LOCKNUT, LOCK
-
181606-202 SNOWFLAPSNOWFLAP
-
181606-507 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
190623-427 NUT, UNUT, U
-
200607-488 BRACKET, MAIN HARNESS PROTECTORBRACKET, MAIN HARNESS PROTECTOR
-
218060-504 RIVETRIVET
-
223002-964 CLAMP, WIRECLAMP, WIRE
-
230623-771 NUT, UNUT, U
-
248060-704 RIVETRIVET
-
250411-053 DECAL, CEDECAL, CE
