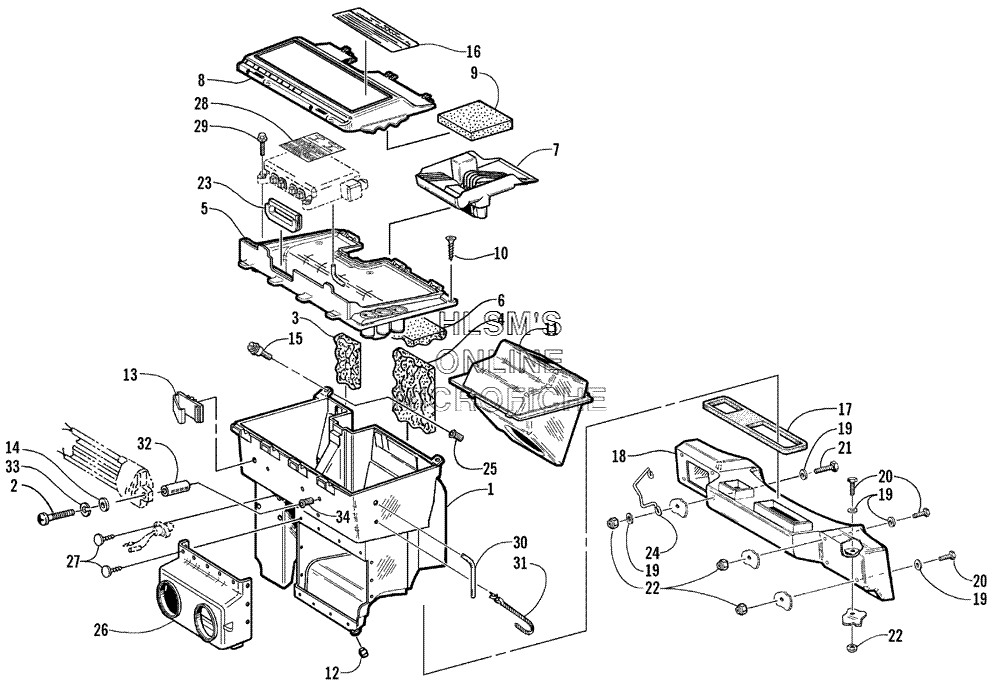

AIR SILENCER ASSEMBLY для Arctic Cat ZL 500 EFI - 2000 года выпуска
-
№АртикулНазвание
-
10770-394 SILENCER, AIR, ASSEMBLYSILENCER, AIR, ASSEMBLY
-
20623-082 SCREW, MACHINESCREW, MACHINE
-
30617-252 FOAM, AIR SILENCER, BACK (MAGNETO)FOAM, AIR SILENCER, BACK (MAGNETO)
-
40617-253 FOAM, AIR SILENCER, BACK (PTO)FOAM, AIR SILENCER, BACK (PTO)
-
50770-416 COVER, AIR SILENCERCOVER, AIR SILENCER
-
60617-251 FOAM, AIR SILENCER, COVERFOAM, AIR SILENCER, COVER
-
70670-826 TRAY, TOOLTRAY, TOOL
-
81670-049 COVER, TOOL TRAYCOVER, TOOL TRAY
-
90617-294 FOAM, TOOL TRAYFOAM, TOOL TRAY
-
100623-770 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
110670-879 RESONATOR, Q, WAVERESONATOR, Q, WAVE
-
121606-038 BUMPER, AIR SILENCERBUMPER, AIR SILENCER
-
130623-792 CLIP, PUSH MOUNTCLIP, PUSH MOUNT
-
148050-157 WASHERWASHER
-
150623-780 SCREW, MACHINE, HEX SHOULDERSCREW, MACHINE, HEX SHOULDER
-
163611-654 DECAL, CLUTCHING CHARTDECAL, CLUTCHING CHART
-
170617-245 SEAL, AIR SILENCER/PLENUMSEAL, AIR SILENCER/PLENUM
-
180670-814 PLENUM, AIR SILENCERPLENUM, AIR SILENCER
-
198050-222 WASHERWASHER
-
208002-040 SCREW, CAPSCREW, CAP
-
218002-042 SCREW, CAPSCREW, CAP
-
228040-366 NUT, LOCKNUT, LOCK
-
230670-827 GROMMETGROMMET
-
230670-827 GROMMETGROMMET
-
240645-269 BRACKET, GUARD, HARNESS/ROPEBRACKET, GUARD, HARNESS/ROPE
-
250623-779 INSERTINSERT
-
260670-938 BOOT, AIR SILENCERBOOT, AIR SILENCER
-
270623-165 CLIP, RETAININGCLIP, RETAINING
-
283611-403 DECAL, FUEL DESIGNATIONDECAL, FUEL DESIGNATION
-
290623-785 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
300610-012 HOSE, PRIMER (25 FT)HOSE, PRIMER (25 FT)
-
310623-677 CABLE TIE, PUSH MOUNTCABLE TIE, PUSH MOUNT
-
320107-630 SPACERSPACER
-
338051-152 WASHER, LOCKWASHER, LOCK
-
340623-529 INSERTINSERT
