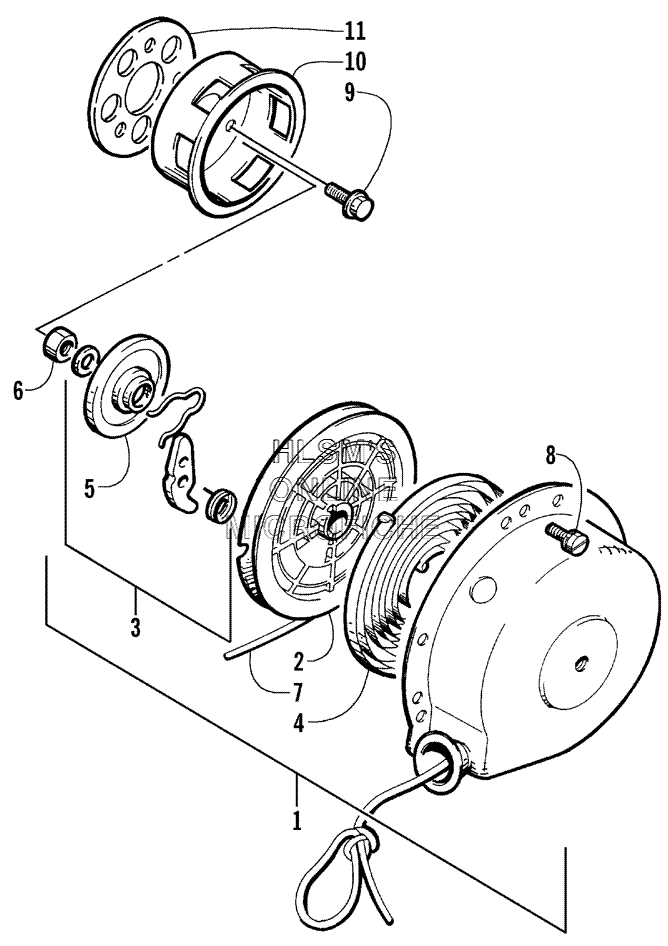

RECOIL STARTER для Arctic Cat ZL 440 - 2000 года выпуска
-
№АртикулНазвание
-
13005-520 STARTER ASSY. (INC. 2, 7)STARTER ASSY. (INC. 2, 7)
-
23003-179 . ROLLER, STARTER. ROLLER, STARTER
-
33004-729 . RATCHET SET (INC. 5). RATCHET SET (INC. 5)
-
43002-921 . SPRING, STARTER. SPRING, STARTER
-
53005-521 . PLATE, FRICTION. PLATE, FRICTION
-
63004-488 . NUT. NUT
-
73003-327 . ROPE, STARTER. ROPE, STARTER
-
83004-383 BOLTBOLT
-
93004-377 BOLTBOLT
-
103004-819 PULLEY, STARTERPULLEY, STARTER
-
113003-671 SPACER, STARTER PULLEYSPACER, STARTER PULLEY
