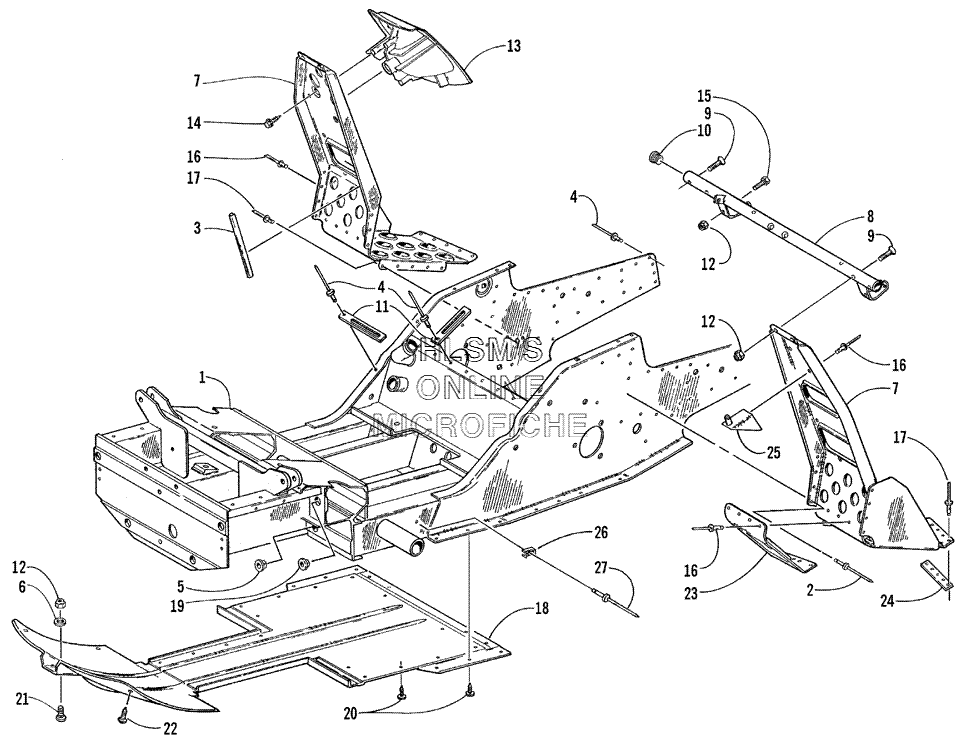

FRONT FRAME AND FOOTREST ASSY. для Arctic Cat ZL 440 - 2000 года выпуска`
-
№АртикулНазвание
-
10707-452 CHASSIS ASSY.CHASSIS ASSY.
-
20623-341 RIVETRIVET
-
30706-371 TRIMTRIM
-
48060-506 RIVETRIVET
-
50607-420 INSERT A, ARM MOUNT (LOWER)INSERT A, ARM MOUNT (LOWER)
-
68050-222 WASHERWASHER
-
71706-360 FOOTREST (RIGHT/BLACK)FOOTREST (RIGHT/BLACK)
-
71706-361 FOOTREST (LEFT) (BLACK)FOOTREST (LEFT) (BLACK)
-
80705-228 SUPPORT, STEERINGSUPPORT, STEERING
-
98019-614 SCREW, MACHINESCREW, MACHINE
-
101606-079 CLOSURE, TUBECLOSURE, TUBE
-
113002-964 CLAMP, WIRECLAMP, WIRE
-
128040-366 NUT, LOCKNUT, LOCK
-
131606-062 CUP, RECOIL ROPECUP, RECOIL ROPE
-
140623-297 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
158002-041 SCREW, CAPSCREW, CAP
-
160623-166 RIVETRIVET
-
170623-282 RIVETRIVET
-
181606-508 BELLY PAN (CENTER)BELLY PAN (CENTER)
-
190607-421 INSERT A, ARM MOUNT (UPPER)INSERT A, ARM MOUNT (UPPER)
-
200623-700 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
218017-584 SCREW, MACHINESCREW, MACHINE
-
220623-309 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
231606-542 PLATE, BACKING (RIGHT)PLATE, BACKING (RIGHT)
-
231606-543 PLATE, BACKING (LEFT)PLATE, BACKING (LEFT)
-
240616-701 PLATE, BACKING, FOOTRESTPLATE, BACKING, FOOTREST
-
250705-173 BRACKET, MOUNTING, GUARDBRACKET, MOUNTING, GUARD
-
260623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
278060-428 RIVETRIVET
