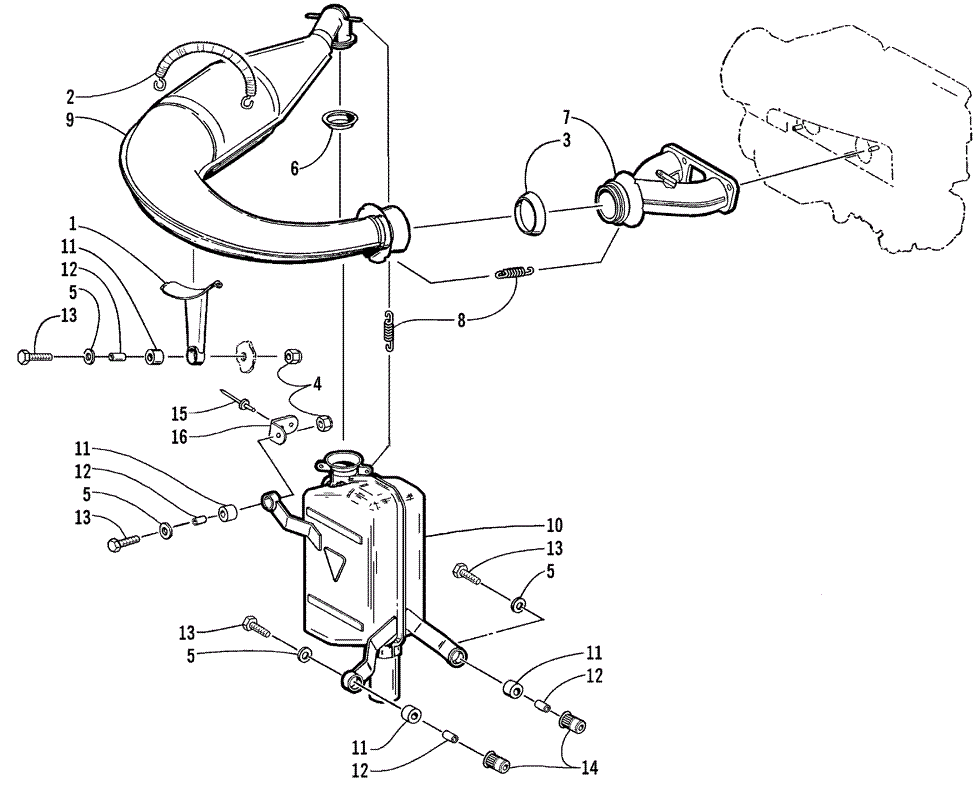

EXHAUST ASSY. для Arctic Cat Z 440 ES - 2000 года выпуска
-
№АртикулНазвание
-
10712-176 BRACKET, MOUNTING, EXPANSION CHAMBERBRACKET, MOUNTING, EXPANSION CHAMBER
-
20612-027 SPRING, EXTENSIONSPRING, EXTENSION
-
30612-131 GASKET, EXHAUST, HEADER JOINTGASKET, EXHAUST, HEADER JOINT
-
48040-366 NUT, LOCKNUT, LOCK
-
50623-184 WASHERWASHER
-
60612-188 GASKET, EXHAUST, TAILPIPEGASKET, EXHAUST, TAILPIPE
-
70712-375 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
80123-321 SPRING, EXTENSIONSPRING, EXTENSION
-
90712-391 EXPANSION CHAMBER ASSY.EXPANSION CHAMBER ASSY.
-
100712-259 RESONATORRESONATOR
-
110612-107 BUSHING, RESONATOR, RUBBERBUSHING, RESONATOR, RUBBER
-
120612-108 SPACER, RESONATORSPACER, RESONATOR
-
138002-044 SCREW, CAPSCREW, CAP
-
140623-582 INSERTINSERT
-
158061-708 RIVETRIVET
-
160612-790 BRACKET, MOUNTING, RESONATORBRACKET, MOUNTING, RESONATOR
