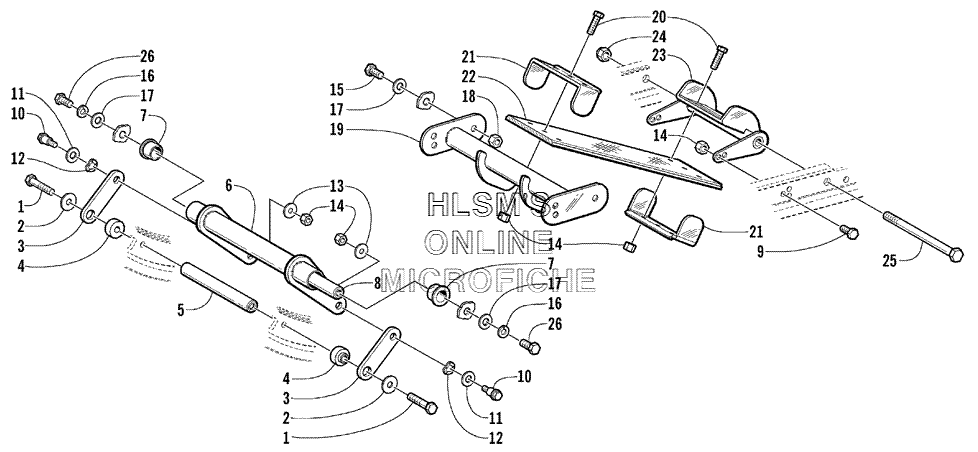

REAR SUSPENSION ARM ASSEMBLIES для Arctic Cat Z 120 - 2000 года выпуска`
-
№АртикулНазвание
-
18002-136 SCREW, CAPSCREW, CAP
-
28050-252 WASHERWASHER
-
31604-599 ARM (FRONT) (LOWER)ARM (FRONT) (LOWER)
-
41604-603 SPACER ARM (FRONT) (LOWER)SPACER ARM (FRONT) (LOWER)
-
51604-566 AXLE, CROSS, BRACEAXLE, CROSS, BRACE
-
60704-511 ARM (FRONT) (UPPER) (INC. 7)ARM (FRONT) (UPPER) (INC. 7)
-
70104-386 . BUSHING ARM (FRONT). BUSHING ARM (FRONT)
-
81604-555 AXLE, IDLER (UPPER)AXLE, IDLER (UPPER)
-
98002-040 SCREW, CAPSCREW, CAP
-
100623-855 SCREW, MACHINE, HEX SHOULDERSCREW, MACHINE, HEX SHOULDER
-
118050-272 WASHERWASHER
-
120623-854 WASHER, SPRINGWASHER, SPRING
-
138050-222 WASHERWASHER
-
148040-366 NUT, LOCKNUT, LOCK
-
158002-130 SCREW, CAPSCREW, CAP
-
168051-247 WASHER, LOCKWASHER, LOCK
-
178050-247 WASHERWASHER
-
188040-426 NUT, LOCKNUT, LOCK
-
190704-487 BRACKET, MOUNTING, SPRING (UPPER)BRACKET, MOUNTING, SPRING (UPPER)
-
208013-042 SCREW, CAPSCREW, CAP
-
211604-610 BRACKET, SPRING RETAINERBRACKET, SPRING RETAINER
-
221604-567 SPRING SUSPENSION (REAR)SPRING SUSPENSION (REAR)
-
230704-486 BRACKET, MOUNTING, SPRING (LOWER)BRACKET, MOUNTING, SPRING (LOWER)
-
248040-486 NUT, LOCKNUT, LOCK
-
258002-240 SCREW, CAPSCREW, CAP
-
268002-131 SCREW, CAPSCREW, CAP
