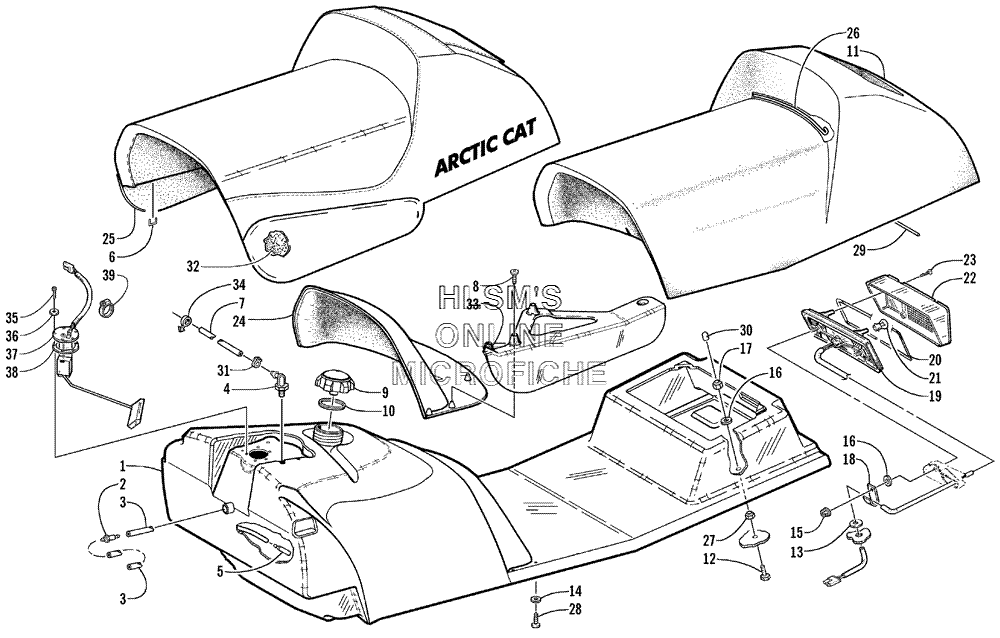

GAS TANK- SEAT- AND TAILLIGHT ASSEMBLY (THC) для Arctic Cat Thundercat THC (International) - 2000 года выпуска`
-
№АртикулНазвание
-
-0718-847 COMPLETE SEAT ASSEMBLY (BLACK)COMPLETE SEAT ASSEMBLY (BLACK)
-
-0718-848 COMPLETE SEAT ASSEMBLY (GREEN)COMPLETE SEAT ASSEMBLY (GREEN)
-
10770-437 TANK, GAS/SEAT, BASE (INC. 2, 5)TANK, GAS/SEAT, BASE (INC. 2, 5)
-
20670-042 OUTLET, TANKOUTLET, TANK
-
30610-017 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
30610-008 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
40670-572 VENT, GAS TANKVENT, GAS TANK
-
50510-358 STRAINER, GAS TANKSTRAINER, GAS TANK
-
60623-577 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
70610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
70610-016 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
80623-783 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
90670-341 CAP, GAS TANK (INC. 10)CAP, GAS TANK (INC. 10)
-
100109-733 SEAL, GAS CAPSEAL, GAS CAP
-
110716-951 FOAM, SEAT CUSHIONFOAM, SEAT CUSHION
-
128002-042 SCREW, CAPSCREW, CAP
-
130617-136 SEAL, FOAM, SEAT, BASESEAL, FOAM, SEAT, BASE
-
148050-217 WASHERWASHER
-
150623-038 NUT, LOCKNUT, LOCK
-
160623-184 WASHERWASHER
-
178040-366 NUT, LOCKNUT, LOCK
-
183002-964 CLAMP, WIRECLAMP, WIRE
-
190609-091 TAILLIGHT W/SOCKET ASSEMBLYTAILLIGHT W/SOCKET ASSEMBLY
-
200609-092 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
210109-460 BULBBULB
-
220609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
230609-093 SCREW, RETAININGSCREW, RETAINING
-
241606-612 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
251706-058 COVER, SEAT (BLACK)COVER, SEAT (BLACK)
-
251706-082 COVER, SEAT (GREEN)COVER, SEAT (GREEN)
-
261606-150 WIRE, SEATWIRE, SEAT
-
278041-366 NUT, LOCKNUT, LOCK
-
280623-309 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
290606-057 WIRE, SEATWIRE, SEAT
-
300623-404 CAP, PROTECTORCAP, PROTECTOR
-
310623-063 CLAMP, HOSECLAMP, HOSE
-
320617-391 FOAM, PAD, TUNNEL (GREEN)FOAM, PAD, TUNNEL (GREEN)
-
331606-710 INSERT, SEAT PAD (RIGHT)INSERT, SEAT PAD (RIGHT)
-
331606-711 INSERT, SEAT PAD (LEFT)INSERT, SEAT PAD (LEFT)
-
340623-101 CLIP, ROUTING, SNAP, INNERCLIP, ROUTING, SNAP, INNER
-
350624-312 SCREW, MACHINESCREW, MACHINE
-
360623-371 WASHER, NYLONWASHER, NYLON
-
370620-208 SENDER, FUEL LEVEL (INC. 38)SENDER, FUEL LEVEL (INC. 38)
-
380670-474 GASKET, FUEL LEVEL SENDERGASKET, FUEL LEVEL SENDER
-
390623-373 CLAMP, HOSECLAMP, HOSE
