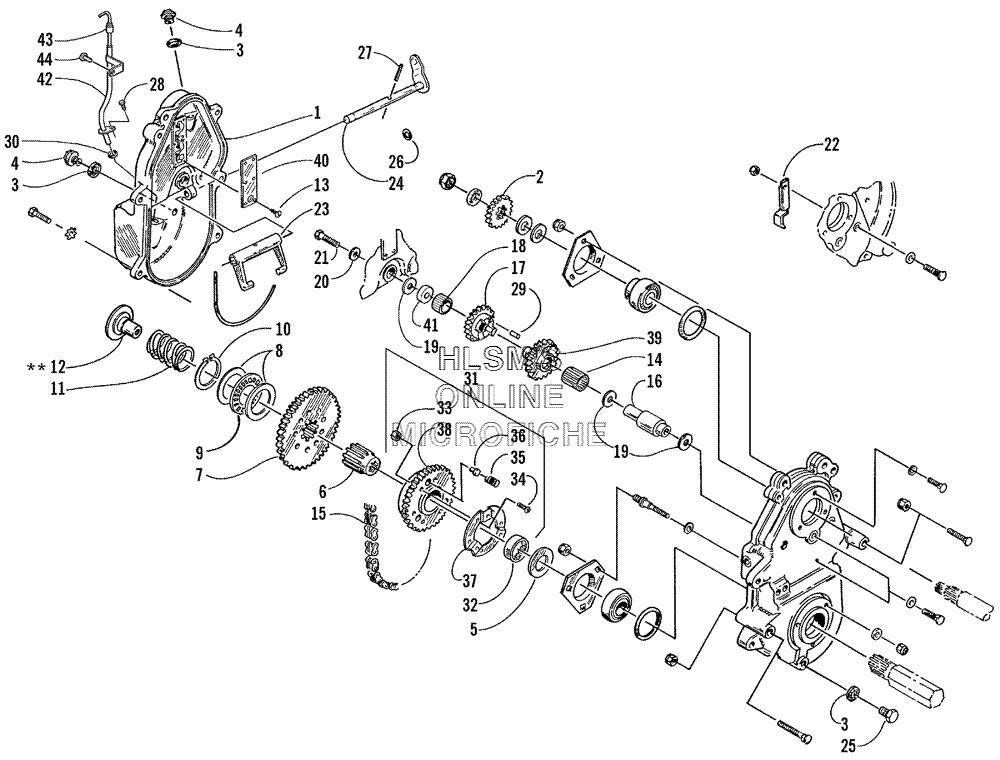

DRIVE/REVERSE DROPCASE ASSEMBLY (OPTIONAL) для Arctic Cat Thundercat MC (International) - 2000 года выпуска
-
№АртикулНазвание
-
-1639-483 REVERSE OPTIONAL KIT HIGH/LOW ALT., MC AND HIGH ALT., THC (483)REVERSE OPTIONAL KIT HIGH/LOW ALT., MC AND HIGH ALT., THC (483)
-
-1639-482 REVERSE OPTIONAL KIT LOW ALT., THC (482)REVERSE OPTIONAL KIT LOW ALT., THC (482)
-
11602-010 COVER, DROPCASECOVER, DROPCASE
-
20602-444 SPROCKET (19 TEETH) (KIT 1639, 483 )SPROCKET (19 TEETH) (KIT 1639, 483 )
-
30123-641 WASHER, FIBERWASHER, FIBER
-
40623-293 PLUG, DRAINPLUG, DRAIN
-
50602-012 SPACER, SHAFTSPACER, SHAFT
-
61602-048 EXTENSION, DRIVESHAFTEXTENSION, DRIVESHAFT
-
70702-048 GEAR, REVERSE (55 TEETH/INC. 8, 10)GEAR, REVERSE (55 TEETH/INC. 8, 10)
-
80602-023 WASHER, THRUSTWASHER, THRUST
-
90602-022 BEARING, THRUSTBEARING, THRUST
-
100602-024 RING, RETAININGRING, RETAINING
-
110602-028 SPRING, RETURNSPRING, RETURN
-
120602-783 RETAINER, SHAFTRETAINER, SHAFT
-
130623-081 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
140602-205 BEARING, CAGEDBEARING, CAGED
-
151602-042 CHAIN, 72PCHAIN, 72P
-
151602-041 CHAIN, 70P (OVER 5, 000 FT ALT.)CHAIN, 70P (OVER 5, 000 FT ALT.)
-
160602-872 SHAFT, REVERSESHAFT, REVERSE
-
170702-365 IDLER, REVERSE ASSEMBLY (19 TEETH) (INC. 18)IDLER, REVERSE ASSEMBLY (19 TEETH) (INC. 18)
-
181602-045 BEARINGBEARING
-
190602-215 SPACER, REVERSE IDLERSPACER, REVERSE IDLER
-
208050-242 WASHERWASHER
-
218002-130 SCREW, CAPSCREW, CAP
-
220602-900 BRACKET, CHAIN BACKING (KIT 1639, 482 )BRACKET, CHAIN BACKING (KIT 1639, 482 )
-
220602-466 BRACKET, CHAIN BACKING (KIT 1639, 483 )BRACKET, CHAIN BACKING (KIT 1639, 483 )
-
230602-085 FORK, SHIFTFORK, SHIFT
-
240702-350 SHAFT, SHIFT FORKSHAFT, SHIFT FORK
-
250602-479 PLUG, DRAINPLUG, DRAIN
-
260602-021 SEAL, O-RINGSEAL, O-RING
-
270623-542 PIN, SPRINGPIN, SPRING
-
280623-786 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
290602-366 ALIGNER, IDLERALIGNER, IDLER
-
301602-013 O, O-RINGIL LEVEL STICK TUBEO, O-RINGIL LEVEL STICK TUBE
-
310702-170 SPROCKET ASSEMBLY (39 TEETH) (INC. 32, 38)SPROCKET ASSEMBLY (39 TEETH) (INC. 32, 38)
-
320602-016 BEARINGBEARING
-
330123-430 NUT, LOCKNUT, LOCK
-
340623-182 SCREW, CAPSCREW, CAP
-
350602-138 SPRING, COMPRESSIONSPRING, COMPRESSION
-
360602-133 PIN, SLIPPIN, SLIP
-
370602-144 RETAINER, SPRINGRETAINER, SPRING
-
390602-899 SPROCKET, IDLER (22 TEETH) (INC. 14) (KIT 1639, 482 )SPROCKET, IDLER (22 TEETH) (INC. 14) (KIT 1639, 482 )
-
390602-871 SPROCKET, IDLER (24 TEETH) (INC. 14) (KIT 1639, 483 )SPROCKET, IDLER (24 TEETH) (INC. 14) (KIT 1639, 483 )
-
400602-112 COVER, OIL VENTCOVER, OIL VENT
-
411602-044 WASHER, THRUSTWASHER, THRUST
-
421602-011 TUBE, OIL LEVEL STICKTUBE, OIL LEVEL STICK
-
431602-012 STICK, OIL LEVELSTICK, OIL LEVEL
-
440623-640 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
