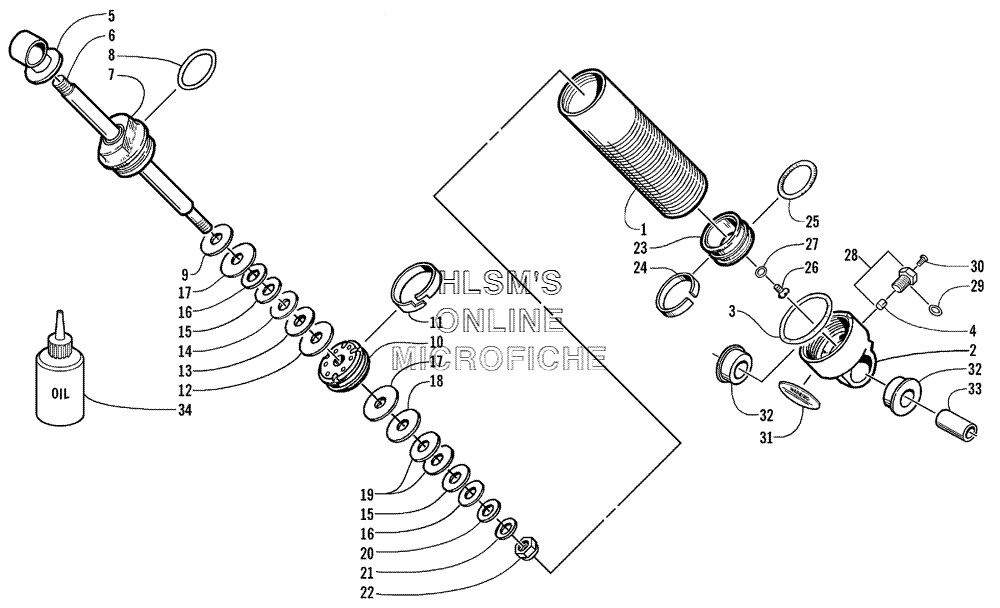

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat Thundercat Green - 2000 года выпуска`
-
№АртикулНазвание
-
-0704-467 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
11604-394 BODY, SHOCKBODY, SHOCK
-
21604-294 END CAP, SHOCKEND CAP, SHOCK
-
31604-280 O-RING, END CAPO-RING, END CAP
-
50704-484 EYELETEYELET
-
61604-542 ROD, SHOCKROD, SHOCK
-
70704-386 CAP, SHOCK (INC. 8)CAP, SHOCK (INC. 8)
-
81604-271 O-RINGO-RING
-
91604-272 WASHER, TOP OUTWASHER, TOP OUT
-
100603-952 PISTON, 0.059 IN. ORIFICEPISTON, 0.059 IN. ORIFICE
-
111604-274 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
121603-136 VALVE, 1.300 X 0.012 IN.VALVE, 1.300 X 0.012 IN.
-
131603-096 VALVE, 1.100 X 0.012 IN.VALVE, 1.100 X 0.012 IN.
-
141603-076 VALVE, 1.000 X 0.012 IN.VALVE, 1.000 X 0.012 IN.
-
151603-065 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
161603-055 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
171603-125 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
181603-095 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
191603-075 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
201603-045 VALVE, 0.700 X 0.010 IN.VALVE, 0.700 X 0.010 IN.
-
211604-273 WASHER, BACKUPWASHER, BACKUP
-
220623-696 NUT, LOCKNUT, LOCK
-
231604-276 PISTON, FLOATING (INC. 24, 27)PISTON, FLOATING (INC. 24, 27)
-
241604-278 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
251604-277 O-RINGO-RING
-
260623-697 SCREW, RELIEF W/O-RING (INC. 27)SCREW, RELIEF W/O-RING (INC. 27)
-
271604-279 O-RINGO-RING
-
280704-383 VALVE, PRESSURE (INC. 4 AND 29)VALVE, PRESSURE (INC. 4 AND 29)
-
291604-284 O-RING, VALVEO-RING, VALVE
-
300624-433 SCREW, MACHINESCREW, MACHINE
-
313611-007 DECAL, WARNINGDECAL, WARNING
-
321604-287 BUSHING, SHOCKBUSHING, SHOCK
-
331604-289 SLEEVE, SHOCK EYELETSLEEVE, SHOCK EYELET
-
341639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
