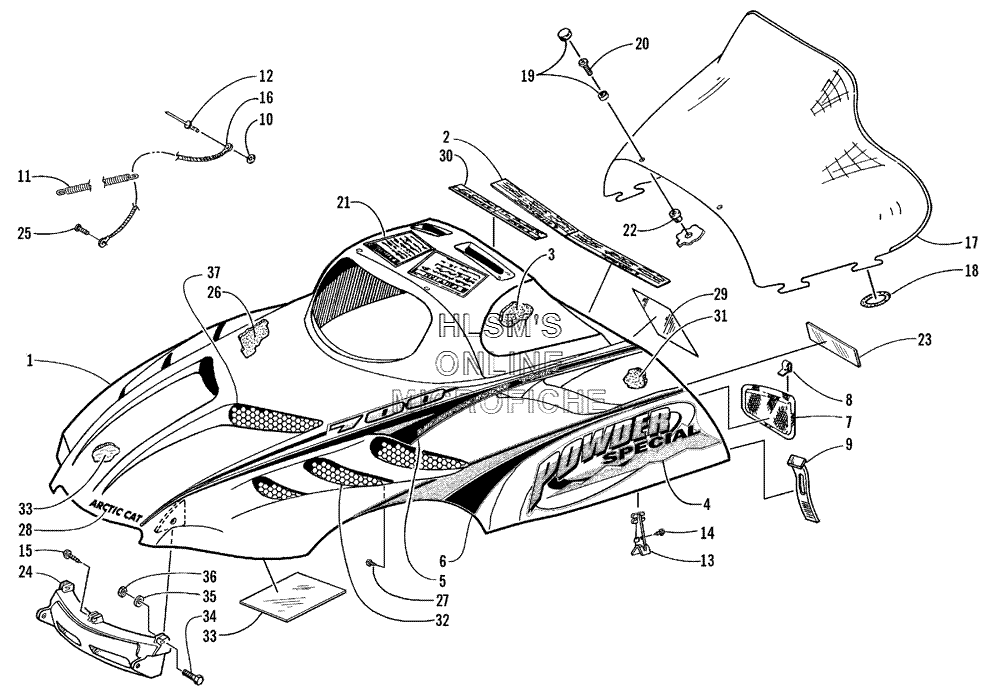

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Powder Special 700 - 2000 года выпуска
-
№АртикулНазвание
-
10718-873 HOOD W/O DECALS (SILVER)HOOD W/O DECALS (SILVER)
-
10718-877 HOOD W/DECALS (SILVER)HOOD W/DECALS (SILVER)
-
23611-402 DECAL, CAUTION, FUELDECAL, CAUTION, FUEL
-
30717-100 FOAM, HOOD (UPPER/RIGHT)FOAM, HOOD (UPPER/RIGHT)
-
30717-101 FOAM, HOOD (UPPER/LEFT)FOAM, HOOD (UPPER/LEFT)
-
43611-592 DECAL, HOOD (LOWER) (RIGHT) (SILVER)DECAL, HOOD (LOWER) (RIGHT) (SILVER)
-
43611-593 DECAL, HOOD (LOWER) (LEFT) (SILVER)DECAL, HOOD (LOWER) (LEFT) (SILVER)
-
53611-600 DECAL, "700", HOOD (RIGHT) (SILVER)DECAL, "700", HOOD (RIGHT) (SILVER)
-
53611-601 DECAL, "700", HOOD (LEFT) (SILVER)DECAL, "700", HOOD (LEFT) (SILVER)
-
63611-596 DECAL, HOOD (CENTER) (RIGHT) (SILVER)DECAL, HOOD (CENTER) (RIGHT) (SILVER)
-
63611-597 DECAL, HOOD (CENTER) (LEFT) (SILVER)DECAL, HOOD (CENTER) (LEFT) (SILVER)
-
71606-214 SCREEN, HOODSCREEN, HOOD
-
80123-596 CLIP, PUSHCLIP, PUSH
-
91606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
100123-802 WASHERWASHER
-
110123-510 SPRING, EXTENSIONSPRING, EXTENSION
-
128061-708 RIVETRIVET
-
131606-049 GUIDE, HOODGUIDE, HOOD
-
140623-257 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
150623-684 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
161606-193 CABLE, HOODCABLE, HOOD
-
170639-763 WINDSHIELDWINDSHIELD
-
180616-032 O-RINGO-RING
-
190124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
200623-121 SCREW, MACHINESCREW, MACHINE
-
212611-971 DECAL, WARNINGDECAL, WARNING
-
220123-010 NUT, EXPANSIONNUT, EXPANSION
-
232611-769 DECAL, WARNING, SEATING CAPACITYDECAL, WARNING, SEATING CAPACITY
-
241606-047 HINGE, HOODHINGE, HOOD
-
250145-105 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
260717-102 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
270623-707 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
283611-187 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
292611-970 DECAL, WARNING, BRAKE/ENGINEDECAL, WARNING, BRAKE/ENGINE
-
302611-972 DECAL, CAUTION, FUEL, ENGINE/BATTERYDECAL, CAUTION, FUEL, ENGINE/BATTERY
-
310717-110 FOAM, HOOD (REAR) RIGHTFOAM, HOOD (REAR) RIGHT
-
310717-111 FOAM, HOOD (REAR) LEFTFOAM, HOOD (REAR) LEFT
-
321606-308 SCREEN, VENT, HOOD (RIGHT)SCREEN, VENT, HOOD (RIGHT)
-
321606-309 SCREEN, VENT, HOOD (LEFT)SCREEN, VENT, HOOD (LEFT)
-
330619-206 TAPE, FOILTAPE, FOIL
-
340623-296 SCREW, MACHINESCREW, MACHINE
-
358050-157 WASHERWASHER
-
360623-392 NUT, LOCKNUT, LOCK
-
371606-318 SCREEN, VENT, HOOD (CENTER)SCREEN, VENT, HOOD (CENTER)
