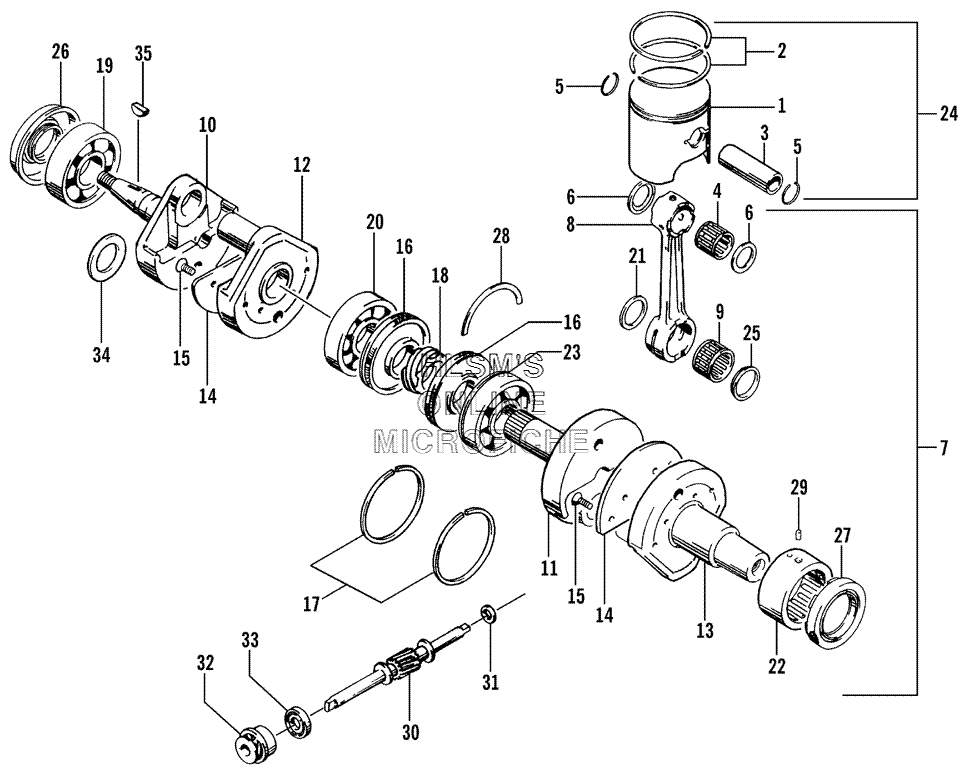

PISTON AND CRANKSHAFT для Arctic Cat Powder Special 600 LE (Black) - 2000 года выпуска
-
№АртикулНазвание
-
13005-601 PISTONPISTON
-
23003-714 RING ASSEMBLYRING ASSEMBLY
-
33008-509 PIN, PISTONPIN, PISTON
-
43008-503 BEARING, PISTON PINBEARING, PISTON PIN
-
53005-304 CIRCLIP, PISTON PINCIRCLIP, PISTON PIN
-
63008-500 WASHER, PISTON PIN BEARINGWASHER, PISTON PIN BEARING
-
73005-602 CRANKSHAFT ASSEMBLY (INC. 8, 22)CRANKSHAFT ASSEMBLY (INC. 8, 22)
-
83005-492 ROD, CONNECTINGROD, CONNECTING
-
93005-505 BEARINGBEARING
-
103005-495 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
113005-496 CRANKSHAFT (CENTER)CRANKSHAFT (CENTER)
-
123005-497 WHEEL, CRANKSHAFTWHEEL, CRANKSHAFT
-
133005-498 CRANKSHAFT (LEFT)CRANKSHAFT (LEFT)
-
143005-500 BALANCER, CRANKSHAFTBALANCER, CRANKSHAFT
-
153004-372 SCREWSCREW
-
163005-597 RACE (MIDDLE) SEALRACE (MIDDLE) SEAL
-
173005-508 RINGRING
-
183005-362 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
193005-507 BEARING (RIGHT)BEARING (RIGHT)
-
203005-503 BEARING (MIDDLE)BEARING (MIDDLE)
-
213005-502 WASHERWASHER
-
223003-805 BEARING, CRANKSHAFT (LEFT)BEARING, CRANKSHAFT (LEFT)
-
233005-504 BEARING, CRANKSHAFT (CENTER)BEARING, CRANKSHAFT (CENTER)
-
243005-554 PISTON ASSEMBLY (INC. 1, 2, AND 5)PISTON ASSEMBLY (INC. 1, 2, AND 5)
-
253005-494 WASHER, CRANK PIN BEARINGWASHER, CRANK PIN BEARING
-
263008-525 SEAL, OIL (RIGHT)SEAL, OIL (RIGHT)
-
273003-759 SEAL, OIL (LEFT)SEAL, OIL (LEFT)
-
283003-359 C, RING, CRANKSHAFTC, RING, CRANKSHAFT
-
293003-658 PIN, ALIGNMENTPIN, ALIGNMENT
-
303005-319 GEAR, OIL PUMP DRIVENGEAR, OIL PUMP DRIVEN
-
313005-049 SHIM, OIL PUMP SHAFTSHIM, OIL PUMP SHAFT
-
323402-360 SEAL, MECHANICAL WATER PUMPSEAL, MECHANICAL WATER PUMP
-
333004-760 SEAL, WATER, OIL PUMPSEAL, WATER, OIL PUMP
-
343005-603 WASHERWASHER
-
353004-540 KEYKEY
