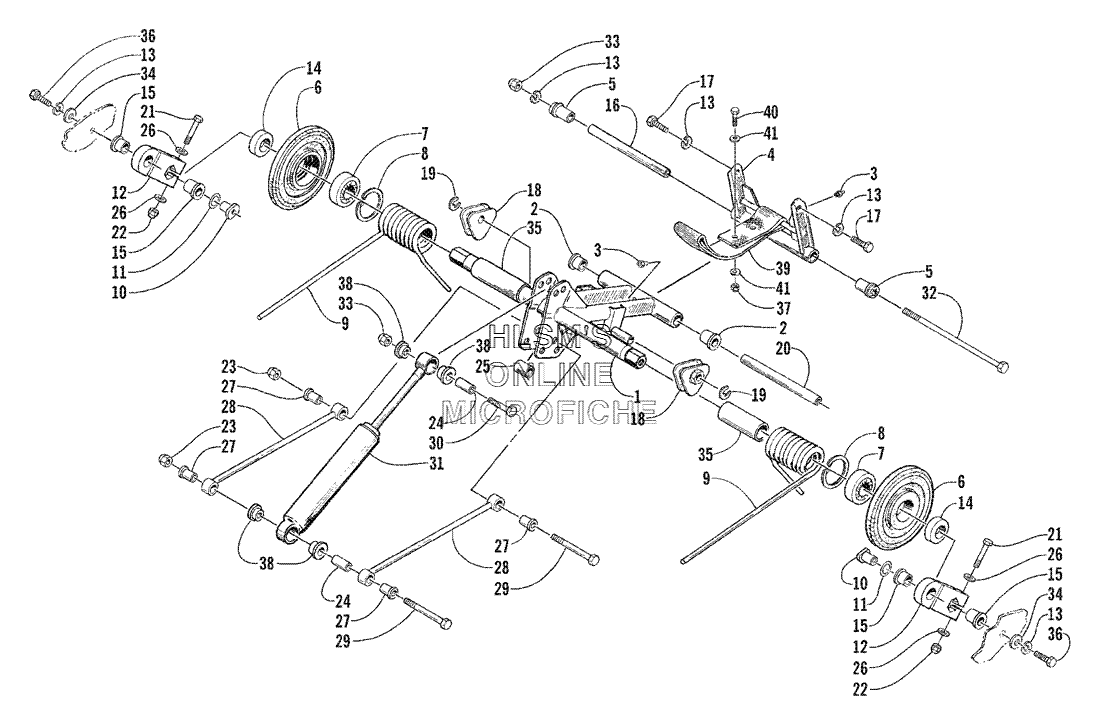

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat Powder Spcial 600 EFI - 2000 года выпуска`
-
№АртикулНазвание
-
10704-121 ARM, IDLER (INC. 2 AND 3)ARM, IDLER (INC. 2 AND 3)
-
21604-100 . BUSHING, FLARED. BUSHING, FLARED
-
39916-963 . FITTING, GREASE. FITTING, GREASE
-
40704-462 ARM, REAR (INC. 3)ARM, REAR (INC. 3)
-
51604-307 AXLE, SERRATEDAXLE, SERRATED
-
60604-374 WHEEL, IDLER (INC. 7-8)WHEEL, IDLER (INC. 7-8)
-
70107-598 . BEARING. BEARING
-
80123-798 . RING, RETAINING. RING, RETAINING
-
91604-062 SPRING, SUSPENSION - RIGHTSPRING, SUSPENSION - RIGHT
-
91604-063 SPRING, SUSPENSION - LEFTSPRING, SUSPENSION - LEFT
-
101604-181 AXLE, POWDER METALAXLE, POWDER METAL
-
111604-187 WASHER, PIVOT IDLER ARMWASHER, PIVOT IDLER ARM
-
120704-014 ARM, PIVOT IDLER (INC. 15)ARM, PIVOT IDLER (INC. 15)
-
138051-277 WASHER, LOCKWASHER, LOCK
-
141604-507 SPACER, PIVOT IDLER ARMSPACER, PIVOT IDLER ARM
-
151604-202 BUSHING, FLAREDBUSHING, FLARED
-
160604-194 TUBE, AXLETUBE, AXLE
-
178012-223 SCREW, CAPSCREW, CAP
-
181604-204 BLOCK, SPRING ADJUSTER - RIGHTBLOCK, SPRING ADJUSTER - RIGHT
-
181604-205 BLOCK, SPRING ADJUSTER - LEFTBLOCK, SPRING ADJUSTER - LEFT
-
190623-138 RING, RETAINERRING, RETAINER
-
201604-208 AXLE, ALUMINUMAXLE, ALUMINUM
-
218002-138 SCREW, CAPSCREW, CAP
-
228040-426 NUT, LOCKNUT, LOCK
-
238041-486 NUT, LOCKNUT, LOCK
-
241604-185 SLEEVE, SHOCKSLEEVE, SHOCK
-
250604-298 SPACER, SHOCK LINKSPACER, SHOCK LINK
-
268050-242 WASHERWASHER
-
271604-498 AXLE, LINK - FLANGEDAXLE, LINK - FLANGED
-
280704-334 LINK, REAR SHOCKLINK, REAR SHOCK
-
298002-233 SCREW, CAPSCREW, CAP
-
308002-227 SCREW, CAPSCREW, CAP
-
311604-370 SHOCK ABSORBER - REAR ARMSHOCK ABSORBER - REAR ARM
-
320623-105 SCREW, CAPSCREW, CAP
-
338040-486 NUT, LOCKNUT, LOCK
-
340623-044 WASHERWASHER
-
350114-254 SLEEVE, SPRINGSLEEVE, SPRING
-
368002-224 SCREW, CAPSCREW, CAP
-
378040-366 NUT, LOCKNUT, LOCK
-
380604-321 BUSHING, SHOCKBUSHING, SHOCK
-
391604-298 STRAP, LIMITERSTRAP, LIMITER
-
408002-042 SCREW, CAPSCREW, CAP
-
410623-184 WASHERWASHER
