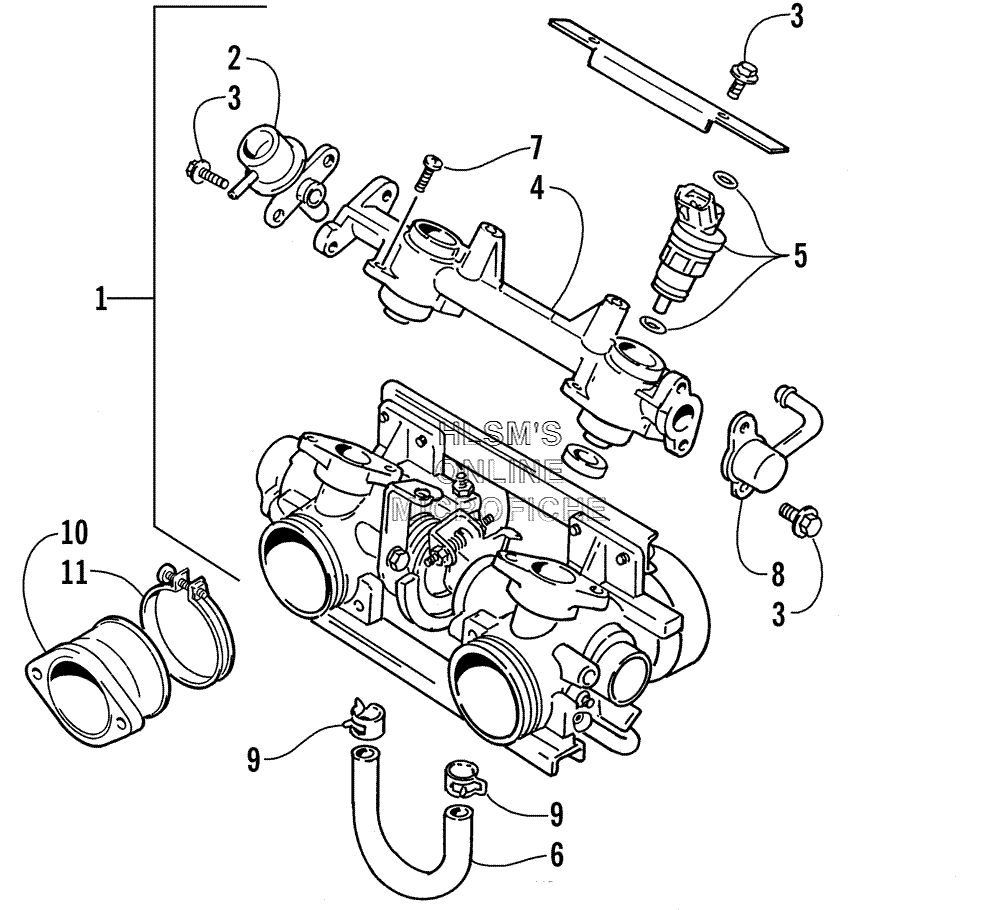

THROTTLE BODY ASSEMBLY для Arctic Cat Pantera 580 EFI (USA) - 2000 года выпуска
-
№АртикулНазвание
-
13005-613 THROTTLE BODY ASSEMBLY - CIRCLETHROTTLE BODY ASSEMBLY - CIRCLE
-
13005-587 THROTTLE BODY ASSEMBLY - SQUARETHROTTLE BODY ASSEMBLY - SQUARE
-
13005-614 THROTTLE BODY ASSEMBLY - TRIANGLETHROTTLE BODY ASSEMBLY - TRIANGLE
-
23005-074 REGULATOR, FUELREGULATOR, FUEL
-
33004-436 BOLTBOLT
-
43005-078 PIPE, DELIVERYPIPE, DELIVERY
-
53005-075 INJECTOR, FUEL - ASSEMBLY CIRCLEINJECTOR, FUEL - ASSEMBLY CIRCLE
-
53005-076 INJECTOR, FUEL - ASSEMBLY SQUAREINJECTOR, FUEL - ASSEMBLY SQUARE
-
53005-077 INJECTOR, FUEL - ASSEMBLY TRIANGLEINJECTOR, FUEL - ASSEMBLY TRIANGLE
-
63005-103 HOSEHOSE
-
73005-320 SCREWSCREW
-
83005-079 PIPE, FUEL INLETPIPE, FUEL INLET
-
93004-193 CLAMP, HOSECLAMP, HOSE
