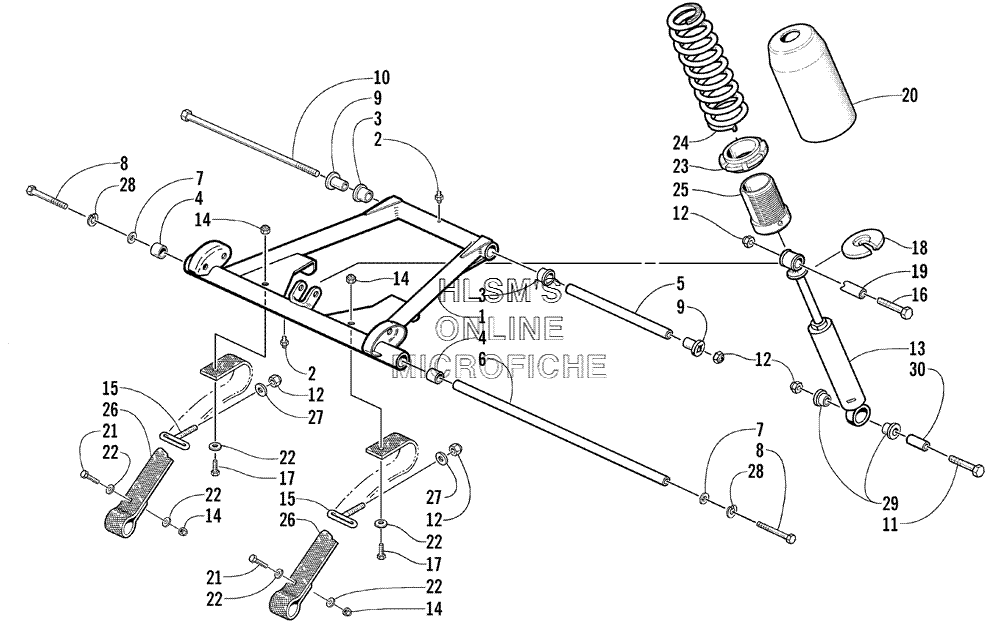

REAR SUSPENSION FRONT ARM ASSEMBLY для Arctic Cat Pantera 550 - 2000 года выпуска`
-
№АртикулНазвание
-
10704-392 ARM, FRONT SUSPENSION (INC. 2-4)ARM, FRONT SUSPENSION (INC. 2-4)
-
29916-963 . FITTING, GREASE. FITTING, GREASE
-
30104-386 . BUSHING, FRONT ARM. BUSHING, FRONT ARM
-
40603-083 . BEARING. BEARING
-
50604-194 TUBE, AXLETUBE, AXLE
-
60114-163 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
70623-044 WASHERWASHER
-
88012-224 SCREW, CAPSCREW, CAP
-
90603-061 AXLE, SERRATEDAXLE, SERRATED
-
100623-782 SCREW, CAPSCREW, CAP
-
118002-228 SCREW, CAPSCREW, CAP
-
128040-486 NUT, LOCKNUT, LOCK
-
131604-369 SHOCK ABSORBER, FRONT ARMSHOCK ABSORBER, FRONT ARM
-
148040-366 NUT, LOCKNUT, LOCK
-
150704-256 ADJUSTER, FRONT ARMADJUSTER, FRONT ARM
-
168002-226 SCREW, CAPSCREW, CAP
-
178002-040 SCREW, CAPSCREW, CAP
-
180603-033 RETAINER, SPRINGRETAINER, SPRING
-
190603-030 AXLE, SERRATEDAXLE, SERRATED
-
200604-590 COVER, SHOCKCOVER, SHOCK
-
218002-042 SCREW, CAPSCREW, CAP
-
220623-184 WASHERWASHER
-
230603-259 NUT, ADJUSTERNUT, ADJUSTER
-
240603-860 SPRING, COMPRESSIONSPRING, COMPRESSION
-
250603-147 SLEEVE, THREADEDSLEEVE, THREADED
-
261604-458 STRAP, LIMITERSTRAP, LIMITER
-
278050-277 WASHERWASHER
-
288051-277 WASHER, LOCKWASHER, LOCK
-
291604-384 BUSHING, SHOCKBUSHING, SHOCK
-
301604-329 AXLE, PIVOT - SHOCKAXLE, PIVOT - SHOCK
