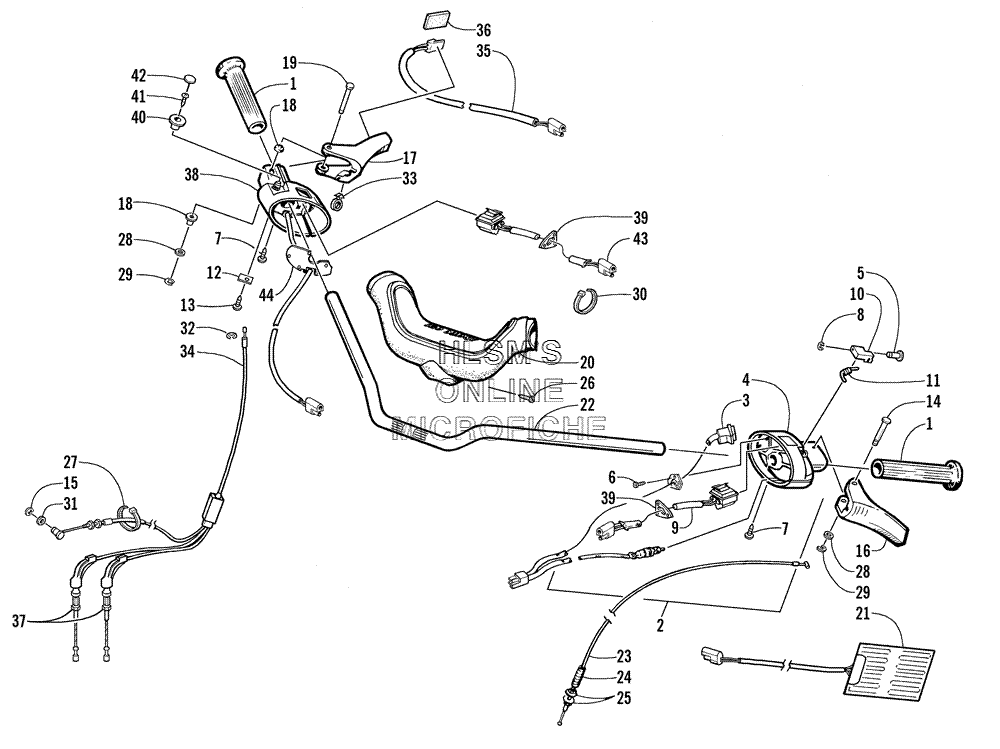

HANDLEBAR AND CONTROLS для Arctic Cat Pantera 440 (International) - 2000 года выпуска
-
№АртикулНазвание
-
10117-793 GRIP, HANDLEBARGRIP, HANDLEBAR
-
20609-393 SWITCH, BRAKE - ASSEMBLY (INC. 3-13 AND ONE NO 39)SWITCH, BRAKE - ASSEMBLY (INC. 3-13 AND ONE NO 39)
-
30609-452 . SWITCH, DIMMER - BRAKE. SWITCH, DIMMER - BRAKE
-
40609-478 . HOUSING, BRAKE SWITCH - ON/OFF. HOUSING, BRAKE SWITCH - ON/OFF
-
50609-050 PIN, ACTUATORPIN, ACTUATOR
-
60609-312 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
70609-085 SCREW, MACHINESCREW, MACHINE
-
80609-051 RING, RETAININGRING, RETAINING
-
90609-385 CONTROL, HANDWARMERCONTROL, HANDWARMER
-
100609-314 ACTUATOR, BRAKE - PARKINGACTUATOR, BRAKE - PARKING
-
110609-313 SPRING, BRAKE - PARKINGSPRING, BRAKE - PARKING
-
120609-319 . CLAMP, HARNESS - SINGLE. CLAMP, HARNESS - SINGLE
-
130609-321 . SCREW, SELF-TAPPING. SCREW, SELF-TAPPING
-
140609-315 AXLE, LEVER - BRAKEAXLE, LEVER - BRAKE
-
150124-057 E-RINGE-RING
-
160609-266 LEVER, BRAKELEVER, BRAKE
-
170609-363 LEVER, THROTTLELEVER, THROTTLE
-
180609-038 SEAL, THROTTLESEAL, THROTTLE
-
190609-317 AXLE, LEVER - THROTTLEAXLE, LEVER - THROTTLE
-
200616-995 PAD, HANDLEBARPAD, HANDLEBAR
-
210609-374 ELEMENT, HANDWARMERELEMENT, HANDWARMER
-
220605-308 HANDLEBARHANDLEBAR
-
230687-089 CABLE, BRAKECABLE, BRAKE
-
240109-194 SPRING, BRAKE CABLESPRING, BRAKE CABLE
-
250123-406 NUT, FLANGENUT, FLANGE
-
260623-128 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
270123-811 TIE, CABLETIE, CABLE
-
280609-036 WASHERWASHER
-
290609-040 RING, RETAININGRING, RETAINING
-
300123-788 TIE, CABLE - 7 IN.TIE, CABLE - 7 IN.
-
310124-056 WASHERWASHER
-
320123-231 RING, RETAININGRING, RETAINING
-
330623-262 CLIP, WIRECLIP, WIRE
-
340687-059 CABLE, THROTTLECABLE, THROTTLE
-
350609-372 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
360617-248 PAD, INSULATORPAD, INSULATOR
-
370623-464 NUT, LOCKING - THROTTLE CABLENUT, LOCKING - THROTTLE CABLE
-
380609-391 CONTROL,THROTTLE (INC. 6, 12,13, ONE NO. 7, ANA 40-44)CONTROL,THROTTLE (INC. 6, 12,13, ONE NO. 7, ANA 40-44)
-
390609-378 PLATE, COVERPLATE, COVER
-
400609-282 KNOB, EMERGENCY STOPKNOB, EMERGENCY STOP
-
410623-215 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
420609-283 DECAL, MARK PLATEDECAL, MARK PLATE
-
430609-384 CONTROL, THUMBWARMERCONTROL, THUMBWARMER
-
440609-316 COVER, THROTTLE SWITCHCOVER, THROTTLE SWITCH
