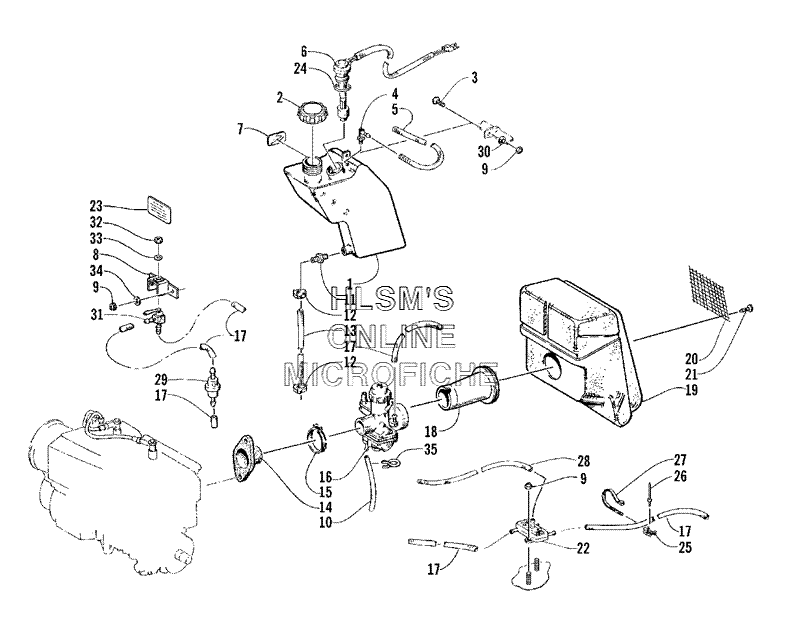

OIL TANK- CARBURETOR- FUEL PUMP- AND SILENCER для Arctic Cat Bearcat 340 - 2000 года выпуска`
-
№АртикулНазвание
-
10670-239 TANK, OILTANK, OIL
-
20670-341 CAP, TANKCAP, TANK
-
38017-580 SCREW, MACHINESCREW, MACHINE
-
40670-242 VENT, TANKVENT, TANK
-
50610-010 HOSE, VENTHOSE, VENT
-
60609-224 SENSOR, LOW OIL (INC. 24)SENSOR, LOW OIL (INC. 24)
-
71611-564 DECAL, OIL TANKDECAL, OIL TANK
-
80670-284 BRACKET, MOUNTINGBRACKET, MOUNTING
-
98041-366 NUT, LOCKNUT, LOCK
-
100610-279 HOSE, DRAINHOSE, DRAIN
-
110670-117 FITTING, OUTLETFITTING, OUTLET
-
120124-045 CLAMP, HOSECLAMP, HOSE
-
130610-011 HOSE, OIL LINE - 25 FTHOSE, OIL LINE - 25 FT
-
140115-544 FLANGE, CARBURETORFLANGE, CARBURETOR
-
150109-709 CLAMPCLAMP
-
160670-337 CARBURETOR VM32-290CARBURETOR VM32-290
-
170610-017 HOSE, GASLINE - 100 FTHOSE, GASLINE - 100 FT
-
170610-008 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
180670-105 BOOT, CARBURETORBOOT, CARBURETOR
-
190770-398 SILENCER, AIRSILENCER, AIR
-
200670-155 SCREEN, AIR-INTAKESCREEN, AIR-INTAKE
-
210623-165 CLIP, SCREEN RETAININGCLIP, SCREEN RETAINING
-
220115-481 PUMP, FUELPUMP, FUEL
-
230611-978 DECAL, FUEL SHUT-OFF VALVEDECAL, FUEL SHUT-OFF VALVE
-
240609-237 SEAL, GROMMET - OIL SENSORSEAL, GROMMET - OIL SENSOR
-
250623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
268060-428 RIVETRIVET
-
270123-788 TIE, CABLETIE, CABLE
-
280610-007 HOSE, IMPULSE - 25 FTHOSE, IMPULSE - 25 FT
-
290510-335 FILTER, IN-LINE GASFILTER, IN-LINE GAS
-
308050-217 WASHERWASHER
-
310670-144 VALVE, FUEL SHUT-OFF (INC. 32-33)VALVE, FUEL SHUT-OFF (INC. 32-33)
-
320623-287 . NUT. NUT
-
330623-288 . WASHER. WASHER
-
348050-212 WASHERWASHER
-
350623-652 CLAMP, HOSECLAMP, HOSE
