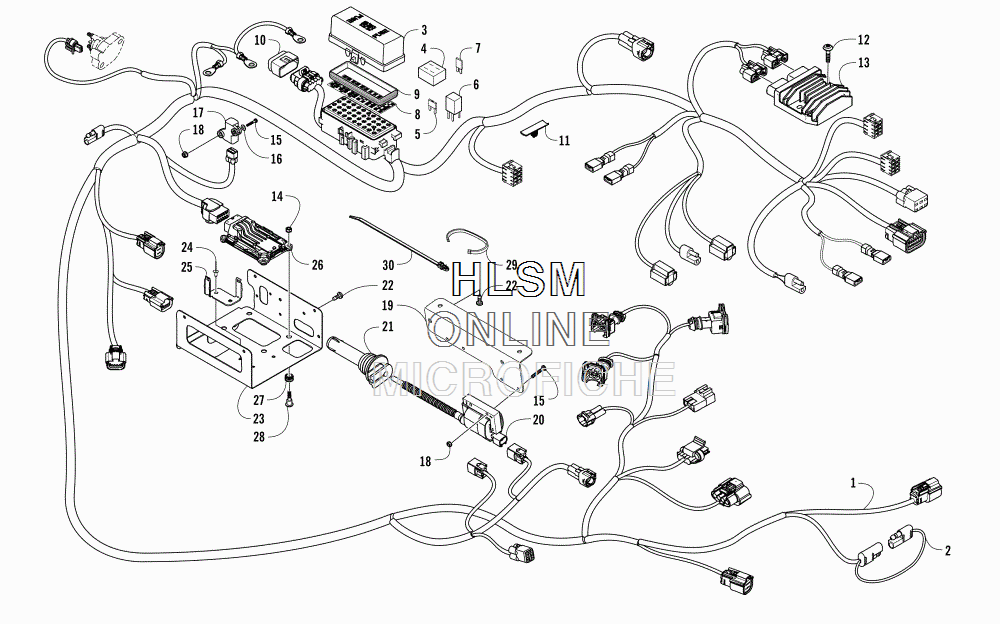

WIRING HARNESS ASSEMBLY для Arctic Cat WILDCAT TRAIL XT EPS RED - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    0486-587 HARNESS, MAIN (INC. 2-11)
    HARNESS, MAIN (INC. 2-11)
  • 2
    0486-164 ...TETHER, ACCESSORY CONNECTOR
    ...TETHER, ACCESSORY CONNECTOR
  • 3
    0430-085 ...COVER, FUSE BLOCK
    ...COVER, FUSE BLOCK
  • 4
    0430-037 ...HOLDER, FUSE
    ...HOLDER, FUSE
  • 5
    0430-032 ...FUSE - 10 AMP
    ...FUSE - 10 AMP
  • 5
    0430-031 ...FUSE - 15 AMP
    ...FUSE - 15 AMP
  • 5
    0430-030 ...FUSE - 30 AMP
    ...FUSE - 30 AMP
  • 6
    0430-045 ...RELAY (4-PIN) 20 AMP
    ...RELAY (4-PIN) 20 AMP
  • 7
    0401-100 ...CIRCUIT BREAKER, MINI - 15 AMP
    ...CIRCUIT BREAKER, MINI - 15 AMP
  • 8
    5411-487 ...DECAL, FUSE BLOCK
    ...DECAL, FUSE BLOCK
  • 9
    0430-086 ...SEAL
    ...SEAL
  • 10
    0430-103 ...COVER, DIAGNOSTICS CONNECTOR
    ...COVER, DIAGNOSTICS CONNECTOR
  • 11
    0430-102 ...CLIP, ROUTING
    ...CLIP, ROUTING
  • 12
    8476-625 SCREW, CAP
    SCREW, CAP
  • 13
    0824-072 REGULATOR, VOLTAGE
    REGULATOR, VOLTAGE
  • 14
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 15
    8468-425 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    0123-802 WASHER
    WASHER
  • 17
    0409-064 SENSOR, TILT
    SENSOR, TILT
  • 18
    0423-493 NUT W/WASHER
    NUT W/WASHER
  • 19
    4406-315 BRACKET, COIL
    BRACKET, COIL
  • 20
    0824-079 COIL, IGNITION - ASSEMBLY (INC. 21)
    COIL, IGNITION - ASSEMBLY (INC. 21)
  • 21
    0824-075 ...CAP, SPARK PLUG
    ...CAP, SPARK PLUG
  • 22
    0423-538 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 23
    5506-240 TRAY, ELECTRICAL - BLACK
    TRAY, ELECTRICAL - BLACK
  • 24
    8060-686 RIVET
    RIVET
  • 25
    0745-388 BRACKET MOUNTING- PDM
    BRACKET MOUNTING- PDM
  • 26
    0530-196 ECM
    ECM
  • 27
    0423-086 GROMMET
    GROMMET
  • 28
    1423-217 BOLT, SHOULDER
    BOLT, SHOULDER
  • 29
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 30
    0423-075 TIE, CABLE - PUSH MOUNT
    TIE, CABLE - PUSH MOUNT
