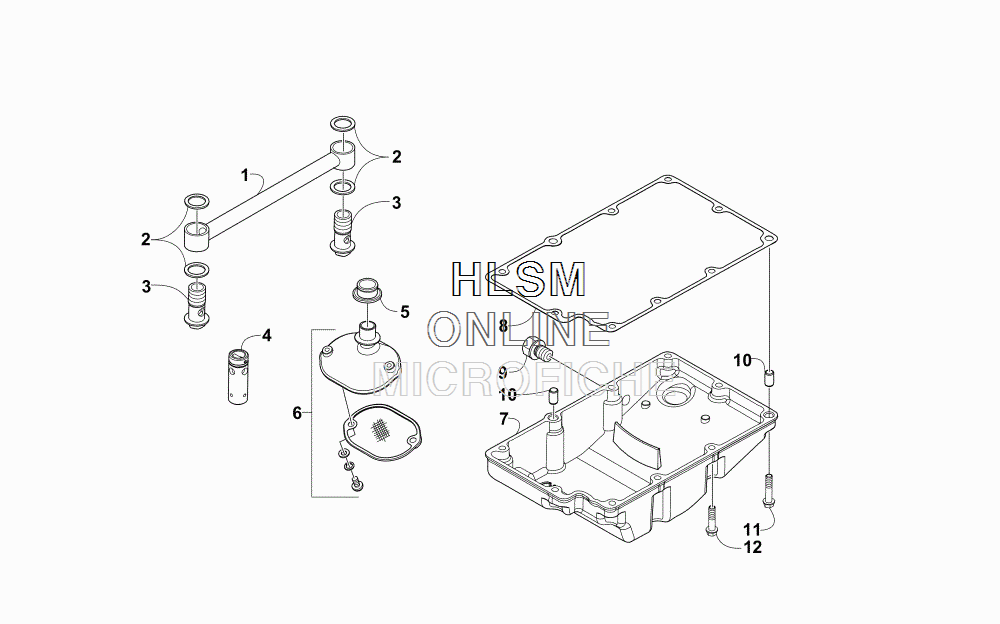

OIL PAN AND STRAINER ASSEMBLY для Arctic Cat WILDCAT TRAIL RED - 2017 года выпуска`
-
№АртикулНазвание
-
13306-917 PIPE, OILPIPE, OIL
-
23306-922 SEALSEAL
-
33306-921 BOLT B OIL PASSBOLT B OIL PASS
-
43306-916 VALVE, OIL RELIEF - ASSEMBLYVALVE, OIL RELIEF - ASSEMBLY
-
53306-919 SEAL, STRAINERSEAL, STRAINER
-
63306-918 STRAINER, FUEL - ASSEMBLYSTRAINER, FUEL - ASSEMBLY
-
73306-974 PAN, OILPAN, OIL
-
83306-973 GASKET, CRANKCASE - RIGHT SIDEGASKET, CRANKCASE - RIGHT SIDE
-
93306-925 PLUG, DRAIN - W/WASHERPLUG, DRAIN - W/WASHER
-
103303-341 PIN, DOWELPIN, DOWEL
-
113305-945 BOLT FLANGE SH 6X32BOLT FLANGE SH 6X32
-
123303-384 BOLT, FLANGEBOLT, FLANGE
