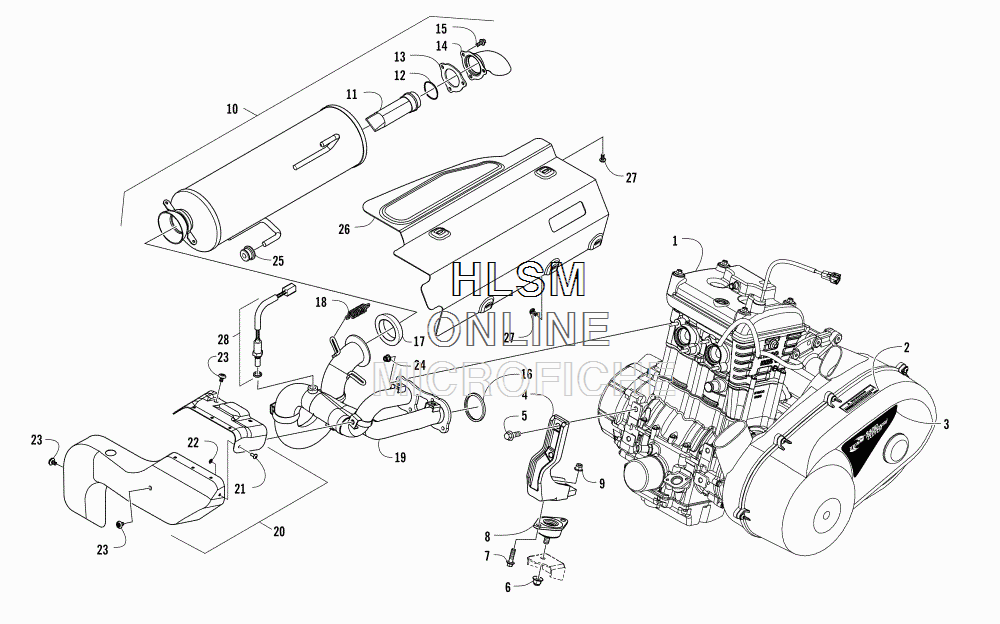

ENGINE AND EXHAUST для Arctic Cat WILDCAT TRAIL LIME GREEN - 2017 года выпуска`
-
№АртикулНазвание
-
13306-810 ENGINE, 700 ZKENGINE, 700 ZK
-
20411-426 DECAL, WARNINGDECAL, WARNING
-
32411-287 DECAL, RAPID RESONSEDECAL, RAPID RESONSE
-
40508-026 MOUNT, ENGINE - FRONT - RIGHTMOUNT, ENGINE - FRONT - RIGHT
-
40508-027 MOUNT, ENGINE - FRONT - LEFTMOUNT, ENGINE - FRONT - LEFT
-
58409-030 SCREW, CAPSCREW, CAP
-
68427-002 NUT, LOCKNUT, LOCK
-
78408-835 SCREW, CAPSCREW, CAP
-
80408-064 MOUNT, ENGINE - W/STUDMOUNT, ENGINE - W/STUD
-
98427-802 NUTNUT
-
100512-679 MUFFLER - ASSEMBLY (INC. 11-15)MUFFLER - ASSEMBLY (INC. 11-15)
-
110512-647 ...SPARK ARRESTER ASSEMBLY...SPARK ARRESTER ASSEMBLY
-
121423-246 ...WASHER, WAVE...WASHER, WAVE
-
130412-675 ...GASKET, SPARK ARRESTER...GASKET, SPARK ARRESTER
-
140512-760 ...TAIL PIPE - ASSEMBLY...TAIL PIPE - ASSEMBLY
-
158408-616 ...SCREW, CAP...SCREW, CAP
-
160412-647 SEAL, EXHAUST PIPESEAL, EXHAUST PIPE
-
171612-323 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
180612-471 SPRING, EXTENSIONSPRING, EXTENSION
-
190512-881 MANIFOLD ASSEMBLYMANIFOLD ASSEMBLY
-
200512-794 SHIELD, HEAT - ASSEMBLY (INC. 21)SHIELD, HEAT - ASSEMBLY (INC. 21)
-
211623-130 ...RIVET...RIVET
-
228050-222 WASHERWASHER
-
238477-610 SCREW, MACHINESCREW, MACHINE
-
248424-602 NUTNUT
-
251412-021 GROMMETGROMMET
-
260412-774 SHIELD, HEAT - MUFFLERSHIELD, HEAT - MUFFLER
-
271623-490 SCREW, CAPSCREW, CAP
-
280430-135 SENSOR, OXYGENSENSOR, OXYGEN
