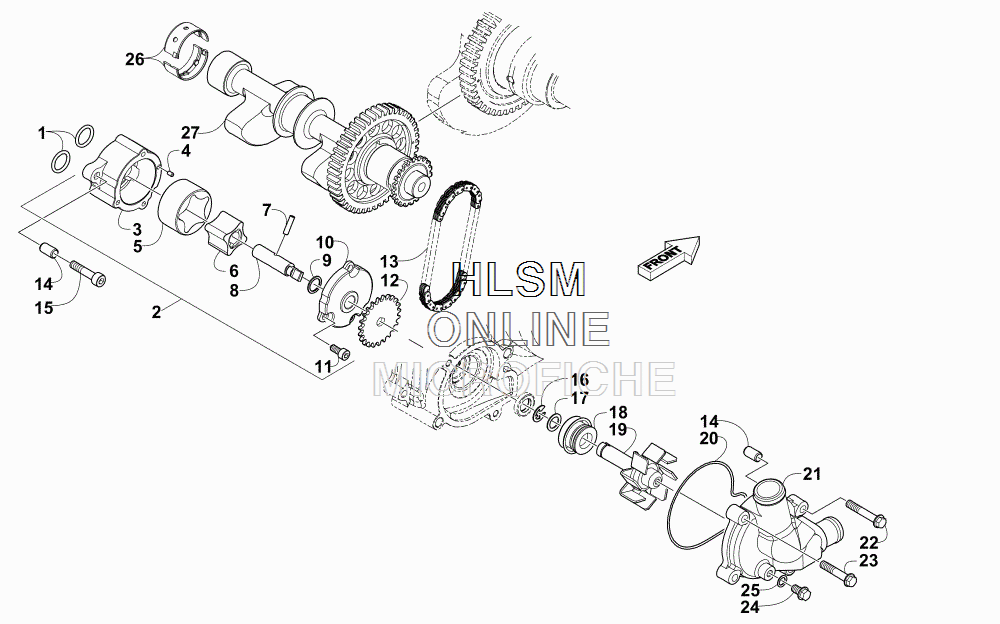

OIL PUMP AND WATER PUMP ASSEMBLIES для Arctic Cat WILDCAT SPORT XT EPS BLACK - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    3307-035 O-RING
    O-RING
  • 2
    3307-013 OIL PUMP ASSEMBLY (INC. 3-11)
    OIL PUMP ASSEMBLY (INC. 3-11)
  • 3
    3307-019 ...BODY, OIL PUMP
    ...BODY, OIL PUMP
  • 4
    3307-036 ...PIN, DOWEL
    ...PIN, DOWEL
  • 5
    3307-020 ...ROTOR, OIL PUMP - OUTER
    ...ROTOR, OIL PUMP - OUTER
  • 6
    3307-021 ...ROTOR, OIL PUMP - INNER
    ...ROTOR, OIL PUMP - INNER
  • 7
    0812-036 ...PIN, DRIVEN GEAR
    ...PIN, DRIVEN GEAR
  • 8
    3306-797 ...SHAFT, OIL PUMP
    ...SHAFT, OIL PUMP
  • 9
    3307-017 ...WASHER
    ...WASHER
  • 10
    3307-014 ...COVER, OIL PUMP
    ...COVER, OIL PUMP
  • 11
    3307-015 ...BOLT
    ...BOLT
  • 12
    3307-016 SPROCKET, OIL PUMP DRIVE
    SPROCKET, OIL PUMP DRIVE
  • 13
    3307-018 CHAIN, OIL PUMP
    CHAIN, OIL PUMP
  • 14
    3303-341 PIN, DOWEL
    PIN, DOWEL
  • 15
    3303-398 BOLT SOCKET 6X25
    BOLT SOCKET 6X25
  • 16
    3307-038 E-RING
    E-RING
  • 17
    3307-033 WASHER, THRUST
    WASHER, THRUST
  • 18
    3307-083 SEAL, MECHANICAL
    SEAL, MECHANICAL
  • 19
    3307-024 SHAFT, IMPELLER
    SHAFT, IMPELLER
  • 20
    3307-023 O-RING
    O-RING
  • 21
    3306-798 COVER, WATER PUMP
    COVER, WATER PUMP
  • 22
    3303-385 BOLT FLANGE SH 6X28
    BOLT FLANGE SH 6X28
  • 23
    3303-386 BOLT, FLANGE
    BOLT, FLANGE
  • 24
    3304-186 BOLT FLANGE SH 6X10
    BOLT FLANGE SH 6X10
  • 25
    3304-049 WASHER
    WASHER
  • 26
    3307-010 BEARING, BALANCER SHAFT - BROWN
    BEARING, BALANCER SHAFT - BROWN
  • 26
    3307-121 BEARING, BALANCER SHAFT - GREEN
    BEARING, BALANCER SHAFT - GREEN
  • 26
    3307-122 BEARING, BALANCER SHAFT - YELLOW
    BEARING, BALANCER SHAFT - YELLOW
  • 27
    3307-012 SHAFT, BALANCER
    SHAFT, BALANCER
