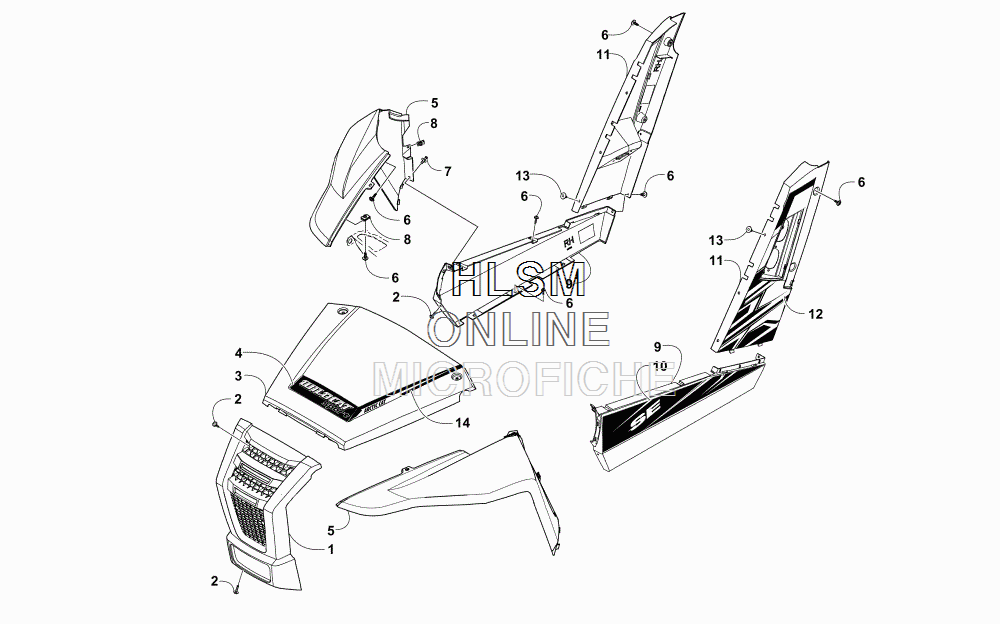

FRONT AND SIDE PANEL ASSEMBLIES для Arctic Cat WILDCAT SPORT SE EPS BLACK - 2017 года выпуска`
-
№АртикулНазвание
-
17506-682 FASCIA, FRONT - ROUTEDFASCIA, FRONT - ROUTED
-
20423-609 SCREW, MACHINESCREW, MACHINE
-
34406-269 PANEL, HOOD - BLACKPANEL, HOOD - BLACK
-
46411-043 DECAL, "WILDCAT SPORT" - FRONTDECAL, "WILDCAT SPORT" - FRONT
-
55506-988 FENDER, FRONT - RIGHT - BLACKFENDER, FRONT - RIGHT - BLACK
-
55506-989 FENDER, FRONT - LEFT - BLACKFENDER, FRONT - LEFT - BLACK
-
61423-198 SCREW, MACHINESCREW, MACHINE
-
70623-362 CLIP, RETAININGCLIP, RETAINING
-
80423-577 CLIP, U-NUTCLIP, U-NUT
-
94406-280 PANEL, SIDE - LOWER RIGHT - BLACKPANEL, SIDE - LOWER RIGHT - BLACK
-
94406-281 PANEL, SIDE - LOWER LEFT - BLACKPANEL, SIDE - LOWER LEFT - BLACK
-
106411-058 DECAL, LOWER SIDE PANEL - RIGHTDECAL, LOWER SIDE PANEL - RIGHT
-
106411-059 DECAL, LOWER SIDE PANEL - LEFTDECAL, LOWER SIDE PANEL - LEFT
-
115506-574 PANEL, REAR SIDE - RIGHT - GLOSS BLACKPANEL, REAR SIDE - RIGHT - GLOSS BLACK
-
115506-575 PANEL, REAR SIDE - LEFT - GLOSS BLACKPANEL, REAR SIDE - LEFT - GLOSS BLACK
-
126411-062 DECAL, PILLAR - RIGHTDECAL, PILLAR - RIGHT
-
126411-063 DECAL, PILLAR - LEFTDECAL, PILLAR - LEFT
-
130623-544 PLUGPLUG
-
146411-054 DECAL, HOOD - SIDE - RIGHTDECAL, HOOD - SIDE - RIGHT
-
146411-055 DECAL, HOOD - SIDE - LEFTDECAL, HOOD - SIDE - LEFT
