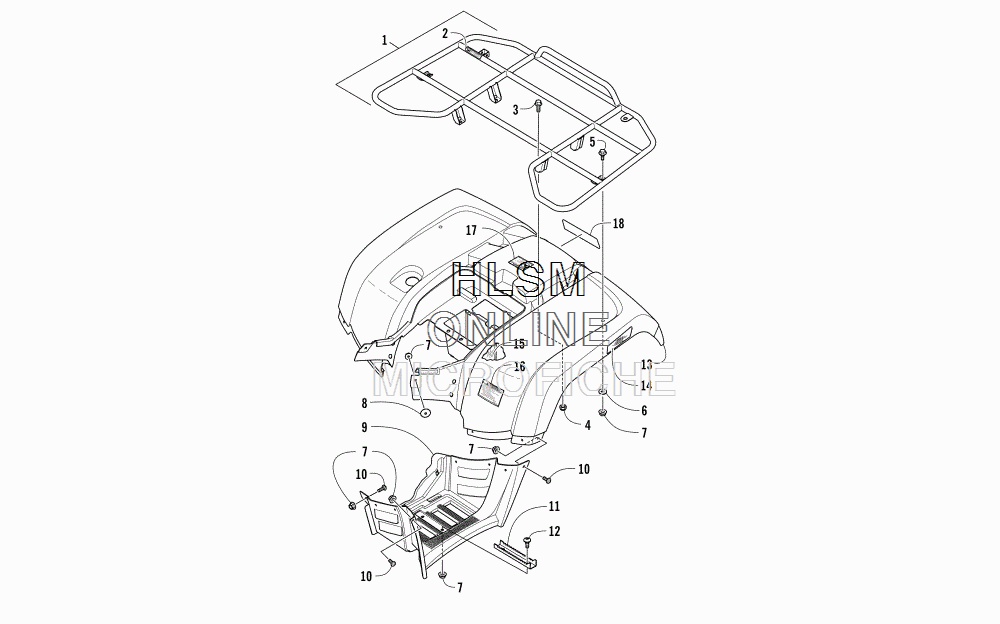

REAR RACK- BODY PANEL- AND FOOTWELL ASSEMBLIES для Arctic Cat VLX 700 CAMO - 2017 года выпуска`
-
№АртикулНазвание
-
18506-335 RACK, REAR - ASSEMBLY (INC. 2)RACK, REAR - ASSEMBLY (INC. 2)
-
20411-648 ...DECAL, WARNING - LOAD...DECAL, WARNING - LOAD
-
38410-830 SCREW, CAPSCREW, CAP
-
48432-802 NUT, HEXNUT, HEX
-
50423-654 SCREW, SHOULDERSCREW, SHOULDER
-
68050-222 WASHERWASHER
-
78427-603 NUT, LOCKNUT, LOCK
-
80423-101 SCREW, SHOULDERSCREW, SHOULDER
-
91406-356 FOOTWELL - RIGHTFOOTWELL - RIGHT
-
92406-429 FOOTWELL - LEFTFOOTWELL - LEFT
-
100423-419 SCREW, MACHINESCREW, MACHINE
-
115506-497 FOOTPEG - BLACKFOOTPEG - BLACK
-
120423-355 SCREW, SHOULDERSCREW, SHOULDER
-
138506-639 PANEL, FENDER - ASSEMBLY - CAMO (INC. 14-17)PANEL, FENDER - ASSEMBLY - CAMO (INC. 14-17)
-
141411-592 ...DECAL, REFLECTOR - RIGHT...DECAL, REFLECTOR - RIGHT
-
141411-593 ...DECAL, REFLECTOR - LEFT...DECAL, REFLECTOR - LEFT
-
150470-658 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
164411-836 ...DECAL, WARNING - TIRE PRESSURE...DECAL, WARNING - TIRE PRESSURE
-
171411-809 ...DECAL, WARNING - PASSENGER...DECAL, WARNING - PASSENGER
-
185411-507 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
