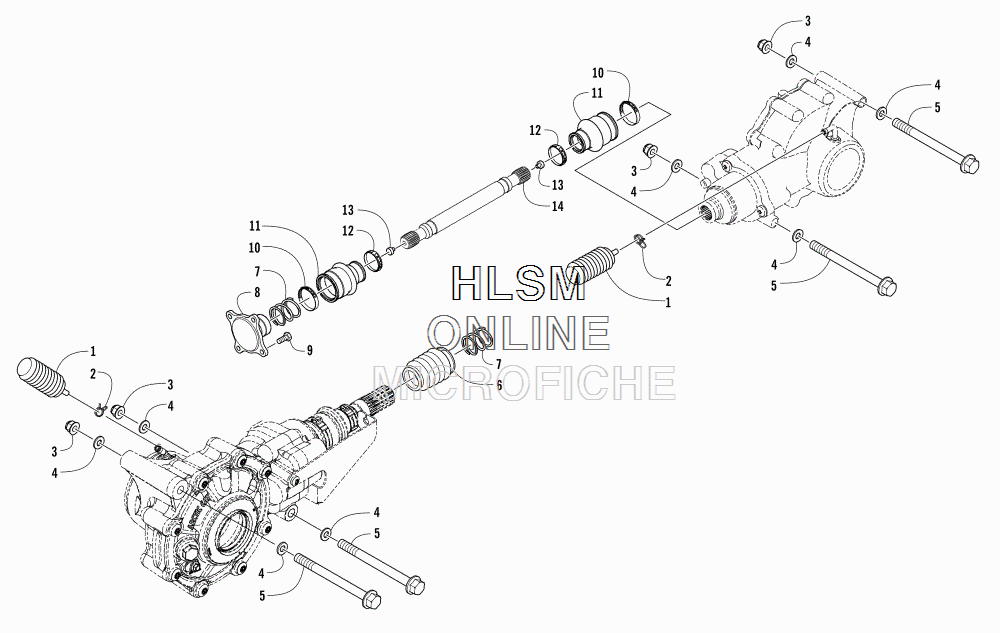

DRIVE TRAIN ASSEMBLY для Arctic Cat VLX 700 BLACK - 2017 года выпуска`
-
№АртикулНазвание
-
11402-620 BLADDERBLADDER
-
20423-315 CLAMP, HOSECLAMP, HOSE
-
31423-335 NUT, LOCKNUT, LOCK
-
40423-426 WASHERWASHER
-
50423-404 SCREW, CAPSCREW, CAP
-
60402-966 BOOT, PROP SHAFT (LONG)BOOT, PROP SHAFT (LONG)
-
71402-026 SPRINGSPRING
-
82402-193 FLANGE, OUTPUTFLANGE, OUTPUT
-
98408-820 SCREW, CAPSCREW, CAP
-
100423-393 CLAMPCLAMP
-
110402-985 BOOTBOOT
-
120423-411 CLAMPCLAMP
-
130673-618 BUMPER, DRIVESHAFTBUMPER, DRIVESHAFT
-
141402-233 SHAFT, PROPELLERSHAFT, PROPELLER
