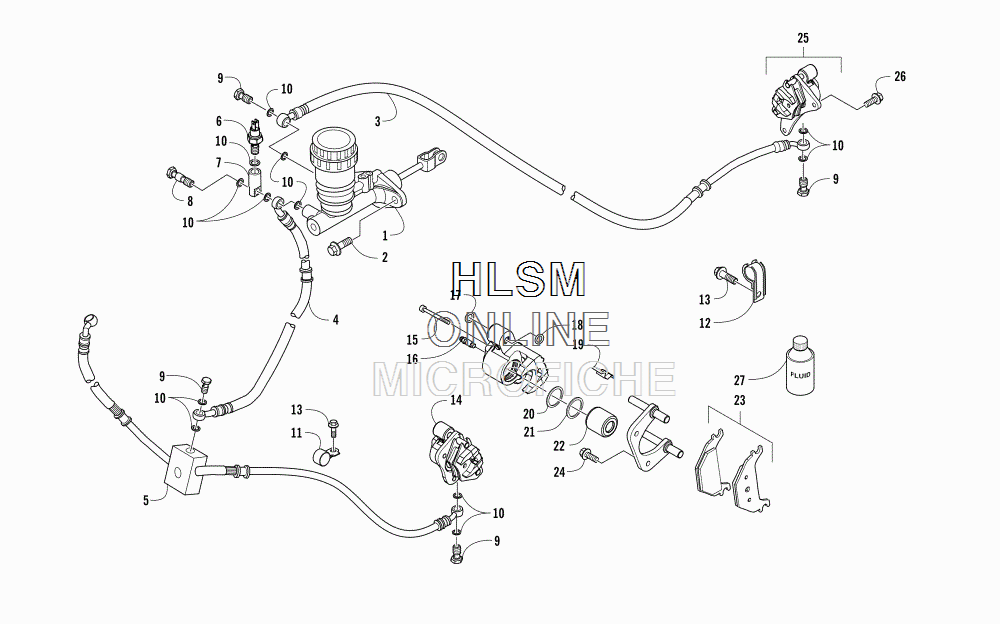

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat PROWLER 500 GREEN - 2017 года выпуска`
-
№АртикулНазвание
-
13307-365 MASTER CYLINDERMASTER CYLINDER
-
23305-749 BOLT FLANGE 8X28BOLT FLANGE 8X28
-
33307-362 HOSE, BRAKE - REARHOSE, BRAKE - REAR
-
43307-367 HOSE, BRAKE - FRONTHOSE, BRAKE - FRONT
-
53307-368 HOSE, BRAKE - ASSEMBLY - FRONT - LH/RHHOSE, BRAKE - ASSEMBLY - FRONT - LH/RH
-
63313-820 SWITCH, BRAKESWITCH, BRAKE
-
73307-366 ADAPTOR, OIL PRESSURE SENSORADAPTOR, OIL PRESSURE SENSOR
-
83304-674 BOLT, OIL - 10 X 33BOLT, OIL - 10 X 33
-
93307-067 BOLT, BANJO-FITTINGBOLT, BANJO-FITTING
-
103303-284 WASHER, CRUSHWASHER, CRUSH
-
113307-369 CLAMPCLAMP
-
123307-364 CLAMPCLAMP
-
133304-553 BOLT, FLANGE - 6 X 12BOLT, FLANGE - 6 X 12
-
143307-433 CALIPER - FRONT - RIGHT (INC. 15-23)CALIPER - FRONT - RIGHT (INC. 15-23)
-
143307-435 CALIPER - FRONT - LEFT (INC. 15-23)CALIPER - FRONT - LEFT (INC. 15-23)
-
153304-326 ...PIN...PIN
-
163304-330 ...VALVE, BLEED...VALVE, BLEED
-
173304-322 ...BOOT...BOOT
-
183304-329 ...BUSHING...BUSHING
-
193304-315 ...SPRING...SPRING
-
203305-380 ...SEAL, PISTON (FOOT BRAKE)...SEAL, PISTON (FOOT BRAKE)
-
213305-377 ...SEAL, DUST (FOOT BRAKE)...SEAL, DUST (FOOT BRAKE)
-
223304-314 ...PISTON (FOOT BRAKE)...PISTON (FOOT BRAKE)
-
233303-908 ...PAD, BRAKE - SET FRONT...PAD, BRAKE - SET FRONT
-
233307-443 ...PAD, BRAKE - SET REAR...PAD, BRAKE - SET REAR
-
243307-069 BOLT FLANGE 8X20BOLT FLANGE 8X20
-
253307-442 CALIPER - REAR (INC. 15-23)CALIPER - REAR (INC. 15-23)
-
263307-445 BOLT, FLANGEBOLT, FLANGE
-
275639-848 FLUID, BRAKE - 12 OZFLUID, BRAKE - 12 OZ
