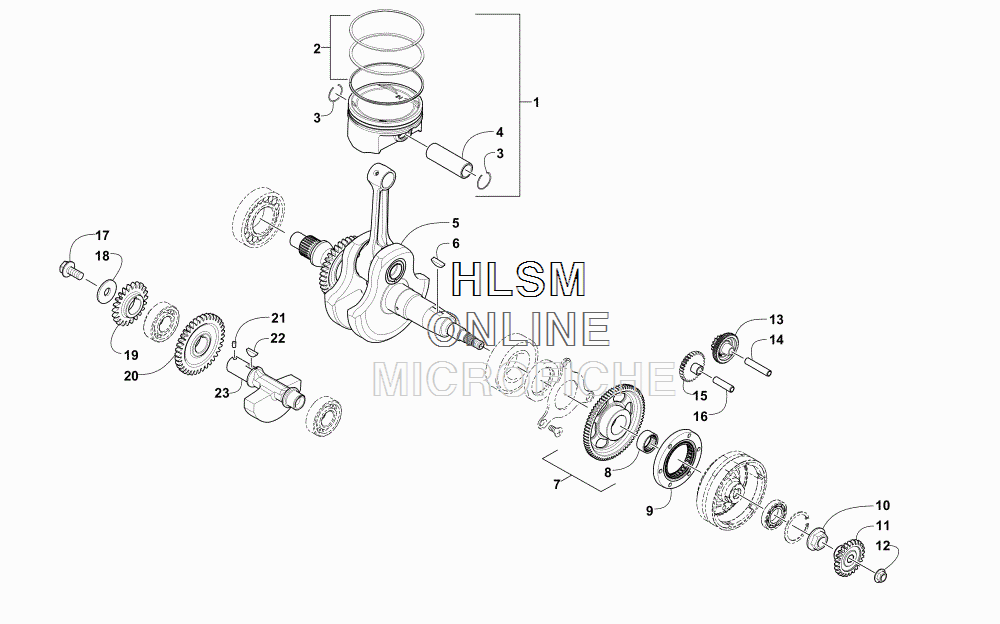

CRANKSHAFT- BALANCER- STARTER GEAR- AND PISTON ASSEMBLIES для Arctic Cat HDX 500 XT BLACK - 2017 года выпуска`
-
№АртикулНазвание
-
10805-333 PISTON SET (INC. 2-4)PISTON SET (INC. 2-4)
-
20805-320 ...RING, PISTON - SET...RING, PISTON - SET
-
30831-060 ...CIRCLIP...CIRCLIP
-
40805-023 ...PIN, PISTON...PIN, PISTON
-
50805-013 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
60829-039 KEYKEY
-
70815-023 GEAR, STARTER CLUTCH (INC. 8)GEAR, STARTER CLUTCH (INC. 8)
-
80832-069 ...BEARING...BEARING
-
90802-044 CLUTCH, ONE-WAY W/HUB - ASSEMBLYCLUTCH, ONE-WAY W/HUB - ASSEMBLY
-
103306-705 NUTNUT
-
110811-036 GEAR, DRIVEGEAR, DRIVE
-
123307-058 NUTNUT
-
130815-031 GEAR, STARTER IDLER - NO. 1GEAR, STARTER IDLER - NO. 1
-
140815-007 PIN, STARTER IDLER GEAR NO. 1PIN, STARTER IDLER GEAR NO. 1
-
150815-022 GEAR, STARTER IDLER - NO. 2GEAR, STARTER IDLER - NO. 2
-
160815-015 PIN, STARTER IDLER GEAR NO. 2PIN, STARTER IDLER GEAR NO. 2
-
170826-118 SCREW, CAPSCREW, CAP
-
180828-091 WASHERWASHER
-
190811-009 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
200811-006 GEAR, DRIVENGEAR, DRIVEN
-
213304-144 PIN, ALIGNMENTPIN, ALIGNMENT
-
220829-037 KEYKEY
-
230811-035 BALANCER, CRANKBALANCER, CRANK
