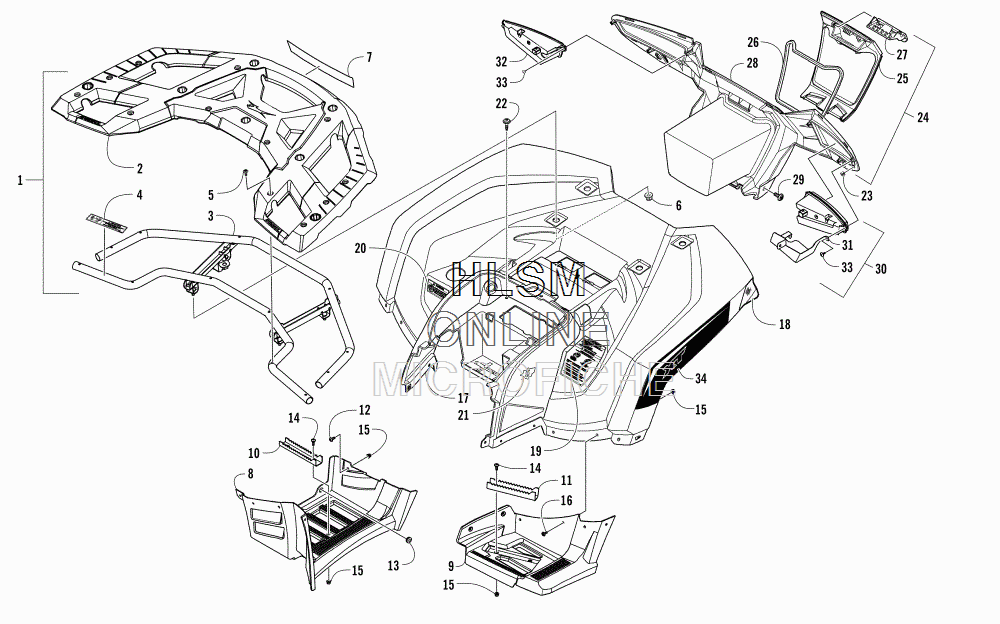

REAR RACK- BODY PANEL- FOOTWELL- AND TAILLIGHT ASSEMBLIES для Arctic Cat ALTERRA TRV 550 XT EPS WHITE - 2017 года выпуска`
-
№АртикулНазвание
-
15506-841 REAR RACK - ASSEMBLY (INC. 2-5)REAR RACK - ASSEMBLY (INC. 2-5)
-
25506-672 ...RACK, W/OVERMOLD...RACK, W/OVERMOLD
-
37506-025 ...REAR RACK...REAR RACK
-
44411-680 ...DECAL, WARNING - REAR RACK - ENGLISH...DECAL, WARNING - REAR RACK - ENGLISH
-
51423-301 ...SCREW, MACHINE...SCREW, MACHINE
-
68432-802 NUT, HEXNUT, HEX
-
75411-506 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
81506-813 FOOTWELL - RIGHTFOOTWELL - RIGHT
-
87506-455 FOOTWELL - LEFTFOOTWELL - LEFT
-
92406-042 FOOTWELL, REAR - RIGHTFOOTWELL, REAR - RIGHT
-
92406-043 FOOTWELL, REAR - LEFTFOOTWELL, REAR - LEFT
-
105506-497 FOOTPEG - BLACKFOOTPEG - BLACK
-
117506-625 FOOTPEG, REARFOOTPEG, REAR
-
128477-620 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
130423-678 GROMMETGROMMET
-
140423-355 SCREW, SHOULDERSCREW, SHOULDER
-
158427-603 NUT, LOCKNUT, LOCK
-
168477-616 SCREW, MACHINESCREW, MACHINE
-
177506-673 PANEL, FENDER - ASSEMBLY - WHITE (INC. 18-21)PANEL, FENDER - ASSEMBLY - WHITE (INC. 18-21)
-
184411-816 ...DECAL, REFLECTOR - RIGHT...DECAL, REFLECTOR - RIGHT
-
184411-817 ...DECAL, REFLECTOR - LEFT...DECAL, REFLECTOR - LEFT
-
195411-517 ...DECAL, WARNING - TIRE PRESSURE...DECAL, WARNING - TIRE PRESSURE
-
205411-514 ...DECAL, WARNING - PASSENGER...DECAL, WARNING - PASSENGER
-
210412-968 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
220423-609 SCREW, MACHINESCREW, MACHINE
-
231423-321 CLIP, RETAININGCLIP, RETAINING
-
247506-559 DOOR, STORAGE BOX - REAR - ASSEMBLY (INC. 25-28)DOOR, STORAGE BOX - REAR - ASSEMBLY (INC. 25-28)
-
254406-583 ...DOOR, STORAGE BOX - REAR...DOOR, STORAGE BOX - REAR
-
264406-839 ...SEAL...SEAL
-
274406-316 ...LATCH...LATCH
-
285406-202 ...FASCIA, REAR...FASCIA, REAR
-
291423-395 SCREW, MACHINESCREW, MACHINE
-
300509-111 TAILLIGHT ASSEMBLY W/SHIELD - LEFT (INC. 31)TAILLIGHT ASSEMBLY W/SHIELD - LEFT (INC. 31)
-
310412-895 ...SHIELD, TAILLIGHT - LEFT...SHIELD, TAILLIGHT - LEFT
-
320509-106 TAILLIGHT - RIGHTTAILLIGHT - RIGHT
-
331423-284 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
345411-540 DECAL, "XT" - FENDER REAR - RIGHT - WHITEDECAL, "XT" - FENDER REAR - RIGHT - WHITE
-
345411-541 DECAL, "XT" - FENDER REAR - LEFT - WHITEDECAL, "XT" - FENDER REAR - LEFT - WHITE
