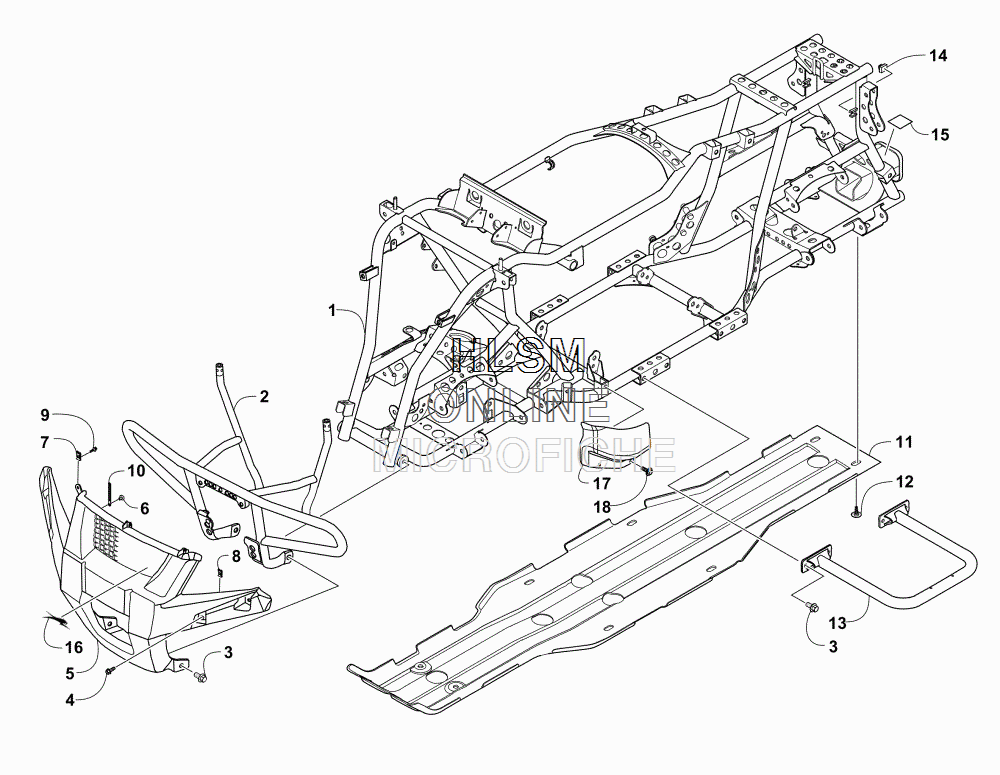

FRAME AND RELATED PARTS для Arctic Cat ALTERRA 500 GREEN - 2017 года выпуска`
-
№АртикулНазвание
-
13307-195 FRAME, MAINFRAME, MAIN
-
23307-186 BUMPER - FRONTBUMPER - FRONT
-
33304-543 BOLT FLANGE 8X16BOLT FLANGE 8X16
-
43304-587 BOLT WASHER 6X16BOLT WASHER 6X16
-
53307-145 FASCIA, BUMPERFASCIA, BUMPER
-
63304-586 BOLT WASHER 6X20BOLT WASHER 6X20
-
73303-267 CLIP, U-NUTCLIP, U-NUT
-
83304-061 NUT CLIP 5 MMNUT CLIP 5 MM
-
93304-029 BOLT, WASHER - 5 X 16BOLT, WASHER - 5 X 16
-
103304-157 CLAMP, ROUTINGCLAMP, ROUTING
-
113313-755 PLATE, SKIDPLATE, SKID
-
120423-545 SCREW, SHOULDERSCREW, SHOULDER
-
133313-351 FOOTRESTFOOTREST
-
143306-329 CUSHIONCUSHION
-
151411-077 DECAL, WARNING - TOWINGDECAL, WARNING - TOWING
-
164411-479 DECAL, AIRCATDECAL, AIRCAT
-
173313-844 PROTECTOR, HOSEPROTECTOR, HOSE
-
183305-783 BOLT WASHER 8X16BOLT WASHER 8X16
