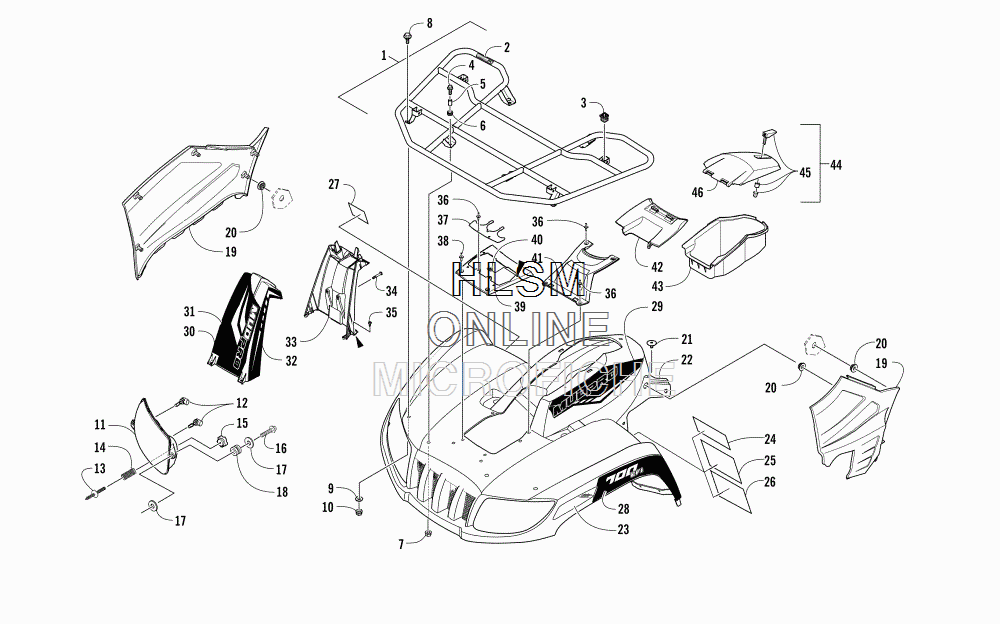

FRONT RACK- BODY PANEL- AND HEADLIGHT ASSEMBLIES для Arctic Cat 700 MUD PRO LTD EPS BLACK - 2017 года выпуска
-
№АртикулНазвание
-
12506-643 RACK, FRONT - ASSEMBLY (INC. 2-3)RACK, FRONT - ASSEMBLY (INC. 2-3)
-
20411-576 ...DECAL, WARNING - LOAD...DECAL, WARNING - LOAD
-
30441-592 ...BUSHING...BUSHING
-
48410-835 SCREW, CAPSCREW, CAP
-
50423-669 SPACERSPACER
-
60423-465 GROMMETGROMMET
-
78432-802 NUT, HEXNUT, HEX
-
80423-654 SCREW, SHOULDERSCREW, SHOULDER
-
98050-222 WASHERWASHER
-
108427-603 NUT, LOCKNUT, LOCK
-
110509-044 HEADLIGHT ASSEMBLY - RIGHT (INC. 12)HEADLIGHT ASSEMBLY - RIGHT (INC. 12)
-
110509-035 HEADLIGHT ASSEMBLY - LEFT (INC. 12)HEADLIGHT ASSEMBLY - LEFT (INC. 12)
-
120409-055 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
130423-514 STUD, ADJUSTER - HEADLIGHTSTUD, ADJUSTER - HEADLIGHT
-
140423-522 SPRING, ADJUSTERSPRING, ADJUSTER
-
150423-513 KNOB, ADJUSTERKNOB, ADJUSTER
-
160623-785 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
178050-217 WASHERWASHER
-
180423-447 GROMMETGROMMET
-
192406-300 PANEL, SIDE - LOWER - RIGHTPANEL, SIDE - LOWER - RIGHT
-
192406-419 PANEL, SIDE - LOWER - LEFTPANEL, SIDE - LOWER - LEFT
-
200423-678 GROMMETGROMMET
-
210423-101 SCREW, SHOULDERSCREW, SHOULDER
-
224506-972 PANEL, FENDER - ASSEMBLY - BLACK (INC. 23-27)PANEL, FENDER - ASSEMBLY - BLACK (INC. 23-27)
-
230411-818 ...DECAL, REFLECTOR - RIGHT - AMBER...DECAL, REFLECTOR - RIGHT - AMBER
-
230411-819 ...DECAL, REFLECTOR - LEFT - AMBER...DECAL, REFLECTOR - LEFT - AMBER
-
241411-574 ...DECAL, WARNING - OFF-ROAD ONLY...DECAL, WARNING - OFF-ROAD ONLY
-
251411-804 ...DECAL, WARNING - AGE (16)...DECAL, WARNING - AGE (16)
-
261411-932 ...DECAL, WARNING - GENERAL...DECAL, WARNING - GENERAL
-
274411-818 ...DECAL, WARNING - TURN/HILL...DECAL, WARNING - TURN/HILL
-
285411-800 DECAL, 700 EFI - RIGHTDECAL, 700 EFI - RIGHT
-
285411-801 DECAL, 700 EFI - LEFTDECAL, 700 EFI - LEFT
-
295411-802 DECAL, SIDE - UPPER RIGHT - BLACKDECAL, SIDE - UPPER RIGHT - BLACK
-
295411-803 DECAL, SIDE - UPPER LEFT - BLACKDECAL, SIDE - UPPER LEFT - BLACK
-
308506-001 COVER, INTAKE - FRONT - BLACKCOVER, INTAKE - FRONT - BLACK
-
315411-979 DECAL, INTAKE - FRONT - BLACKDECAL, INTAKE - FRONT - BLACK
-
325411-798 DECAL, SNORKEL - SIDE - RIGHTDECAL, SNORKEL - SIDE - RIGHT
-
325411-799 DECAL, SNORKEL - SIDE - LEFTDECAL, SNORKEL - SIDE - LEFT
-
338506-002 COVER, INTAKE - REAR - BLACKCOVER, INTAKE - REAR - BLACK
-
348468-645 SCREW, MACHINESCREW, MACHINE
-
358468-616 SCREW, MACHINESCREW, MACHINE
-
360623-362 CLIP, RETAININGCLIP, RETAINING
-
372416-100 SHIELD, SPLASHSHIELD, SPLASH
-
380423-535 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
392516-170 COVER, ACCESSCOVER, ACCESS
-
400423-577 CLIP, U-NUTCLIP, U-NUT
-
411406-484 COVER, STEERING POSTCOVER, STEERING POST
-
420470-513 COVER, STORAGE BOXCOVER, STORAGE BOX
-
431406-573 BOX, STORAGEBOX, STORAGE
-
442506-234 LID, STORAGE BOX - W/LATCH (INC. 45-46)LID, STORAGE BOX - W/LATCH (INC. 45-46)
-
451406-599 ...LATCH, STORAGE BOX...LATCH, STORAGE BOX
-
460470-514 ...LID, STORAGE BOX...LID, STORAGE BOX
