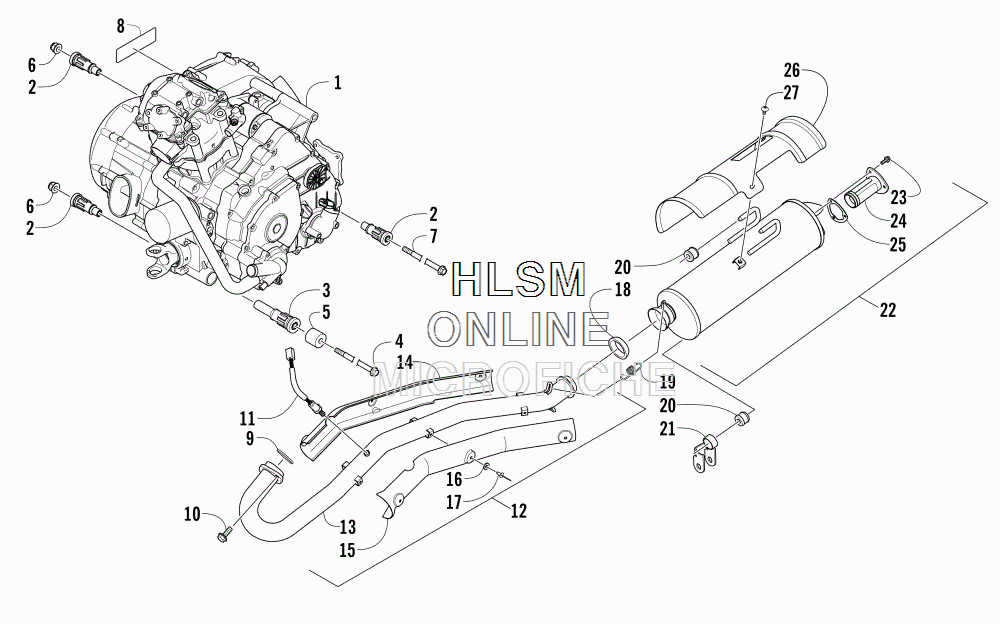

ENGINE AND EXHAUST для Arctic Cat 500 GREEN - 2017 года выпуска`
-
№АртикулНазвание
-
13313-868 ENGINE (INC. 2-3)ENGINE (INC. 2-3)
-
20801-188 ...MOUNT, RUBBER - ENGINE...MOUNT, RUBBER - ENGINE
-
30801-189 ...MOUNT, RUBBER - ENGINE...MOUNT, RUBBER - ENGINE
-
40423-405 SCREW, CAPSCREW, CAP
-
50408-020 SPACERSPACER
-
61423-335 NUT, LOCKNUT, LOCK
-
70423-451 SCREW, CAPSCREW, CAP
-
80411-426 DECAL, WARNINGDECAL, WARNING
-
93313-743 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
108408-820 SCREW, CAPSCREW, CAP
-
110430-135 SENSOR, OXYGENSENSOR, OXYGEN
-
120512-625 PIPE, EXHAUST - ASSEMBLY (INC. 13-17)PIPE, EXHAUST - ASSEMBLY (INC. 13-17)
-
130512-626 ...PIPE, EXHAUST...PIPE, EXHAUST
-
140412-688 ...SHIELD, EXHAUST PIPE - INNER...SHIELD, EXHAUST PIPE - INNER
-
150412-689 ...SHIELD, EXHAUST PIPE - OUTER...SHIELD, EXHAUST PIPE - OUTER
-
168050-217 ...WASHER...WASHER
-
178061-486 ...RIVET...RIVET
-
180412-375 SEAL, EXHAUSTSEAL, EXHAUST
-
190612-668 SPRINGSPRING
-
200412-577 BUSHINGBUSHING
-
211506-732 CHANNEL, MUFFLER SUPPORTCHANNEL, MUFFLER SUPPORT
-
220512-355 MUFFLER - ASSEMBLY (INC. 23-25)MUFFLER - ASSEMBLY (INC. 23-25)
-
238408-616 ...SCREW, CAP...SCREW, CAP
-
240512-219 ...ARRESTER, SPARK - ASSEMBLY...ARRESTER, SPARK - ASSEMBLY
-
250412-313 ...GASKET, SPARK ARRESTER...GASKET, SPARK ARRESTER
-
260412-373 COVER, MUFFLERCOVER, MUFFLER
-
278477-610 SCREW, MACHINESCREW, MACHINE
