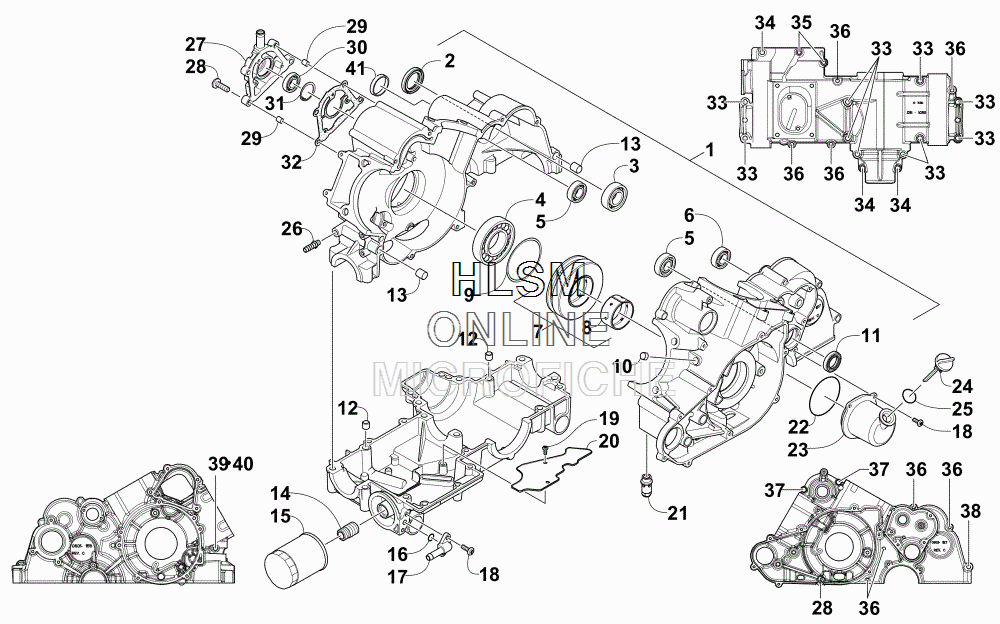

CRANKCASE ASSEMBLY для Arctic Cat 1000 MUD PRO LTD EPS BLACK - 2017 года выпуска`
-
№АртикулНазвание
-
10801-222 CRANKCASE, ASSEMBLY W/BEARINGS (INC. 2-14)CRANKCASE, ASSEMBLY W/BEARINGS (INC. 2-14)
-
20830-035 ...SEAL, DRIVESHAFT...SEAL, DRIVESHAFT
-
30832-048 ...BEARING...BEARING
-
40832-042 ...BEARING...BEARING
-
50832-050 ...BEARING...BEARING
-
60832-049 ...BEARING...BEARING
-
70832-055 ...BEARING - ASSEMBLY (INC. 8)...BEARING - ASSEMBLY (INC. 8)
-
80832-057 ......BEARING......BEARING
-
90830-221 ...O-RING...O-RING
-
100801-002 ...PLUG...PLUG
-
110822-052 ...SEAL, COUNTERSHAFT...SEAL, COUNTERSHAFT
-
120829-003 ...PIN, DOWEL...PIN, DOWEL
-
130829-002 ...PIN, DOWEL...PIN, DOWEL
-
140812-066 ...UNION, OIL FILTER...UNION, OIL FILTER
-
150812-034 FILTER, OILFILTER, OIL
-
160830-172 O-RINGO-RING
-
170812-060 FITTING, OILFITTING, OIL
-
188468-616 SCREW, MACHINESCREW, MACHINE
-
190623-914 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
200801-218 PLATE, OIL SUMPPLATE, OIL SUMP
-
210812-052 VALVE, OIL-RELIEF - ASSEMBLYVALVE, OIL-RELIEF - ASSEMBLY
-
220830-162 O-RING, OIL FILLER COVERO-RING, OIL FILLER COVER
-
230812-081 COVER, OIL FILLERCOVER, OIL FILLER
-
240801-179 STICK, OIL LEVELSTICK, OIL LEVEL
-
250830-010 O-RINGO-RING
-
260812-078 FITTING, OIL - THREADEDFITTING, OIL - THREADED
-
270801-193 COVER, BREATHERCOVER, BREATHER
-
288468-625 SCREW, MACHINESCREW, MACHINE
-
290829-062 PIN, DOWELPIN, DOWEL
-
300832-084 BEARINGBEARING
-
310831-086 CIRCLIPCIRCLIP
-
320830-191 GASKET, BREATHERGASKET, BREATHER
-
338412-860 SCREW, CAPSCREW, CAP
-
348412-830 SCREW, CAPSCREW, CAP
-
358468-640 SCREW, MACHINESCREW, MACHINE
-
368468-660 SCREW, MACHINESCREW, MACHINE
-
378468-630 SCREW, MACHINESCREW, MACHINE
-
388412-875 SCREW, CAPSCREW, CAP
-
398412-850 SCREW, CAPSCREW, CAP
-
400830-008 GASKETGASKET
-
410818-103 PLUGPLUG
