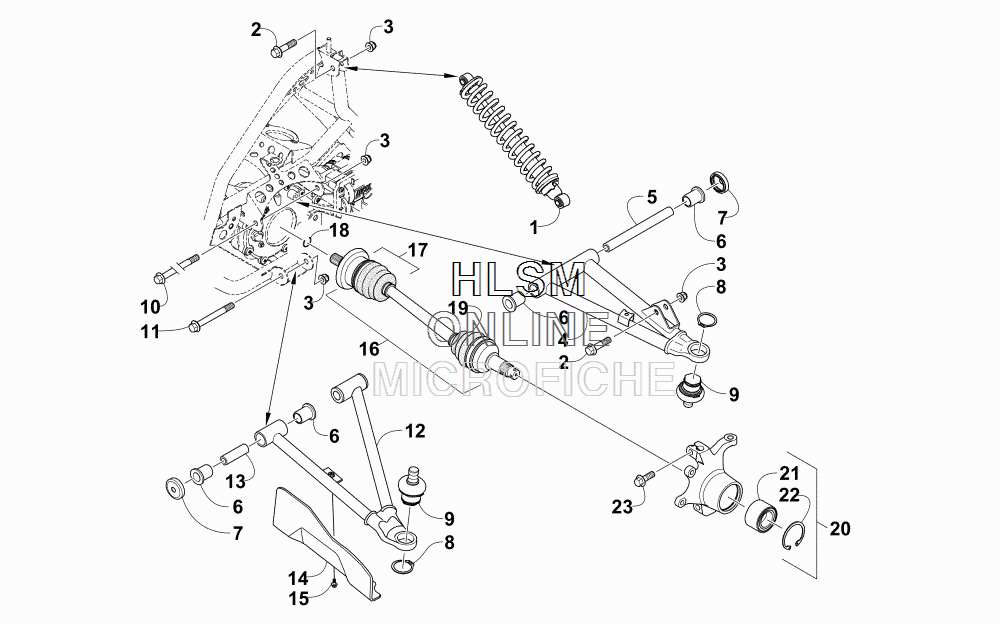

FRONT SUSPENSION ASSEMBLY для Arctic Cat XC 450 EFI [A2016KCK4CUST] - 2016 года выпуска
-
№АртикулНазвание
-
13307-645 SHOCK/SPRING ASSEMBLY - (ORANGE)SHOCK/SPRING ASSEMBLY - (ORANGE)
-
23303-376 SCREW, CAP - HFH M10 X 1.25 X 40SCREW, CAP - HFH M10 X 1.25 X 40
-
33304-031 U-NUTU-NUT
-
43306-564 A-ARM, UPPER RIGHT - (PLATINUM) (INC. 5-9)A-ARM, UPPER RIGHT - (PLATINUM) (INC. 5-9)
-
43306-565 A-ARM, UPPER LEFT - (PLATINUM) (INC. 5-9)A-ARM, UPPER LEFT - (PLATINUM) (INC. 5-9)
-
53313-111 ...SLEEVE, SUSPENSION...SLEEVE, SUSPENSION
-
63313-112 ......BUSHING,SUSPENSION......BUSHING,SUSPENSION
-
73313-113 ......SEAL,SUSPENSION......SEAL,SUSPENSION
-
80423-009 ......CLIP, BALL JOINT......CLIP, BALL JOINT
-
90405-483 ......BALL JOINT......BALL JOINT
-
103313-430 SCREW, CAPSCREW, CAP
-
113304-183 SCREW, CAPSCREW, CAP
-
123306-566 A-ARM, LOWER RIGHT - (PLATINUM) (INC. 6-9 AND 13)A-ARM, LOWER RIGHT - (PLATINUM) (INC. 6-9 AND 13)
-
123306-567 A-ARM, LOWER LEFT - (PLATINUM) (INC. 6-9 AND 13)A-ARM, LOWER LEFT - (PLATINUM) (INC. 6-9 AND 13)
-
133313-107 ...AXLE SLEEVE,SUSPENSION...AXLE SLEEVE,SUSPENSION
-
143306-456 MUDGUARD - RIGHTMUDGUARD - RIGHT
-
143306-457 MUDGUARD - LEFTMUDGUARD - LEFT
-
153304-587 BOLT WASHER 6*16BOLT WASHER 6*16
-
163313-831 HALFSHAFT, FRONT (INC. 17-19)HALFSHAFT, FRONT (INC. 17-19)
-
173313-560 ...SERVICE KIT, DIFFERENTIAL SIDE BOOT (IN BOARD) (INC. 18)...SERVICE KIT, DIFFERENTIAL SIDE BOOT (IN BOARD) (INC. 18)
-
180423-844 ......CLIP, RETAINING - INBOARD......CLIP, RETAINING - INBOARD
-
193313-558 ...REPAIR KIT, BOOT - DRIVE AXLE - OUTBOUND...REPAIR KIT, BOOT - DRIVE AXLE - OUTBOUND
-
203323-130 KNUCKLE - ASSEMBLY - RIGHT (INC. 21-22)KNUCKLE - ASSEMBLY - RIGHT (INC. 21-22)
-
203323-131 KNUCKLE - ASSEMBLY - LEFT (INC. 21-22)KNUCKLE - ASSEMBLY - LEFT (INC. 21-22)
-
211402-809 ...BEARING...BEARING
-
220423-423 ...RING, RETAINING...RING, RETAINING
-
233323-127 SCREW, CAPSCREW, CAP
