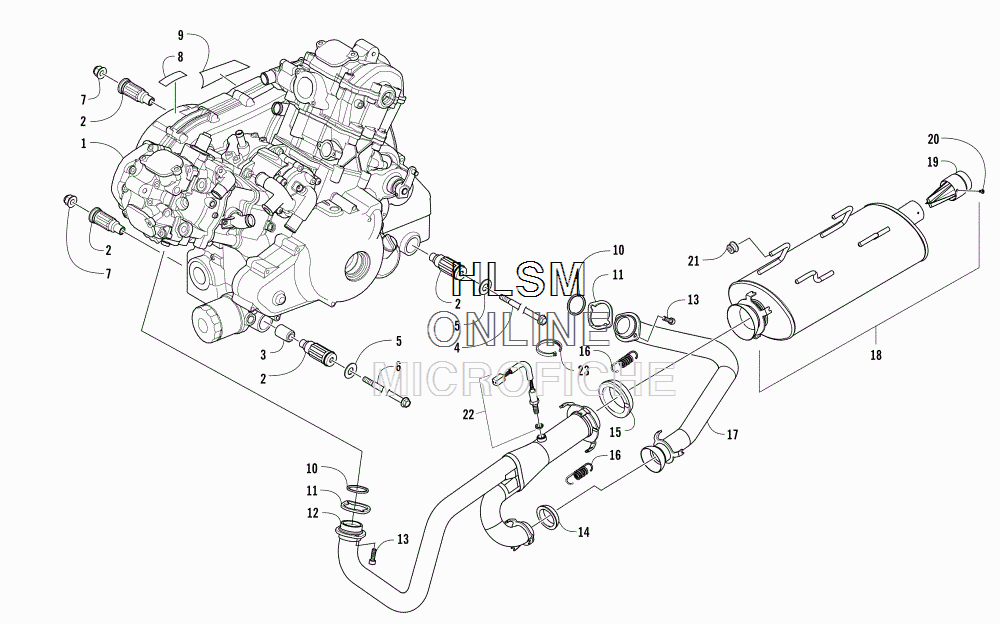

ENGINE AND EXHAUST для Arctic Cat WILDCAT X WHITE [U2016WSW1PUSW] - 2016 года выпуска`
-
№АртикулНазвание
-
10800-191 ENGINE, A950Q (INC. 2-3)ENGINE, A950Q (INC. 2-3)
-
20801-091 ...MOUNT, ENGINE...MOUNT, ENGINE
-
30801-128 ...SPACER, ENGINE MOUNT...SPACER, ENGINE MOUNT
-
40423-451 SCREW, CAPSCREW, CAP
-
50423-426 WASHERWASHER
-
60423-734 SCREW, CAPSCREW, CAP
-
78428-002 NUT, LOCKNUT, LOCK
-
80411-426 DECAL, WARNING - CLUTCHDECAL, WARNING - CLUTCH
-
93411-555 DECAL, "RAPID RESPONSE"DECAL, "RAPID RESPONSE"
-
100412-338 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
110412-636 SPACER, EXHAUST PIPESPACER, EXHAUST PIPE
-
120512-810 PIPE, EXHAUST - FRONTPIPE, EXHAUST - FRONT
-
131423-300 SCREW, CAPSCREW, CAP
-
140412-375 SEAL, EXHAUST PIPESEAL, EXHAUST PIPE
-
152612-615 SEAL, EXHAUST PIPESEAL, EXHAUST PIPE
-
160612-668 SPRING, EXTENSIONSPRING, EXTENSION
-
170512-811 PIPE, EXHAUST - REARPIPE, EXHAUST - REAR
-
180512-836 MUFFLER ASSEMBLY (INC. 19-20)MUFFLER ASSEMBLY (INC. 19-20)
-
190512-832 ...ARRESTER, SPARK...ARRESTER, SPARK
-
201423-323 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
210412-544 BUSHINGBUSHING
-
220630-302 SENSOR, OXYGENSENSOR, OXYGEN
-
230123-811 TIE, CABLE - 4 IN.TIE, CABLE - 4 IN.
