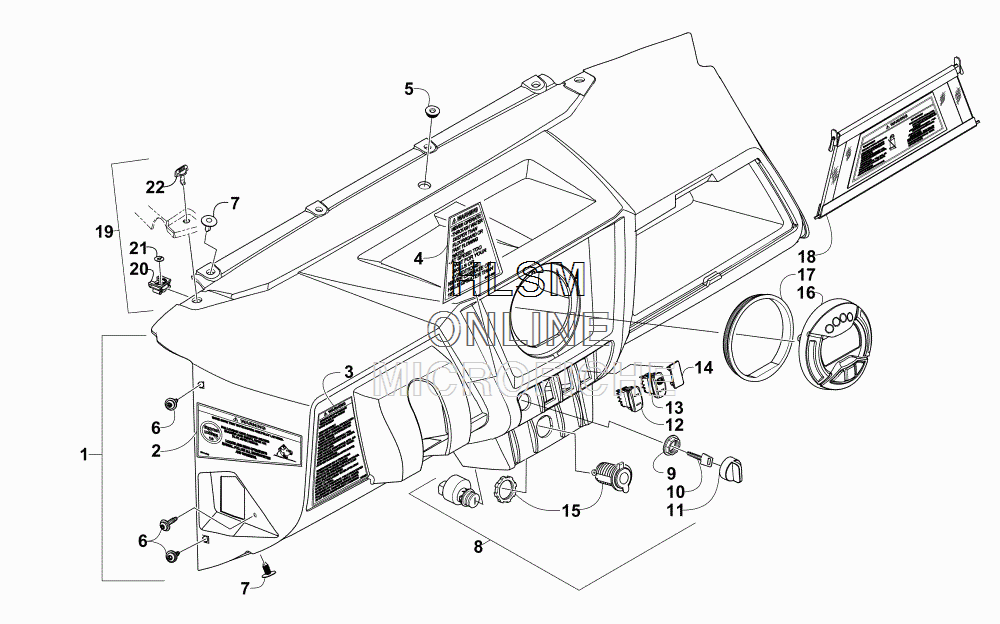

DASH ASSEMBLY для Arctic Cat WILDCAT TRAIL XT EPS GREEN [U2016WCT2PUSX] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    5506-601 PANEL, DASH - W/DECALS (INC. 2-5)
    PANEL, DASH - W/DECALS (INC. 2-5)
  • 2
    3411-918 ...DECAL, WARNING - AGE
    ...DECAL, WARNING - AGE
  • 3
    2411-893 ...DECAL, WARNING - DASH - LEFT
    ...DECAL, WARNING - DASH - LEFT
  • 4
    2411-892 ...DECAL, WARNING - DASH - RIGHT
    ...DECAL, WARNING - DASH - RIGHT
  • 5
    0423-678 ...GROMMET
    ...GROMMET
  • 6
    0423-609 SCREW, MACHINE
    SCREW, MACHINE
  • 7
    0623-544 PLUG
    PLUG
  • 8
    0609-936 SWITCH, IGNITION (INC. 9-11)
    SWITCH, IGNITION (INC. 9-11)
  • 9
    0430-050 ...NUT, RETAINING
    ...NUT, RETAINING
  • 10
    0430-042 ...KEY, IGNITION - Y - LEFT HAND
    ...KEY, IGNITION - Y - LEFT HAND
  • 10
    0430-043 ...KEY, IGNITION - Z - RIGHT HAND
    ...KEY, IGNITION - Z - RIGHT HAND
  • 11
    0630-324 ...COVER, KEY
    ...COVER, KEY
  • 12
    0409-160 SWITCH, LIGHTS
    SWITCH, LIGHTS
  • 13
    0409-061 SWITCH, 2WD/4WD/DIFFERENTIAL LOCK
    SWITCH, 2WD/4WD/DIFFERENTIAL LOCK
  • 14
    0409-070 PLUG, SWITCH HOLE
    PLUG, SWITCH HOLE
  • 15
    0641-897 OUTLET, ACCESSORY - 12V
    OUTLET, ACCESSORY - 12V
  • 16
    0520-276 GAUGE (INC. 17)
    GAUGE (INC. 17)
  • 17
    0409-161 ...RING, MOUNT - GAUGE
    ...RING, MOUNT - GAUGE
  • 18
    5506-412 NET, GLOVE BOX - ENGLISH
    NET, GLOVE BOX - ENGLISH
  • 19
    1423-218 FASTENER, QUARTER-TURN - ASSEMBLY (INC. 20-22)
    FASTENER, QUARTER-TURN - ASSEMBLY (INC. 20-22)
  • 20
    1423-208 ...RECEIVER
    ...RECEIVER
  • 21
    1423-209 ...RETAINER
    ...RETAINER
  • 22
    1423-207 ...KNOB
    ...KNOB
