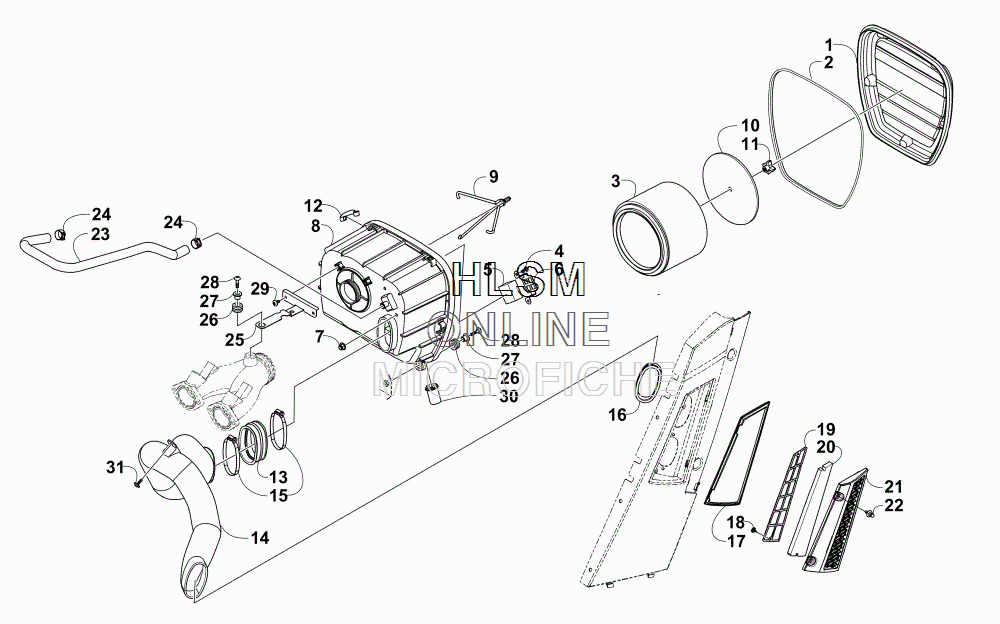

AIR INTAKE ASSEMBLY для Arctic Cat WILDCAT TRAIL RED [U2016W5T4CUSR] - 2016 года выпуска
-
№АртикулНазвание
-
10470-994 COVER, AIR INTAKECOVER, AIR INTAKE
-
20470-995 GASKETGASKET
-
30470-996 FILTER, AIRFILTER, AIR
-
48477-516 SCREW, MACHINESCREW, MACHINE
-
51470-002 FILTER, CRANKFILTER, CRANK
-
61470-003 RETAINER - CRANK VENT FILTERRETAINER - CRANK VENT FILTER
-
78427-502 NUT, LOCKNUT, LOCK
-
80570-373 HOUSING, AIR INTAKEHOUSING, AIR INTAKE
-
91470-007 RETAINER, AIR FILTERRETAINER, AIR FILTER
-
100470-981 SUPPORT, AIR FILTERSUPPORT, AIR FILTER
-
111423-251 KNOBKNOB
-
120423-455 CLIP, SPRINGCLIP, SPRING
-
130470-999 BOOT, AIR CLEANER - INLETBOOT, AIR CLEANER - INLET
-
140470-986 DUCT, AIR CLEANERDUCT, AIR CLEANER
-
150423-057 CLAMPCLAMP
-
161470-056 GASKET, INTAKE DUCTGASKET, INTAKE DUCT
-
171470-057 GASKET, INTAKE VENTGASKET, INTAKE VENT
-
180623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
191470-031 RETAINER, INTAKE FILTERRETAINER, INTAKE FILTER
-
201470-032 FILTER, INTAKEFILTER, INTAKE
-
214406-265 FASCIA, SIDE VENTFASCIA, SIDE VENT
-
220623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
230470-982 HOSE, CRANK VENTHOSE, CRANK VENT
-
240423-045 CLAMP, HOSECLAMP, HOSE
-
250470-983 BRACKET, MOUNTING - AIR CLEANERBRACKET, MOUNTING - AIR CLEANER
-
260423-465 GROMMETGROMMET
-
270423-669 SPACERSPACER
-
288476-625 SCREW, MACHINESCREW, MACHINE
-
298468-613 SCREW, MACHINESCREW, MACHINE
-
300470-947 VALVE, DRAINVALVE, DRAIN
-
311423-198 SCREW, MACHINESCREW, MACHINE
