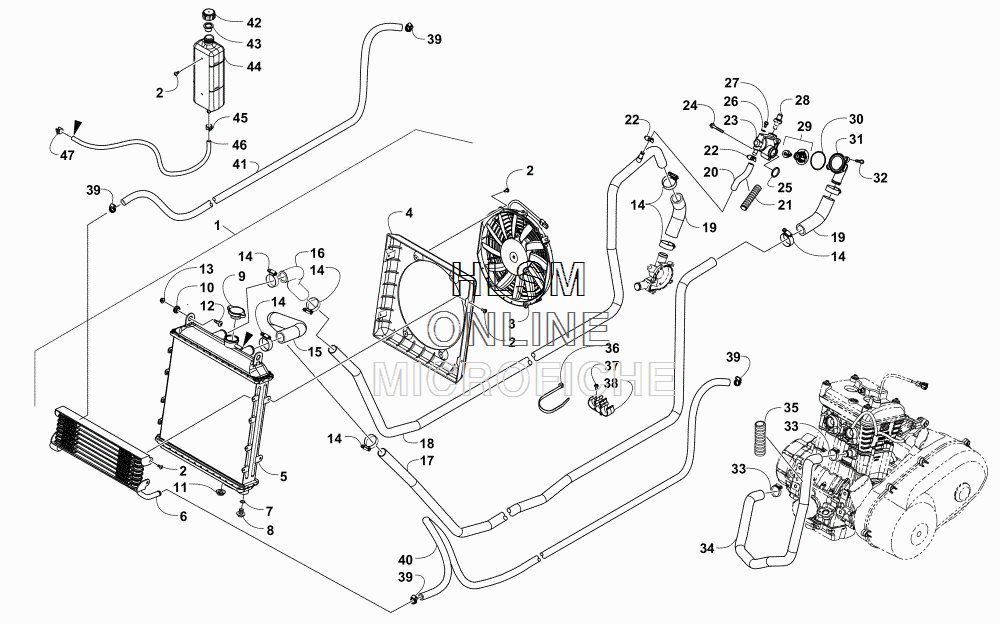

COOLING ASSEMBLY для Arctic Cat WILDCAT TRAIL LIME [U2016W5T4CUSZ] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    0513-056 COOLER, RADIATOR - W/OIL - ASSEMBLY (INC. 2-10)
    COOLER, RADIATOR - W/OIL - ASSEMBLY (INC. 2-10)
  • 2
    8475-512 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 3
    0413-123 ...FAN, RADIATOR
    ...FAN, RADIATOR
  • 4
    0413-327 ...SHROUD, FAN
    ...SHROUD, FAN
  • 5
    0513-057 ...RADIATOR
    ...RADIATOR
  • 6
    0413-322 ...COOLER, OIL
    ...COOLER, OIL
  • 7
    1602-213 ...O-RING
    ...O-RING
  • 8
    0413-195 ...PLUG, RADIATOR
    ...PLUG, RADIATOR
  • 9
    0413-255 ...CAP, RADIATOR
    ...CAP, RADIATOR
  • 10
    0423-030 ...GROMMET
    ...GROMMET
  • 11
    0423-028 BUSHING
    BUSHING
  • 12
    0423-356 SCREW, SHOULDER
    SCREW, SHOULDER
  • 13
    8427-602 NUT, LOCK
    NUT, LOCK
  • 14
    0423-496 CLAMP, HOSE
    CLAMP, HOSE
  • 15
    0410-264 HOSE, COOLANT - COOLANT/RADIATOR
    HOSE, COOLANT - COOLANT/RADIATOR
  • 16
    0410-265 HOSE, COOLANT - RADIATOR/COOLANT
    HOSE, COOLANT - RADIATOR/COOLANT
  • 17
    0413-309 PIPE, COOLANT
    PIPE, COOLANT
  • 18
    0513-055 PIPE, COOLANT - THERMOSTAT/RADIATOR
    PIPE, COOLANT - THERMOSTAT/RADIATOR
  • 19
    0410-263 HOSE, COOLANT
    HOSE, COOLANT
  • 20
    0410-262 HOSE, BYPASS
    HOSE, BYPASS
  • 21
    0610-790 LOOM, COOLANT HOSE - 5 FT
    LOOM, COOLANT HOSE - 5 FT
  • 22
    0423-632 CLAMP, HOSE
    CLAMP, HOSE
  • 23
    0513-052 HOUSING, THERMOSTAT
    HOUSING, THERMOSTAT
  • 24
    8408-640 SCREW, CAP
    SCREW, CAP
  • 25
    3304-104 O-RING
    O-RING
  • 26
    3304-049 WASHER
    WASHER
  • 27
    3304-186 BOLT FLANGE SH 6X10
    BOLT FLANGE SH 6X10
  • 28
    0824-051 SENSOR, ENGINE COOLANT TEMPERATURE
    SENSOR, ENGINE COOLANT TEMPERATURE
  • 29
    0813-050 THERMOSTAT
    THERMOSTAT
  • 30
    0830-205 O-RING
    O-RING
  • 31
    0808-202 COVER, HOUSING - THERMOSTAT
    COVER, HOUSING - THERMOSTAT
  • 32
    3303-383 BOLT
    BOLT
  • 33
    2623-088 CLAMP, HOSE
    CLAMP, HOSE
  • 34
    0410-271 HOSE, COOLANT
    HOSE, COOLANT
  • 35
    0610-734 LOOM, COOLANT HOSE
    LOOM, COOLANT HOSE
  • 36
    0123-903 TIE, CABLE - 11.5 IN.
    TIE, CABLE - 11.5 IN.
  • 37
    8061-686 RIVET
    RIVET
  • 38
    0413-346 CLIP, COOLANT
    CLIP, COOLANT
  • 39
    2623-062 CLAMP, HOSE
    CLAMP, HOSE
  • 40
    0410-273 HOSE, OIL - #2
    HOSE, OIL - #2
  • 41
    0410-319 HOSE, OIL - #1
    HOSE, OIL - #1
  • 42
    0413-328 CAP
    CAP
  • 43
    0413-329 SPACER
    SPACER
  • 44
    0413-320 BOTTLE, OVERFLOW
    BOTTLE, OVERFLOW
  • 45
    1623-351 CLAMP, HOSE
    CLAMP, HOSE
  • 46
    0410-274 HOSE, COOLANT - OVERFLOW
    HOSE, COOLANT - OVERFLOW
  • 47
    0124-045 CLAMP, HOSE
    CLAMP, HOSE
