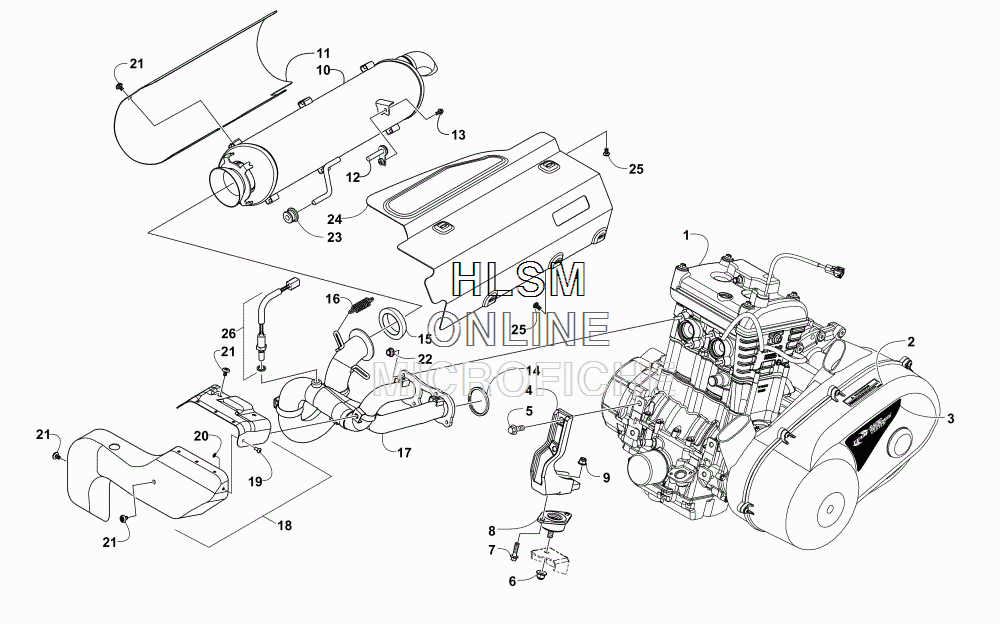

ENGINE AND EXHAUST для Arctic Cat WILDCAT SPORT LIMITED EPS INTERNATIONAL BLACK [U2016W8T2POSQ] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    3306-810 ENGINE, 700 ZK
    ENGINE, 700 ZK
  • 2
    0411-426 DECAL, WARNING - CLUTCH
    DECAL, WARNING - CLUTCH
  • 3
    2411-287 DECAL, RAPID RESONSE
    DECAL, RAPID RESONSE
  • 4
    0508-026 MOUNT, ENGINE - FRONT - RIGHT
    MOUNT, ENGINE - FRONT - RIGHT
  • 4
    0508-027 MOUNT, ENGINE - FRONT - LEFT
    MOUNT, ENGINE - FRONT - LEFT
  • 5
    8409-030 SCREW, CAP
    SCREW, CAP
  • 6
    8427-002 NUT, LOCK
    NUT, LOCK
  • 7
    8476-835 SCREW, CAP
    SCREW, CAP
  • 8
    0408-064 MOUNT, ENGINE - W/STUD
    MOUNT, ENGINE - W/STUD
  • 9
    8427-802 NUT, LOCK
    NUT, LOCK
  • 10
    0512-850 MUFFLER - ASSEMBLY
    MUFFLER - ASSEMBLY
  • 11
    2402-305 SHIELD, HEAT - MUFFLER
    SHIELD, HEAT - MUFFLER
  • 12
    7506-274 BRACKET
    BRACKET
  • 13
    8408-620 SCREW, CAP
    SCREW, CAP
  • 14
    0412-647 SEAL, EXHAUST PIPE
    SEAL, EXHAUST PIPE
  • 15
    0412-872 GASKET, EXHAUST PIPE
    GASKET, EXHAUST PIPE
  • 16
    0612-668 SPRING, EXTENSION
    SPRING, EXTENSION
  • 17
    0512-853 MANIFOLD - ASSEMBLY
    MANIFOLD - ASSEMBLY
  • 18
    0512-794 SHIELD, HEAT - ASSEMBLY (INC. 19)
    SHIELD, HEAT - ASSEMBLY (INC. 19)
  • 19
    1623-130 ...RIVET
    ...RIVET
  • 20
    8050-222 WASHER
    WASHER
  • 21
    8477-610 SCREW, MACHINE
    SCREW, MACHINE
  • 22
    8424-602 NUT, LOCK
    NUT, LOCK
  • 23
    0412-544 BUSHING
    BUSHING
  • 24
    0412-774 SHIELD, HEAT - MUFFLER
    SHIELD, HEAT - MUFFLER
  • 25
    1623-490 SCREW, CAP
    SCREW, CAP
  • 26
    0630-302 SENSOR, OXYGEN
    SENSOR, OXYGEN
