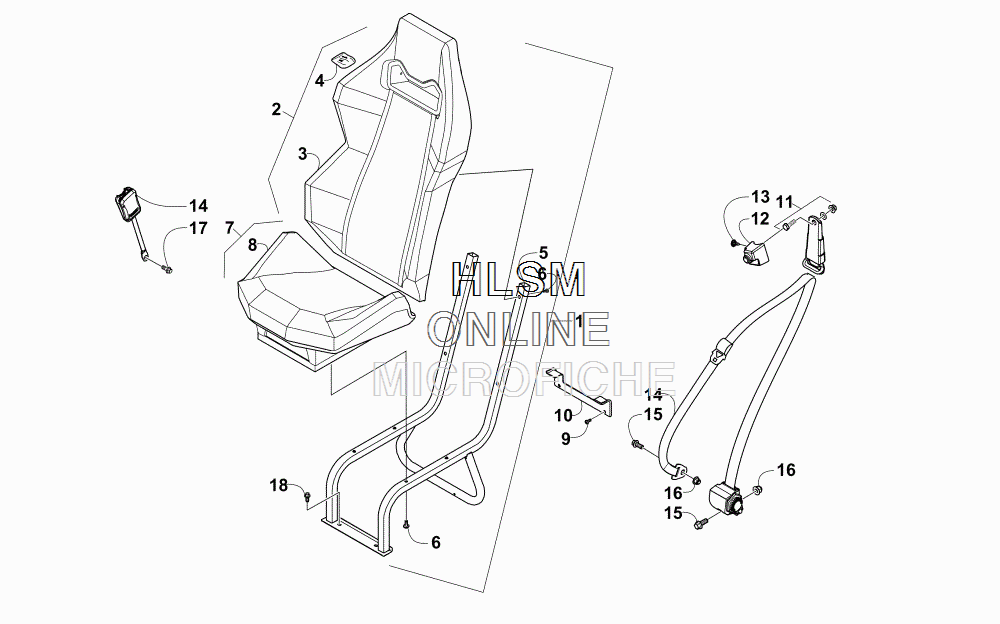

REAR SEAT ASSEMBLY для Arctic Cat WILDCAT 4X [U2016WFW1PUSW] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    5506-073 SEAT - ASSEMBLY (INC. 2-8)
    SEAT - ASSEMBLY (INC. 2-8)
  • 2
    5506-075 ...BACK, SEAT (INC. 3-4)
    ...BACK, SEAT (INC. 3-4)
  • 3
    5506-637 ......COVER, SEAT BACK - BLACK
    ......COVER, SEAT BACK - BLACK
  • 4
    1423-265 ......KIT, SEAT HARDWARE
    ......KIT, SEAT HARDWARE
  • 5
    5506-072 ...FRAME, SEAT - BLACK
    ...FRAME, SEAT - BLACK
  • 6
    8468-617 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 7
    5506-074 ...BASE, SEAT (INC. 8)
    ...BASE, SEAT (INC. 8)
  • 8
    5506-636 ......COVER, BASE SEAT - BLACK
    ......COVER, BASE SEAT - BLACK
  • 9
    8468-616 SCREW, MACHINE
    SCREW, MACHINE
  • 10
    5506-226 BRACKET, HOLD-DOWN
    BRACKET, HOLD-DOWN
  • 11
    1423-305 SCREW, SHOULDER - ASSEMBLY
    SCREW, SHOULDER - ASSEMBLY
  • 12
    4406-922 COVER, SEAT BELT - RIGHT
    COVER, SEAT BELT - RIGHT
  • 12
    4406-923 COVER, SEAT BELT - LEFT
    COVER, SEAT BELT - LEFT
  • 13
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 14
    5506-891 BELT, SEAT - ASSEMBLY
    BELT, SEAT - ASSEMBLY
  • 15
    1423-182 SCREW, CAP
    SCREW, CAP
  • 16
    1423-184 NUT, LOCK
    NUT, LOCK
  • 17
    1423-183 SCREW, CAP
    SCREW, CAP
  • 18
    8408-821 SCREW, CAP
    SCREW, CAP
