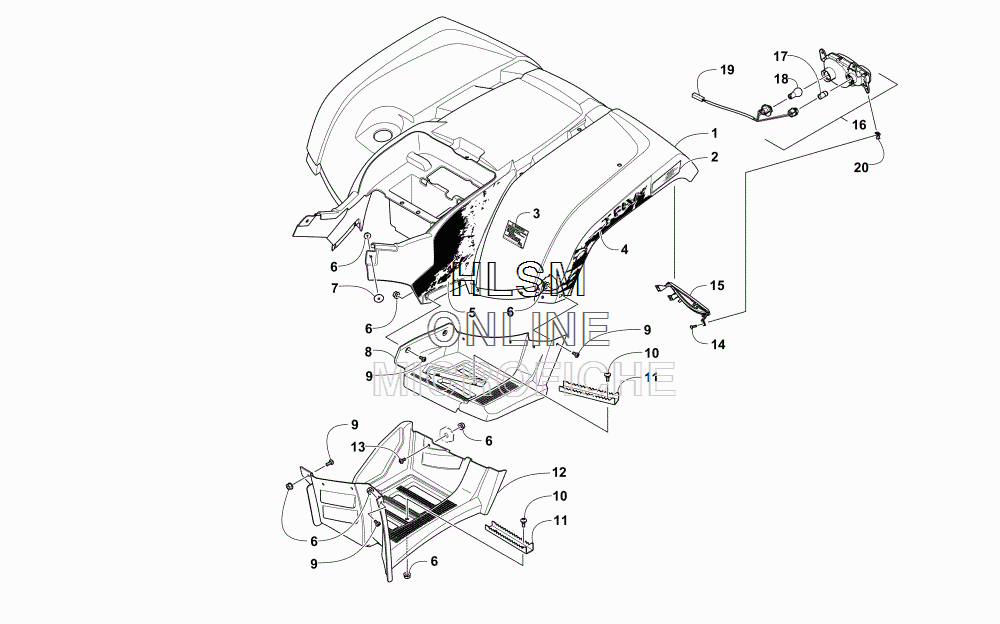

REAR BODY PANEL AND FOOTWELL ASSEMBLIES для Arctic Cat TRV 700 EPS SE L7E BLACK [A2016TCT1P7EP] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    7506-117 FENDER, REAR - ASSEMBLY - BLACK
    FENDER, REAR - ASSEMBLY - BLACK
  • 2
    1411-592 DECAL, REFLECTOR - RIGHT
    DECAL, REFLECTOR - RIGHT
  • 2
    1411-593 DECAL, REFLECTOR - LEFT
    DECAL, REFLECTOR - LEFT
  • 3
    2411-830 DECAL, WARNING - TIRE PRESSURE
    DECAL, WARNING - TIRE PRESSURE
  • 4
    5411-424 DECAL, "TRV" - RIGHT - BLACK
    DECAL, "TRV" - RIGHT - BLACK
  • 4
    5411-425 DECAL, "TRV" - LEFT - BLACK
    DECAL, "TRV" - LEFT - BLACK
  • 5
    5411-422 DECAL, SIDE - LOWER - RIGHT
    DECAL, SIDE - LOWER - RIGHT
  • 5
    5411-423 DECAL, SIDE - LOWER - LEFT
    DECAL, SIDE - LOWER - LEFT
  • 6
    8427-602 NUT, LOCK
    NUT, LOCK
  • 7
    0423-101 SCREW, SHOULDER
    SCREW, SHOULDER
  • 8
    2406-042 FOOTWELL, REAR - RIGHT
    FOOTWELL, REAR - RIGHT
  • 8
    2406-043 FOOTWELL, REAR - LEFT
    FOOTWELL, REAR - LEFT
  • 9
    0423-419 SCREW, MACHINE
    SCREW, MACHINE
  • 10
    0423-355 SCREW, SHOULDER
    SCREW, SHOULDER
  • 11
    5506-497 FOOTPEG - BLACK
    FOOTPEG - BLACK
  • 12
    1506-813 FOOTWELL - RIGHT
    FOOTWELL - RIGHT
  • 12
    2406-471 FOOTWELL - LEFT
    FOOTWELL - LEFT
  • 13
    8477-620 SCREW, MACHINE
    SCREW, MACHINE
  • 14
    8476-516 SCREW, MACHINE
    SCREW, MACHINE
  • 15
    0409-112 BEZEL, TAILLIGHT - RIGHT
    BEZEL, TAILLIGHT - RIGHT
  • 15
    0409-113 BEZEL, TAILLIGHT - LEFT
    BEZEL, TAILLIGHT - LEFT
  • 16
    3313-392 TAILLIGHT ASSEMBLY - RIGHT (INC. 17-19)
    TAILLIGHT ASSEMBLY - RIGHT (INC. 17-19)
  • 16
    3313-393 TAILLIGHT ASSEMBLY - LEFT (INC. 17-19)
    TAILLIGHT ASSEMBLY - LEFT (INC. 17-19)
  • 17
    3313-506 ...BULB, TURN SIGNAL
    ...BULB, TURN SIGNAL
  • 18
    3303-849 ...BULB, TAILLIGHT
    ...BULB, TAILLIGHT
  • 20
    3304-061 NUT CLIP 5 MM
    NUT CLIP 5 MM
