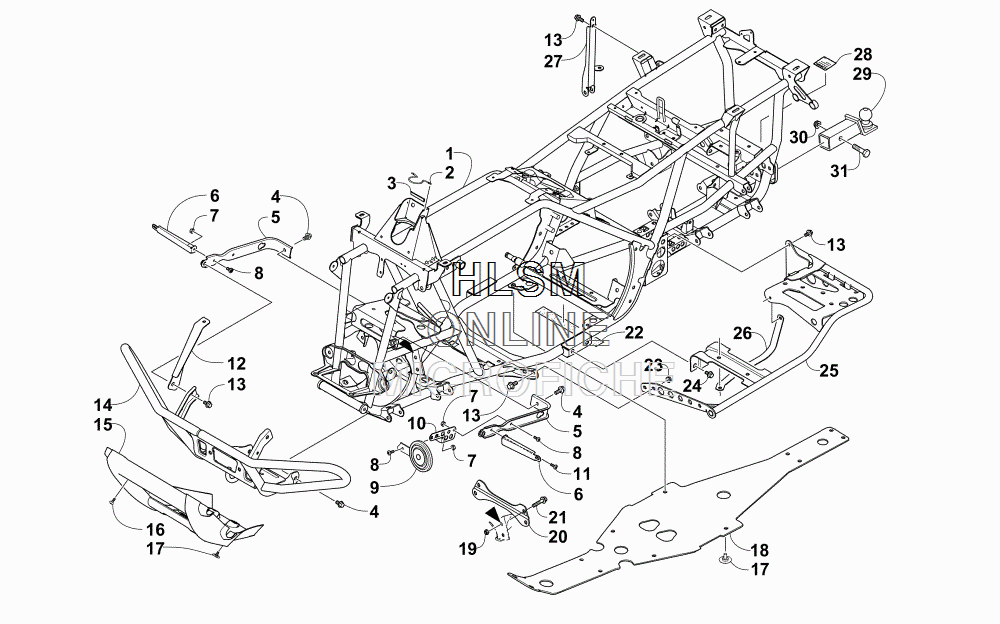

FRAME AND RELATED PARTS для Arctic Cat TRV 550 XT EPS L7E WHITE [A2016TGO1P7EW] - 2016 года выпуска`
-
№АртикулНазвание
-
14506-819 FRAME, MAINFRAME, MAIN
-
22416-401 CLIP, ROUTINGCLIP, ROUTING
-
30706-371 TRIM - 3 FTTRIM - 3 FT
-
48409-020 SCREW, CAPSCREW, CAP
-
51506-596 CHANNEL, MOUNTING - BUMPER - RIGHTCHANNEL, MOUNTING - BUMPER - RIGHT
-
62416-162 BRACKET, SUPPORT - RIGHTBRACKET, SUPPORT - RIGHT
-
62416-163 BRACKET, SUPPORT - LEFTBRACKET, SUPPORT - LEFT
-
70623-038 NUT W/WASHERNUT W/WASHER
-
88477-616 SCREW, MACHINESCREW, MACHINE
-
90430-131 HORN, ELECTRIC - 12VHORN, ELECTRIC - 12V
-
102406-321 BRACKET, MOUNTING - HORNBRACKET, MOUNTING - HORN
-
118477-620 SCREW, MACHINESCREW, MACHINE
-
121506-562 BRACKET, MOUNTING - BUMPER - RIGHTBRACKET, MOUNTING - BUMPER - RIGHT
-
121506-563 BRACKET, MOUNTING - BUMPER - LEFTBRACKET, MOUNTING - BUMPER - LEFT
-
138408-816 SCREW, CAPSCREW, CAP
-
141506-855 BUMPERBUMPER
-
151406-360 FASCIA, BUMPER - FRONTFASCIA, BUMPER - FRONT
-
160423-419 SCREW, MACHINESCREW, MACHINE
-
170423-101 SCREW, SHOULDERSCREW, SHOULDER
-
182406-091 PANEL, BELLYPANEL, BELLY
-
190423-744 NUT, LOCKNUT, LOCK
-
202516-852 BRACE, A-ARMBRACE, A-ARM
-
218409-025 SCREW, CAPSCREW, CAP
-
220406-289 PAD, FRAMEPAD, FRAME
-
238424-802 NUTNUT
-
248409-016 SCREW, CAPSCREW, CAP
-
251506-848 FOOTREST - RIGHTFOOTREST - RIGHT
-
251506-849 FOOTREST - LEFTFOOTREST - LEFT
-
262406-216 STRAP, FOOTREST - RIGHTSTRAP, FOOTREST - RIGHT
-
262406-217 STRAP, FOOTREST - LEFTSTRAP, FOOTREST - LEFT
-
272506-447 BRACKET, SUPPORTBRACKET, SUPPORT
-
284411-550 DECAL, WARNING - TOWINGDECAL, WARNING - TOWING
-
290541-857 MOUNT, BALL HITCH (INC. 30-31)MOUNT, BALL HITCH (INC. 30-31)
-
300423-690 ...NUT, LOCK...NUT, LOCK
-
310423-693 ...SCREW, CAP...SCREW, CAP
