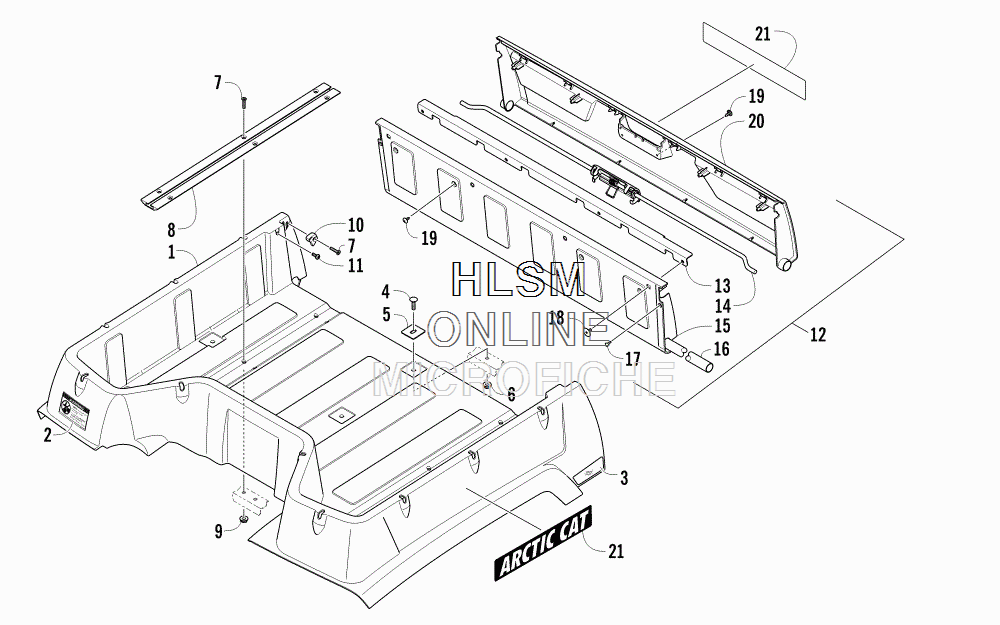

CARGO BOX AND TAILGATE ASSEMBLY для Arctic Cat TBX 700 EPS RED [A2016BBT1PUSR] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    2506-767 BOX - ASSEMBLY (W/REFLECTORS) (INC. 2-3)
    BOX - ASSEMBLY (W/REFLECTORS) (INC. 2-3)
  • 2
    0411-975 ...DECAL, WARNING - NO PASSENGER/WEIGHT LIMIT
    ...DECAL, WARNING - NO PASSENGER/WEIGHT LIMIT
  • 3
    0411-980 ...DECAL, REFLECTOR - RIGHT RED
    ...DECAL, REFLECTOR - RIGHT RED
  • 3
    0411-979 ...DECAL, REFLECTOR - LEFT RED
    ...DECAL, REFLECTOR - LEFT RED
  • 4
    0423-623 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 5
    1506-933 PLATE, RETAINER
    PLATE, RETAINER
  • 6
    8424-802 NUT
    NUT
  • 7
    8474-630 SCREW, MACHINE
    SCREW, MACHINE
  • 8
    0541-364 RAIL, BOX - PAINTED BLACK
    RAIL, BOX - PAINTED BLACK
  • 9
    8424-602 NUT, LOCK
    NUT, LOCK
  • 10
    1506-940 HOOK, TAILGATE - RIGHT
    HOOK, TAILGATE - RIGHT
  • 10
    1506-941 HOOK, TAILGATE - LEFT
    HOOK, TAILGATE - LEFT
  • 11
    8471-616 SCREW, MACHINE
    SCREW, MACHINE
  • 12
    1506-568 TAILGATE ASSEMBLY (INC. 13-20)
    TAILGATE ASSEMBLY (INC. 13-20)
  • 13
    1506-567 ...BRACE, TAILGATE
    ...BRACE, TAILGATE
  • 14
    1506-561 ...LATCH, TAILGATE
    ...LATCH, TAILGATE
  • 15
    1406-709 ...PANEL, TAILGATE - FRONT
    ...PANEL, TAILGATE - FRONT
  • 16
    1406-711 ...SHAFT, PIVOT
    ...SHAFT, PIVOT
  • 17
    1406-755 ...BUMPER, TAILGATE
    ...BUMPER, TAILGATE
  • 18
    0423-101 ...SCREW, SHOULDER
    ...SCREW, SHOULDER
  • 19
    0623-784 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 20
    1406-710 ...PANEL, TAILGATE - REAR
    ...PANEL, TAILGATE - REAR
  • 21
    1411-157 DECAL, ARCTIC CAT
    DECAL, ARCTIC CAT
