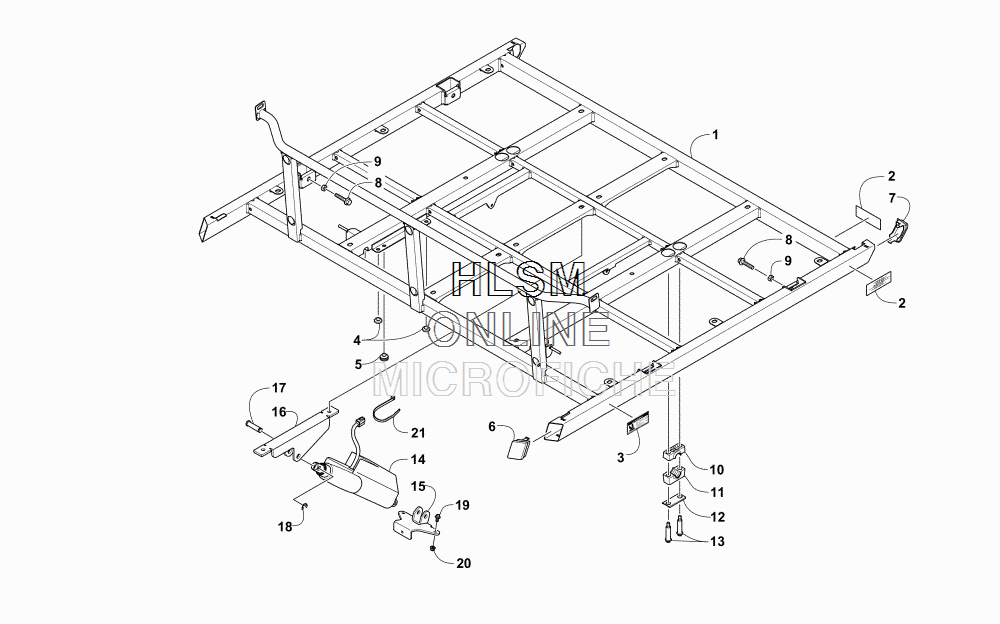

TILT FRAME ASSEMBLY для Arctic Cat HDX 700 XT SE CAMO [U2016R7T1POSH] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    2516-712 FRAME,TILT - ASSEMBLY
    FRAME,TILT - ASSEMBLY
  • 2
    2411-182 DECAL, REFLECTOR - RED
    DECAL, REFLECTOR - RED
  • 3
    4411-883 DECAL, WARNING - PINCH POINT
    DECAL, WARNING - PINCH POINT
  • 4
    0406-877 BUMPER
    BUMPER
  • 5
    1423-057 BUMPER
    BUMPER
  • 6
    2416-366 ENDCAP, FRONT - RIGHT
    ENDCAP, FRONT - RIGHT
  • 6
    2416-367 ENDCAP, FRONT - LEFT
    ENDCAP, FRONT - LEFT
  • 7
    2416-364 ENDCAP, REAR - RIGHT
    ENDCAP, REAR - RIGHT
  • 7
    2416-365 ENDCAP, REAR - LEFT
    ENDCAP, REAR - LEFT
  • 8
    1423-012 SCREW, CAP
    SCREW, CAP
  • 9
    8420-002 NUT - RIGHT-HAND THREAD
    NUT - RIGHT-HAND THREAD
  • 10
    0405-139 BLOCK, MOUNTING
    BLOCK, MOUNTING
  • 11
    0405-138 BLOCK, MOUNTING
    BLOCK, MOUNTING
  • 12
    0405-166 CAP, HOUSING
    CAP, HOUSING
  • 13
    0423-505 SCREW, SHOULDER
    SCREW, SHOULDER
  • 14
    0509-122 ACTUATOR, LIFT
    ACTUATOR, LIFT
  • 15
    7506-565 BRACKET, LOWER - ACTUATOR
    BRACKET, LOWER - ACTUATOR
  • 16
    7506-563 BRACKET, UPPER - ACTUATOR
    BRACKET, UPPER - ACTUATOR
  • 17
    5406-334 PIN
    PIN
  • 18
    1423-368 RETAINING, RING
    RETAINING, RING
  • 19
    8408-825 SCREW, CAP
    SCREW, CAP
  • 20
    8427-802 NUT, LOCK
    NUT, LOCK
  • 21
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
