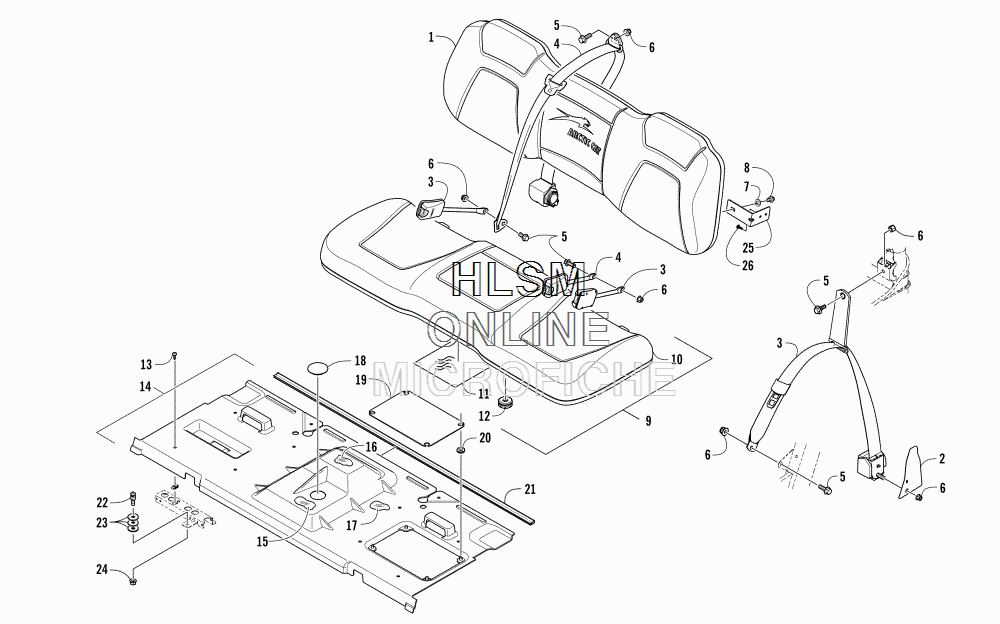

SEAT ASSEMBLY для Arctic Cat HDX 700 XT INTERNATIONAL CAMO [U2016R6T1POSH] - 2016 года выпуска
-
№АртикулНазвание
-
17506-538 BACKREST ASSEMBLYBACKREST ASSEMBLY
-
27506-213 BRACKET, SEAT BELT RETRACTORBRACKET, SEAT BELT RETRACTOR
-
35506-889 BELT, SEATBELT, SEAT
-
45506-892 BELT, SEAT - 3 POINTBELT, SEAT - 3 POINT
-
51423-182 SCREW, CAPSCREW, CAP
-
61423-184 NUT, LOCKNUT, LOCK
-
78050-252 WASHERWASHER
-
88408-820 SCREW, CAPSCREW, CAP
-
95506-616 SEAT, BENCH - BOTTOM - W/FOIL (INC.10-12)SEAT, BENCH - BOTTOM - W/FOIL (INC.10-12)
-
110412-776 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
121423-066 ...GROMMET...GROMMET
-
130423-609 SCREW, MACHINESCREW, MACHINE
-
145506-384 BASE, SEAT (INC. 15-17)BASE, SEAT (INC. 15-17)
-
150412-779 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
160412-780 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
170412-781 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
180623-600 PLUGPLUG
-
192416-491 COVER, ACCESSCOVER, ACCESS
-
201623-156 GROMMETGROMMET
-
212406-915 SEAL, CARGO BOXSEAL, CARGO BOX
-
221423-286 STUD, LATCH - SEATSTUD, LATCH - SEAT
-
230423-073 WASHERWASHER
-
248424-002 NUTNUT
-
257506-166 BRACKET, LOWER SEAT MOUNTBRACKET, LOWER SEAT MOUNT
-
260423-538 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
